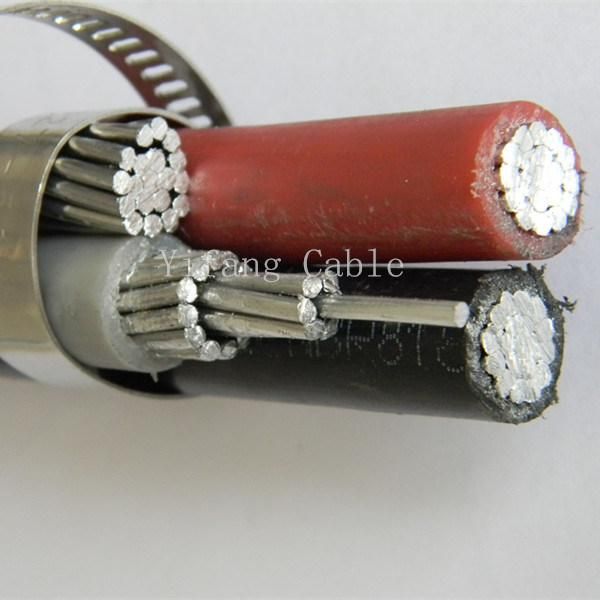

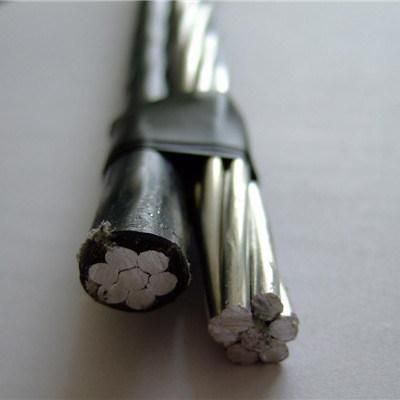

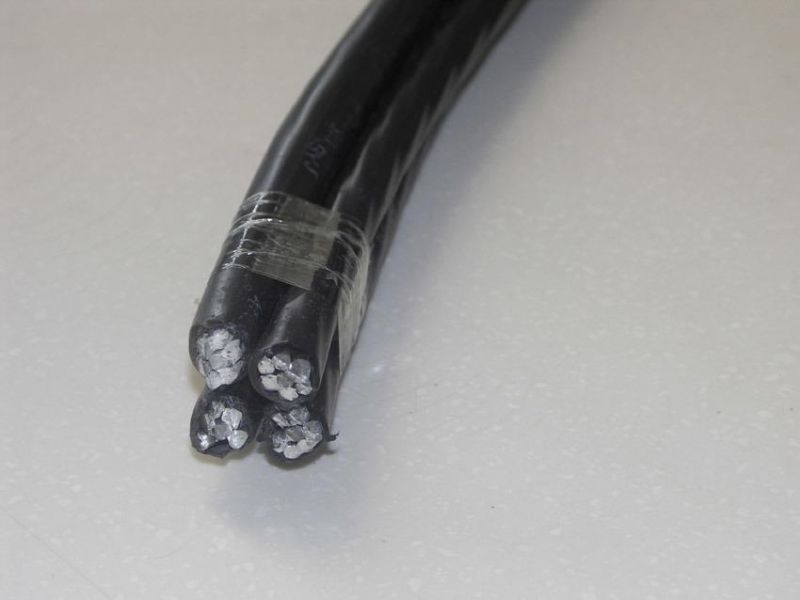

Torsade Cable 3X70+54.6+2X16mm2 Aluminum Overhead Cable ABC Conductor Preassemble Cable
YIFANG ELECTRIC GROUP INC.- Application：Construction, Overhead, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：None
- Material Shape：Round Wire
Base Info
- Model NO.：JKLY 3X70+54.6+2x16mm2
- Wire Core Material：Aluminum Wire
- Certification：ISO, CCC, CE, UL
- Model：Jkly
- Brand：Yifang Cable
- Rated Voltage：0.6,1kv
- Conductor：Aluminum
- Sheath Color：Black
- Cores：3X70+54.6+2X16mm2
- Insulation Thickness：1.8mm(Phase)
- Country Exported：West Africa:Togo,Cote Diva,All Over The World
- Standard：NFC 33 209 IEC 60502-2
- Transport Package：Wooden Steel Drum
- Specification：2.2m drum
- Trademark：Yifang Cable
- Origin：China
- HS Code：8544601200
- Production Capacity：300km Per Month
Description
kV Essai de type: 10 10 Essai de série : 4 4 Tension de tenue au choc 1,2 / 50 μs kV 20 20 Section mm2 3x70 + 54,6 + 2x16 3x70 + 54,6 + 2x16 Charge de rupture neutre porteur daN 1660 1660 Résistance linéique maxi à 20 °C Ω/km 0,443 0,443 Intensité régime permanent air libre 30 °C A 213 213 Température max. âme °C 70 90(70 si exigence acheteur) Diamètre approximatif de la torsade mm 38,0 38.0 Masse approximatif Kg/km 1100 1100 Chute de tension cos (phi) = 0.8 V/A/km 0,87 0,56 (0,87 si exigence acheteur) Couleur isolation - Noir et lisse Noir et lisse
Our company
Yifang Electric group mainly specialized in wire&cables,including designment,production and sale.
Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.
Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.
Our certificate
FAQ
1.Q:Are you a factory or trading company?
A: Manufacturing base in Henan ,China, with more than 500 workers.
2.Q:How can I visit there?
A: Sure,If you need,we will arrange the driver to pick you up.
3.Q:How can I get some samples?
A: Contact me on below,Determin sample and address for shipping.
4.Q:Have you ever supplied cables to our country?
A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.
5.Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement.
6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.
7.Q:How long is your delivery time?
A: According to your order's quantity.Usually our lead time is 3 - 20 working days.
