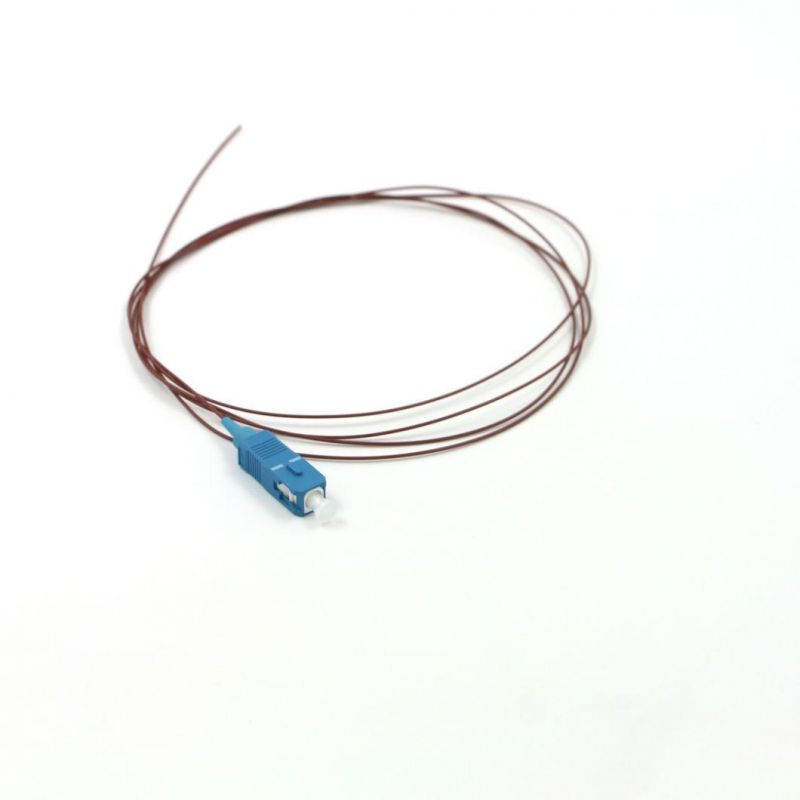

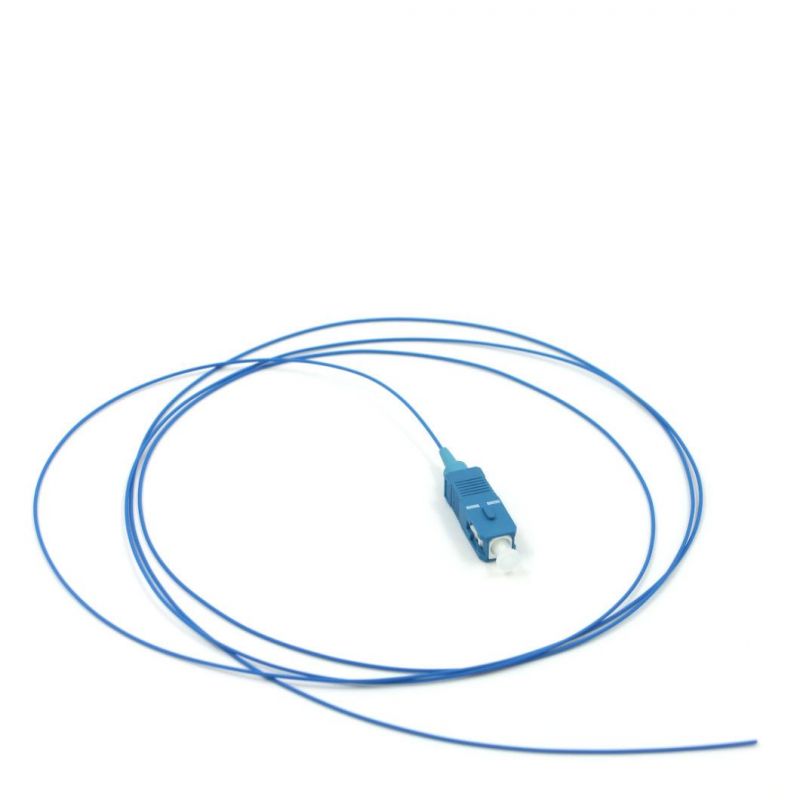

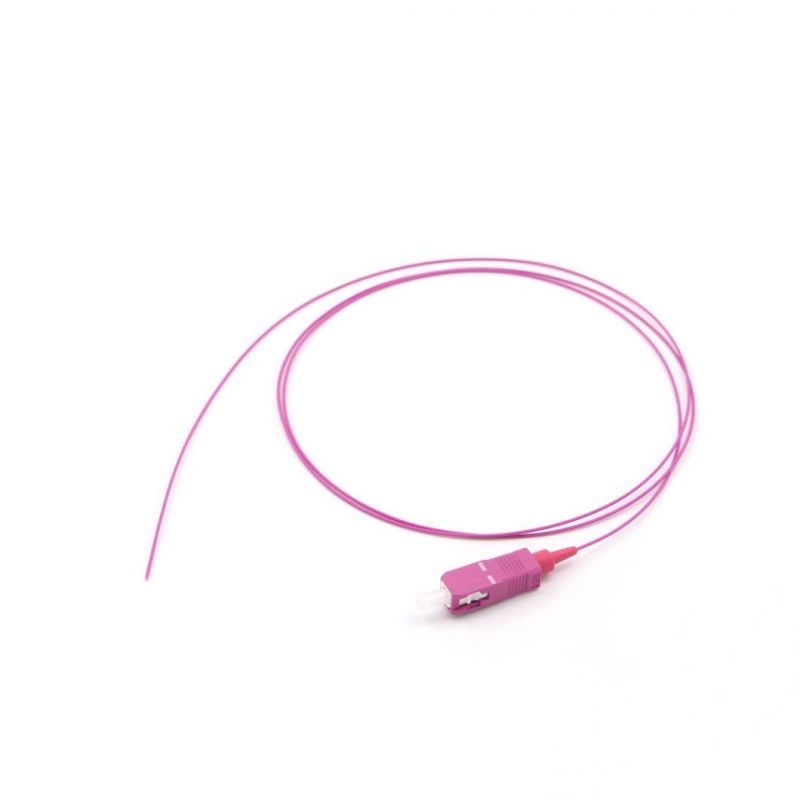

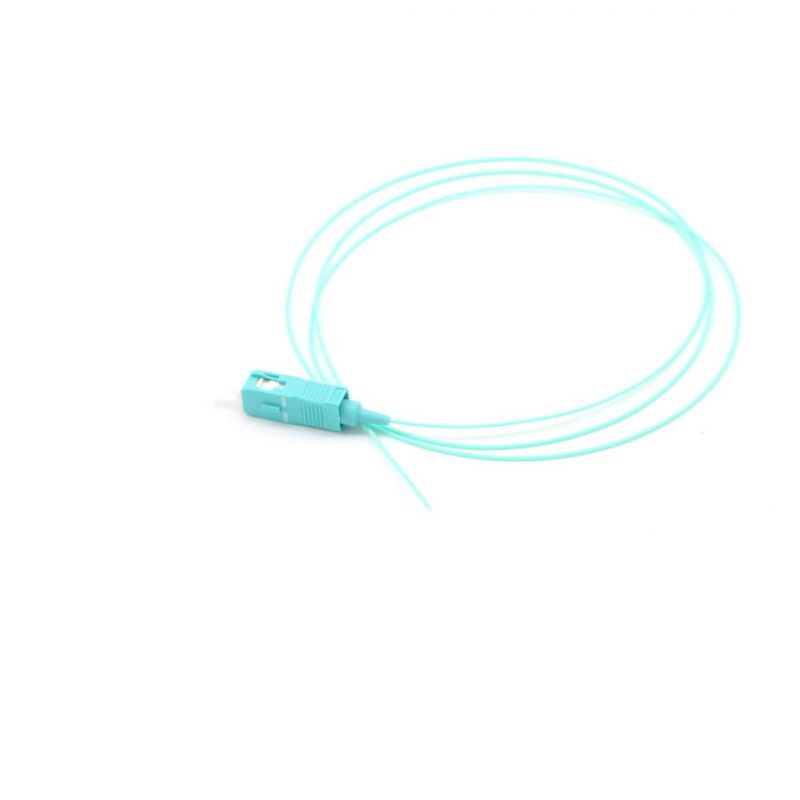

Sc Fiber Optic Cable Pigtails with Singlemode

Shenzhen KOC Communication Co., Ltd.
  • Application：Communication
  • Type：Single-mode Fiber
  • Connection Structure：Sc, LC, FC, St,
  • Material Shape：Round Wire
  • Allowed Lateral Pressure：100(N,100mm)<1000(N,100mm)
  • Allowed Tensile Strength：100N<1000N

Base Info

  • Model NO.：SC
  • Core：Single Core, Double Core,Multicore
  • Certification：RoHS, CE, ISO9001
  • Brand：OEM
  • Sheath Material：LSZH
  • Cable Diameter Szie：0.9mm,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm
  • Cable Jacket Color：Blue,Orange,Yellow,Aqua, Magenta,Black, Gray,Pink
  • Cable Jacket Material：LSZH,PVC, Ofnr, Ofnp, PE, Rised
  • Connector Housing Color：Blue,Orange,Yellow,Aqua, Magenta,Black, Gray,Pink
  • Cable Length：1m, 2m, or Customization
  • Label：Sticker, Paper
  • Transport Package：Zipper Bag, Carton Box
  • Specification：SGS; RoHs
  • Trademark：koc
  • Origin：Made in Shenzhen
  • HS Code：85447000
  • Production Capacity：500000 PCS,Month

Description

 Single modeMultimodeInsertion LossTypical≤0.2dB, Maximum≤0.3dB≤0.25dBReturn Loss≥50 dB (PC)
≥60 dB (APC)≥30 dBRepeatability≤0.1Durability≤0.2 dB typical change, 1000 matingsInterchangeability≤0.2dBTensile strength>70NOperating Temperature-40 to + 85°C


ORDERING OPTIONSConnector ColorBoot (cable) SizeBoot ColorFiber TypeCable numberApplicationLengthBeige0.9mmBeige9/125μm (SM)SimplexPCCustomizedBlue2.0mmBlack50/125μm(MM)DuplexAPC Green3.0mmBlue62.5/125μm(MM)Fan-out (4f)    Green Fan-out (6f)    Gray Fan-out (8f)    Red Fan-out (12f)    White Fan-out (24f)  Sc Fiber Optic Cable Pigtails with SinglemodeSc Fiber Optic Cable Pigtails with SinglemodeSc Fiber Optic Cable Pigtails with Singlemode Sc Fiber Optic Cable Pigtails with SinglemodeSc Fiber Optic Cable Pigtails with SinglemodeSc Fiber Optic Cable Pigtails with Singlemode

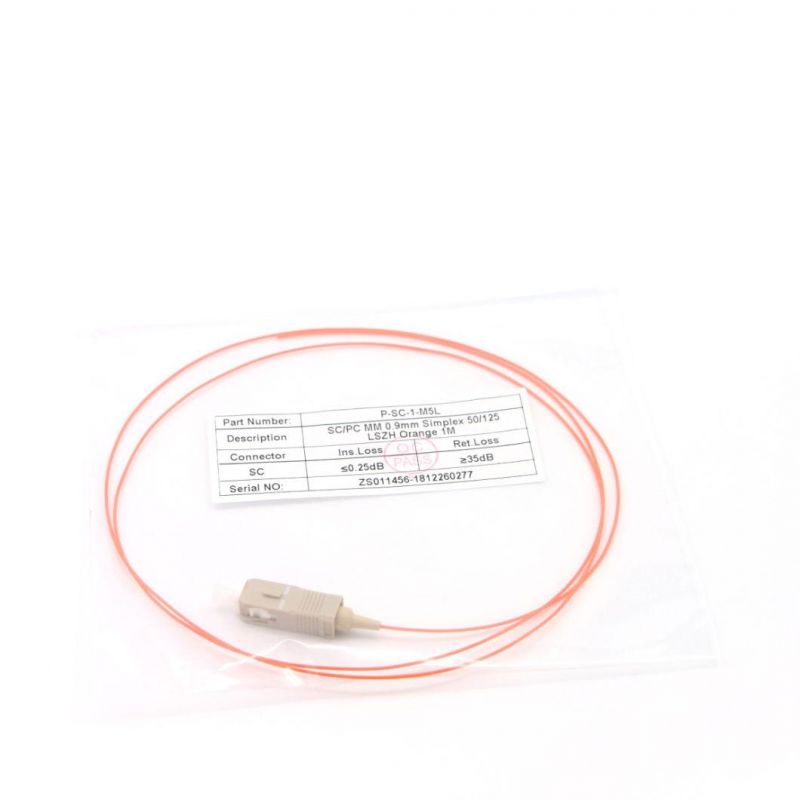

   Note: The price range is for Pigtail  SC/PC Singlemode Simplex 0.9mm  1meter.
