• Model NO.：4*240mm2 Overhead Cable
• Material Shape：Round Wire
• Range of Application：Overhead Power Transmission
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE
• Brand：Hnbf Cable
• Colour：Black or as Per Requirements
• Cores：4 Cores
• Transport Package：Exported Wooden Drum or Rolls
• Specification：ABC Cable 4*240mm2
• Trademark：HNBF Cable
• Origin：China
• HS Code：8544492100
• Production Capacity：900000m,Month

Basic Info.

Model NO. 4*240mm2 Overhead Cable Material Shape Round Wire Range of Application Overhead Power Transmission Certification ISO9001, CE, UL, CCC, RoHS, VDE Brand Hnbf Cable Colour Black or as Per Requirements Cores 4 Cores Transport Package Exported Wooden Drum or Rolls Specification ABC Cable 4*240mm2 Trademark HNBF Cable Origin China HS Code 8544492100 Production Capacity 900000m/Month

Product Description

Product Discription

Application

The cables are designed for aerial power lines and room-entrance wires with U0/U up to and including 0.6/1kV, 6/10kV.

Aerial Bundle Cable(ABC Cable) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system. It provides higher level safety and reliability, lower power losses and ultimate system economy by reducing installation , maintenance and operative cost.

Standards

ASTM, IEC, NFC, GB/T

Construction

Conductor: Aluminum conductor, round stranded conpressed(RM).
Insulation: XLPE or PE or PVC

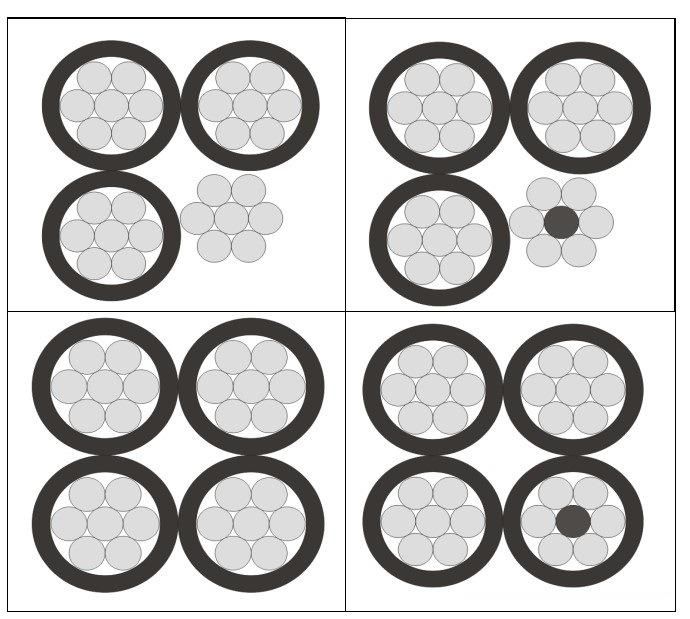

Core Number & Cross section area
Including 1, 2, 3, 4, 5, 1+1, 2+1, 3+1, 4+1 cores and so on, from 10mm2 to 240mm2 as follows, 10mm2 16mm2 25mm2 35mm2 50mm2 70mm2 95mm2 120mm2 150mm2 185mm2 240m2.

Part of Technical Data:

Goods Description	Specification mm2	Conductor No./mm	Insulation Thickness mm	Cable Overall Diameter mm	20ºC Conductor D.C. Resistance Ω/km	Cable Weight kg/km
ABC Cable	4x10	7/1.35	1.0	12.9	3.08	152
Aluminum Cable	4x16	7/1.71	1.2	16.1	1.91	241
Overhead Cable	4x25	7/2.16	1.2	19.1	1.20	352
Twisted Cable	4x35mm2	7/2.55	1.4	22.3	0.868	486
Service Drop Cable	4x50	7/3.00	1.4	25.6	0.641	652
Aerial Bundled Cable	4x70	19/2.16	1.4	29.6	0.433	898
XLPE Cable	4x95	19/2.55	1.6	34.3	0.320	1219
Power Cable	4x120	37/2.05	1.6	37.9	0.253	1506
0.6/1kV Cable	4x150	37/2.28	1.8	42.3	0.206	1880
Low Voltage Cable	4x185	37/2.56	2.0	47.2	0.164	2324
Electrical Wire	4x240	37/2.95	2.2	53.4	0.125	3028

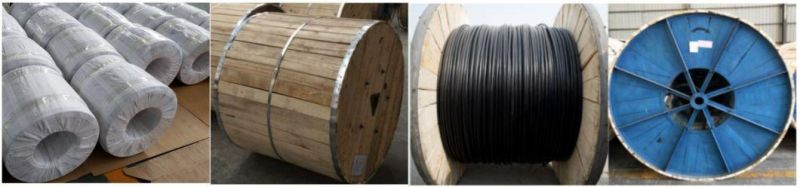

Packing and Delivery


Woven Bag wrapping(soft packing/rolls) size:
Advantages: low price, light weight and space saving.
Disadvantages: workers are inconvenient to use (cannot roll), production is slightly troublesome, and labor costs are slightly higher.

Wooden Drum Packing Details: The wooden drum will be fumigated. In order to prevent rolling, it will also be reinforced with environmentally friendly materials. This packaging method is easy to construct, easy to install, easy to produce, but slightly more expensive.

Wooden Steel Drum:  Packing Details: This wooden-steel drum is suitable for cables with an outer diameter of more than 30mm. Packing Details: Usually use international wooden drums and rolls, can also as buyer's requirements. The Package size will according to the cable's size.

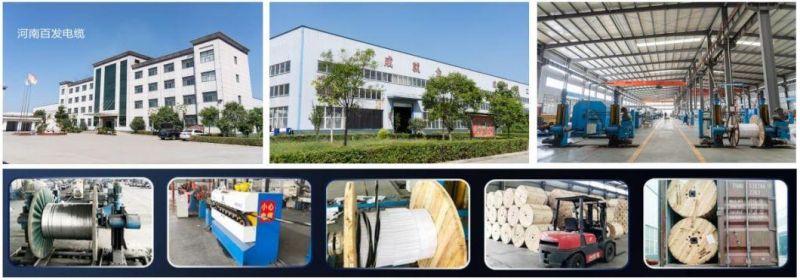

Our Factory

The annual production capacity is 1,450,000.00 km cables and wires. In our factory, there are above 300 staffs totally including workers and supervisors, besides, we also have our own rights for importation and exportation. Our main products are Bare Conductor(ACSR, Steel Wire, AAAC, AAC), ABC Cable(aerial bundled cable, Overhead Cable, Service Drop Cable), Electrical Wire, and Power Cable.



Certifications

Our company has passed ISO 9000 quality management system certification, ISO 9000 occupational health and safety management system certification, ISO 9000 environmental management system certification, CCC China National Compulsory Product Certification, CE Certificate of Conformity, and Rohs.




International Fair
We participate in the Canton Fair and foreign exhibitions every year. Our products sales network has covered more than 20 provinces and municipalities in China. Most of products are sold to many countries for overseas marketing including the following areas like South America, North America, Latin America, South Asia, Southeast Asia, Africa, and Europe etc.



Why Choose US?

Our advantages
* Advanced production and testing equipment.
* Strict controlling of raw materials.
* Raw material origin, factory direct sales, competitive price.
* Inquiry and consulting support.
* Free sample and sample testing support.
* Fast delivery.
* Good pre-sale and after-sale services.
