China Factory Price Aluminum, Aluminum Alloy AAC AAAC ACSR Power Transmission Line Bare Conductor
People's Cable Group Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminum Alloy
- Sheath Material：Bare
- Insulation Material：Bare
Base Info
- Model NO.：Bare conductor
- Material Shape：Round Wire
- Range of Application：Overhead
- Certification：ISO9001, CCC, SGS BV
- Brand：Rmjt
- OEM：Yes
- Produceing Experience：More Than 30years
- Transport Package：Export Drum
- Specification：Oak Mulberry Totara
- Trademark：RMJT
- Origin：Henan
- HS Code：761490000
- Production Capacity：3000km,Week
Description
Max.D.C. Resistance of Conductor at 20ºCNumber of Wires Diameter of Wires Diameter of Conductor Approx. Weight Rated Strength Number of Wires Diameter of Wires Diameter of Conductor Approx. Weight Rated Strength mm² - mm mm kg/km daN - mm mm kg/km daN Ω/km 16 7 1.83 5.49 50.4 5.43 7 1.84 5.52 50.8 6.04 1.7896 25 7 2.29 6.87 78.7 8.49 7 2.30 6.9 79.5 9.44 1.1453 40 7 2.89 8.67 125.9 13.58 7 2.91 8.73 127.1 15.1 0.7158 63 7 3.63 10.8 198.3 21.39 7 3.65 10.95 200.2 23.06 0.4545 100 19 2.78 13.9 316.3 33.95 19 2.79 13.95 319.3 37.76 0.2877 125 19 3.10 15.5 395.4 42.44 19 3.12 15.6 399.2 47.20 0.2302 160 19 3.51 17.55 506.1 54.32 19 3.53 17.65 511.0 58.56 0.1798 200 19 3.93 19.65 623.7 67.91 19 3.95 19.75 638.7 73.20 0.1439 250 19 4.39 21.95 790.8 84.68 19 4.41 22.05 798.4 91.50 0.1151 315 37 3.53 24.71 998.9 106.95 37 3.55 24.85 1008.4 115.29 0.0916 400 37 3.98 27.86 1268.4 135.81 37 4.0 28 1280.5 146.4o 0.0721 450 37 4.22 29.54 1426.9 152.79 37 4.24 29.68 1440.5 164.70 0.0641 500 37 4.45 31.15 1585.5 169.76 37 4.47 31.29 1600.6 183.oo 0.0577 560 61 3.67 33.03 1778.4 190.14 61 3.69 33.21 1795.3 204.95 0.0516 630 61 3.89 35.01 2000.7 213.90 61 3.91 35.19 2019.8 230.58 0.0458 710 61 4.13 37.17 2254.8 241.07 61 4.15 37.35 2276.2 259.86 0.0407 800 61 4.38 39.42 2540.6 271.62 61 4.4 39.6 2564.8 282.80 0.0361 900 91 3.81 41.91 2861.1 305.58 91 3.83 42.13 2888.3 329.40 0.0321 1000 91 4.01 44.11 3179.0 339.53 91 4.03 44.33 3209.3 366.00 0.0289 1120 91 4.25 46.75 3560.5 380.27 91 4.27 46.97 3594.4 409.92 0 0258 1250 91 4.49 49.39 3973.7 424.41 - - - -
BS EN50183
Din 48201

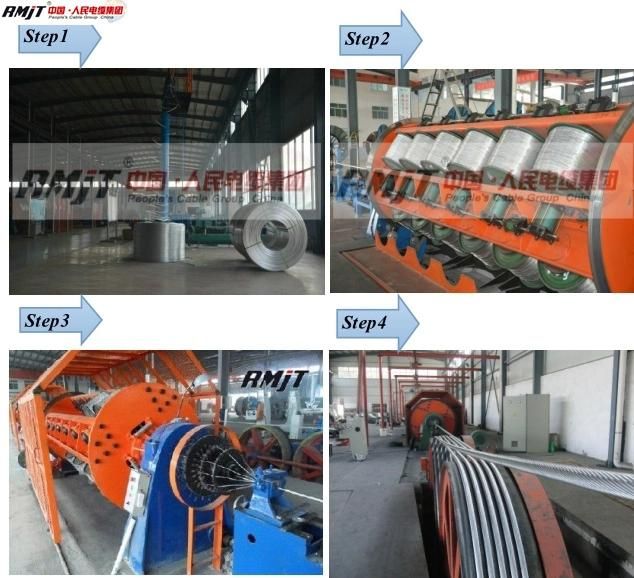

Production process
Package
Package in Export Wooden or Steel Wooden or Steel Drums

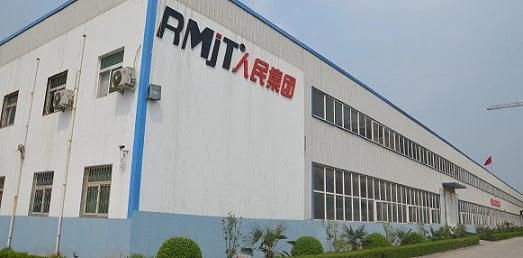

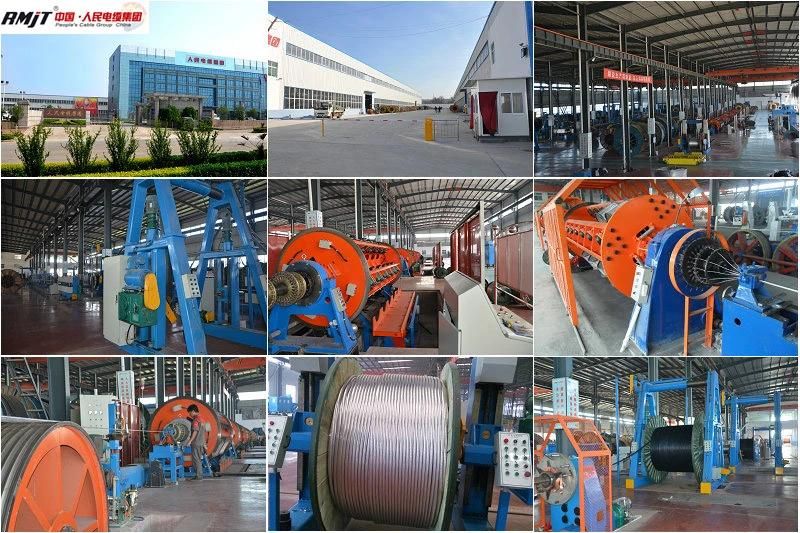

About us
We were founded in 2007, located in Gongyi Henan,China. We have 2 factories (Headquarters Factory-produce insulated cables and Zhulin branch-produce bare conductors), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
Contact us
BS EN50183
| Code Name | Calculated Cross Section | No..Dia.of Wires | Overall Diameter | Weight | Rated Strength |
| mm² | No./mm | mm | kg/km | kN | |
| Box | 18.8 | 7/1.85 | 5.55 | 51.4 | 5.55 |
| Acacia | 23.8 | 7/2.08 | 6.24 | 64.9 | 7.02 |
| Almond | 30.1 | 7/2.34 | 7.02 | 82.2 | 8.88 |
| Cedar | 35.5 | 7/2.54 | 7.62 | 96.8 | 10.46 |
| Deodar | 42.2 | 7/2.77 | 8.31 | 115.2 | 12.44 |
| Fir | 47.8 | 7/2.95 | 8.85 | 130.6 | 14.11 |
| Hazel | 59.9 | 7/3.30 | 9.90 | 163.4 | 17.66 |
| Pine | 71.6 | 7/3.61 | 10.8 | 195.6 | 21.14 |
| Holly | 84.1 | 7/3.91 | 11.7 | 229.5 | 24.79 |
| Willow | 89.7 | 7/4.04 | 12.1 | 245,0 | 26.47 |
| Oak | 118.9 | 7/4.65 | 14.0 | 324.5 | 35.07 |
| Mulberry | 150.9 | 19/3.18 | 15.9 | 414.3 | 44.52 |
| Ash | 180.7 | 19/3.48 | 17.4 | 496.1 | 53.31 |
| Elm | 211.0 | 19/3.76 | 18.8 | 579.2 | 62.24 |
| Poplar | 239.4 | 37/2.87 | 20.1 | 659.4 | 70.61 |
| Sycamore | 303.2 | 37/3.23 | 22.6 | 835.2 | 89.40 |
| Upas | 362.1 | 37/3.53 | 24.7 | 997.5 | 106.82 |
| Yew | 479.0 | 37/4.06 | 28.4 | 1319.6 | 141.31 |
| Totara | 498.1 | 37/4.14 | 29.0 | 1372.1 | 146.93 |
| Rubus | 586.9 | 61/3.50 | 31.5 | 1622.0 | 173.13 |
| Sorbus | 659.4 | 61/3.71 | 33.4 | 1822.5 | 194.53 |
| Araucaria | 821.1 | 61/4.14 | 37.3 | 2269.4 | 242.24 |
| Redwood | 996.2 | 61/4.56 | 41.0 | 2753.2 | 293.88 |
Din 48201
| Code number | Calculated area | Number of wires | Diameter of wire | Overall diameter of conductor | Linear mass | Rated tensile strength | Max. DC resistance at 20ºC |
| mm2 | mm2 | mm | mm | kg/km | daN | Ω/km | |
| 16 | 15.89 | 7 | 1.70 | 5.1 | 43 | 444 | 2.0910 |
| 25 | 24.25 | 7 | 2.10 | 6.3 | 66 | 677 | 1.3703 |
| 35 | 34.36 | 7 | 2.50 | 7.5 | 94 | 960 | 0.9669 |
| 50 | 49.48 | 7 | 3.00 | 9.0 | 135 | 1382 | 0.6714 |
| 50 | 48.35 | 19 | 1.80 | 9.0 | 133 | 1350 | 0.6905 |
| 70 | 65.81 | 19 | 2.10 | 10.5 | 181 | 1838 | 0.5073 |
| 95 | 93.27 | 19 | 2.50 | 12.5 | 256 | 2605 | 0.3579 |
| 120 | 116.99 | 19 | 2.80 | 14.0 | 322 | 3268 | 0.2854 |
| 150 | 147.11 | 37 | 2.25 | 15.8 | 406 | 4109 | 0.2274 |
| 185 | 181.62 | 37 | 2.50 | 17.5 | 500 | 5073 | 0.1842 |
| 240 | 242.54 | 61 | 2.25 | 20.3 | 670 | 6774 | 0.1383 |
| 300 | 299.43 | 61 | 2.50 | 22.5 | 827 | 8363 | 0.1120 |
| 400 | 400.14 | 61 | 2.89 | 26.0 | 1104 | 11176 | 0.0838 |
| 500 | 499.63 | 61 | 3.23 | 29.1 | 1379 | 13960 | 0.06709 |
| 625 | 626.20 | 91 | 2.96 | 32.6 | 1732 | 17490 | 0.0540 |
| 800 | 802.09 | 91 | 3.35 | 36.9 | 2218 | 22402 | 0.0418 |
| 1000 | 999.71 | 91 | 3.74 | 41.1 | 2767 | 27922 | 0.0335 |
Production process
Package
Package in Export Wooden or Steel Wooden or Steel Drums
