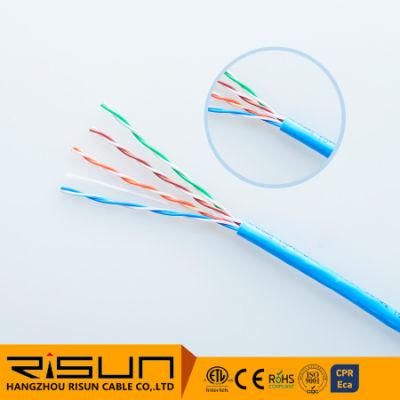

• Model NO.：UTP CAT6
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, ETL SGS CPR
• Brand：Risun or OEM
• Color：as Request
• Trademark：Risun or OEM
• Origin：China
• HS Code：8544491100
• Production Capacity：20000 Boxes , Month

Elongation≥125 %Temperature Range-30 up to +50 °CTensile Strength≥10 MPa



Electrical Properties:

Conductor Resistance≤7.5 Ω/100mResistance Unbalance≤ 2%Insulation Resistance≥5000 MΩ·KMImpedance100±15 ohmSpark Test2000VVelocity of Propagation69%



Technical Performance:

   Frequency         Attenuation        RL    Next       PS Next       (MHz)          (≤dB/100m)       (≥dB)     (≥dB)          (≥dB)           4               3.8       23.0     66.3         63.3           8               5.3       24.5     61.8         58.8         10               6.0       25.0     60.3         57.3         16               7.6       25.0     57.2         54.2         20               8.5       25.0     55.8         52.8         25               9.5       24.3     54.3         51.3       31.25              10.7       23.6     52.9         49.9        62.5              15.4       21.5     48.4         45.4        100              19.8       20.1     45.3         42.3        200               29.0       18.0     40.8          37.8        250               32.8       17.3     39.3          36.3



RISUN has it's own style of carton artwork. A carton factory support us to supply the most suitable carton for you. Your brand and artwork is also available.

WELCOME TO RISUN

 Our Tenet: If we can not be the best, we be the most suitable.
