0.6/1kv Aluminum Core PE Insulation Electrical Overhead Cable
HENAN BAOFENG CABLE CO., LTD.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminum
- Sheath Material：None
- Insulation Material：XLPE
Base Info
- Model NO.：ABC CABLE
- Material Shape：Round Wire
- Range of Application：Overhead Cable
- Certification：ISO9001, CE, CCC, RoHS
- Brand：Hnbf Cable
- Colour：Black
- Rated Voltage：0.6,1kv, 10kv, 11kv
- Standard：IEC, ASTM, BS, DIN, GB,T etc
- Operating Temperature Range：75°c for PE or 90°c for XLPE
- Number of Cores：Quadruplex Service Drop
- Class of Conductor：Class 2
- Insulation：XLPE,PE
- Sample：Free
- Transport Package：Wooden,Steel Drum
- Specification：10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 1
- Trademark：HNBF Cable
- Origin：China Henan
- HS Code：8544492100
- Production Capacity：500 Kilometer,Kilometers Per Month
Description
ABC
CABLE
No. of core
Cross-section mm2
1, 2, 4, 4+2
1+k, 2+k, 3+k
1+k+16, 2+k+16, 3+k+16
10-185
Types and Applications of XLPE insulated abc cable (service drop)
Duplex Service Drop To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75 maximum.
Triplex Service Drop To supply power from the utility`s lines to the consumer`s weather head. For service at 600 volts or less (phase to phase) at a conductor temperature of 75 maximum for PE insulation or 90 maximum for XLPE insulation.
Quadruplex Service Drop Used to supply 3 phase power , usually from a pole-mounted transformer to the use`s service head where connection to the service entrance cable is made . To be used at voltages of 600 volts or less phase to phase and at conductor temperature not to exceed 75 for PE insulated conductors or 90 for XLPE insulated conductors.
XLPE(HDPE)

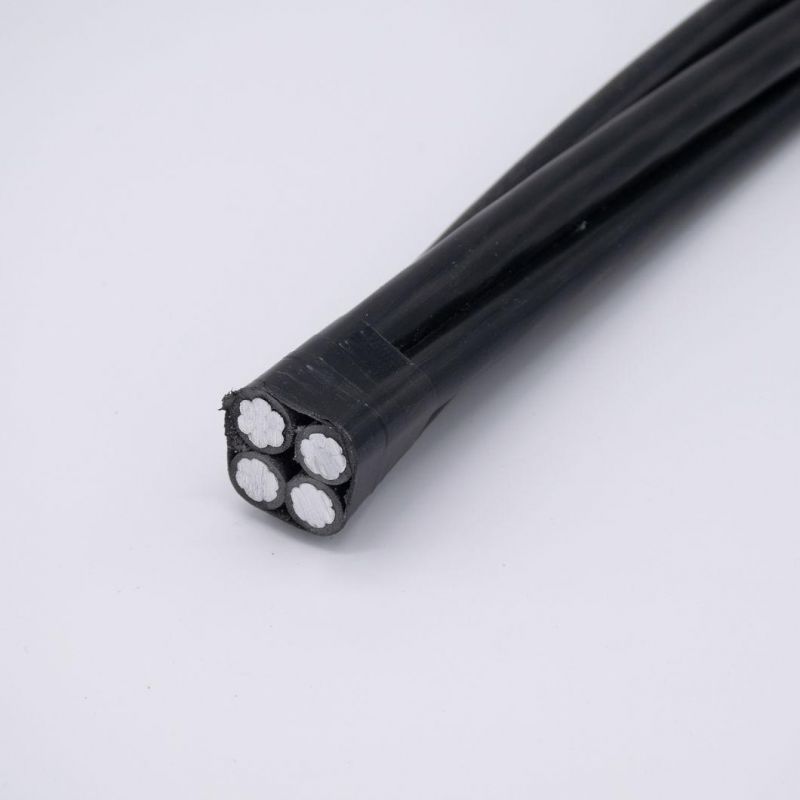

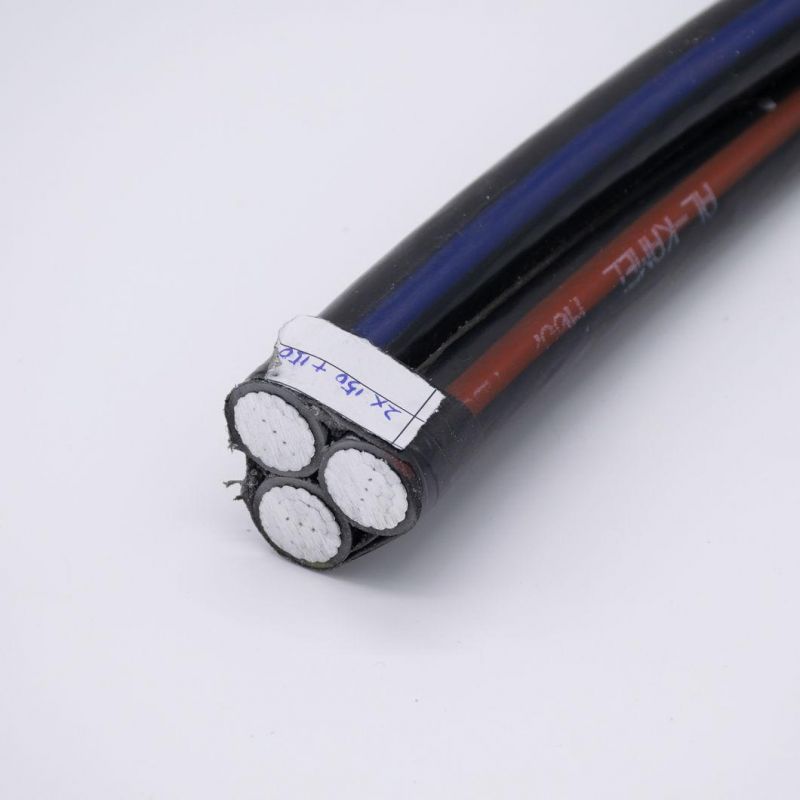

Some pictures of ABC Cable
Packing Details : Wooden Drum, Steel Wooden Drum, Steel Drum, Roll, Wooden Case or your requirement.
Delivery Details : 3-30 days
Our main products:
* ABC Cables including 1kV, 10kV and 35kV with sizes 10sqmm to 240sqmm, 1 to 5 cores.
* Power Cable including low voltage and high voltage up to 35kV and lower.
Our the other products:
*The other cables including AAC, AAAC, ACSR, ACAR, AACSR, ACSR/AW, Guy Wire, Stay Wire, Aluminum Clad Wire, OHGW Wire, Electrical Wire, THW, THHN, THWN etc.
