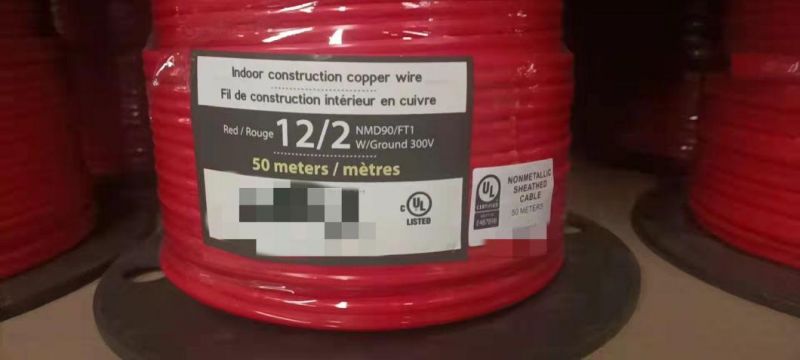

CUL listed copper THHN Core NMD90 building wire
Hebei Huatong Wires & Cables Group Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Heating, Building
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：PVC
Base Info
- Model NO.：NMD90
- Material Shape：Flat Wire
- Range of Application：Conduit or Recognized Raceways for Services
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE
- Brand：Huatong
- Voltage：600V

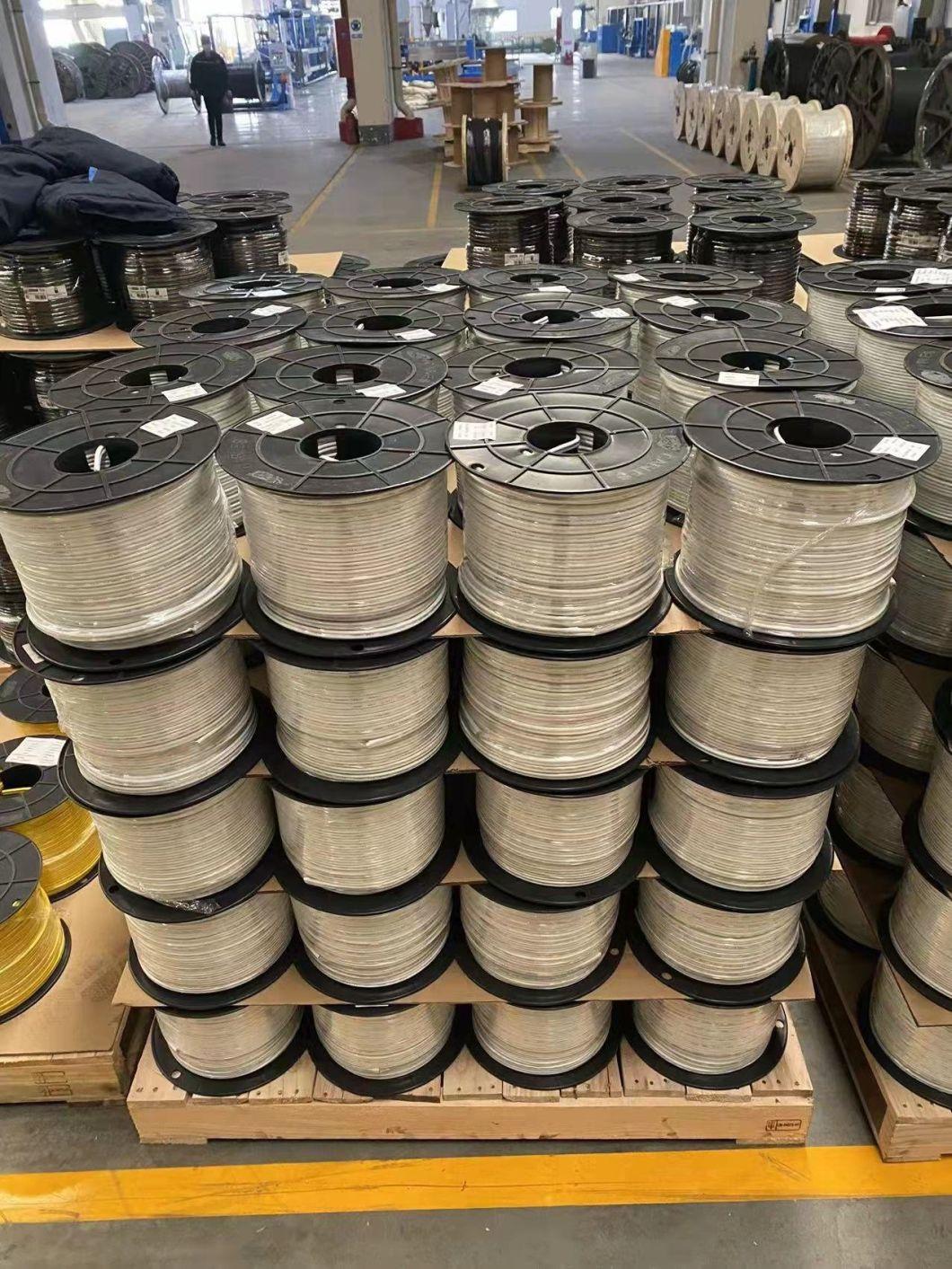

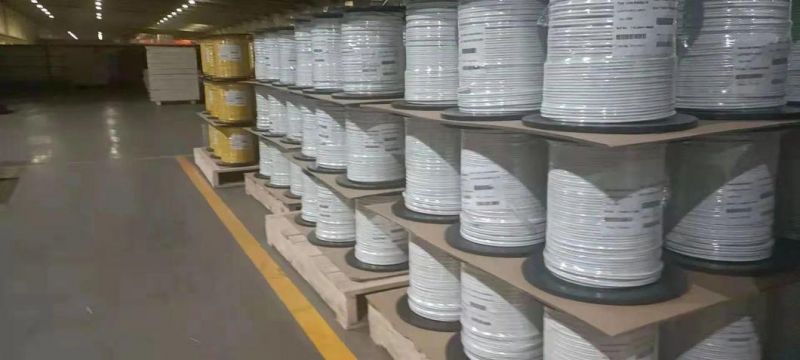

- Transport Package：Coils and Drums
- Specification：14AWG, 12AWG, 10AWG, 8AWG, 6AWG
- Trademark：Renda
- Origin：China
- HS Code：8544492100
- Production Capacity：200000m,Month
Description
Approx. Cable weightAllowable Ampacities 30°C Size
(AWG) Cores Strands Inches mm Size
(AWG) Core Inches mm Inches mm Ib/
1000ft Kg/
km 14 2 1 0.034 0.86 14 1 0.030 0.76 0.388*0.192 9.86*4.88 68 101 25* 14 2 1 0.034 0.86 14 1 0.030 0.76 0.388 x 0.192 9.86 x 4.88 68 101 25* 12 2 1 0.034 0.86 14 1 0.030 0.76 0.422 x 0.209 10.71 x 5.30 86 129 30* 10 2 1 0.034 0.86 12 1 0.030 0.76 0.481 x 0.230 12.21 x 5.84 122 182 40* 8 2 7 0.040 1.02 10 1 0.045 1.14 0.636 x 0.312 16.15 x 7.92 208 310 55 6 2 7 0.051 1.30 8 7 0.045 1.14 0.792 x 0.370 20.12 x 9.40 315 468 75 14 3 1 0.034 0.86 14 1 0.030 0.76 0.345 8.77 86 128 25* 12 3 1 0.034 0.86 14 1 0.030 0.76 0.381 9.69 114 169 30* 10 3 1 0.034 0.86 12 1 0.030 0.76 0.427 10.85 163 242 40* 8 3 7 0.040 1.02 10 1 0.045 1.14 0.570 14.47 275 408 55 6 3 7 0.051 1.30 8 7 0.045 1.14 0.695 17.65 421 627 75 3 3 7 0.051 1.30 6 7 0.080 2.03 0.925 23.48 799 1189 115
