• Model NO.：UL5256 cable
• Material Shape：Round Wire
• Range of Application：Heating
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE, According to The Customers′ Requirement
• Brand：Fongming
• Name：UL5256 Cable
• Ratings：600V, 250deg.C
• Size：24AWG~8AWG
• Color：as Requirements
• Test：Electric Spark Testing
• Certification No：E315207
• Test Voltage：2500V
• Colour：Requirement
• Conductor：Nickel, Nickel Copper
• Insulation：PTFE Tape
• Sheath：Fiberglass
• Transport Package：100m, 200m or 305m Per Roll. Carton Packing.
• Specification：24awg~8awg
• Trademark：FONGMING
• Origin：Yangzhou, Jiangsu Province, China.
• HS Code：8544492100
• Production Capacity：100000000m Per Year

Basic Info.

Model NO. UL5256 cable Material Shape Round Wire Range of Application Heating Certification ISO9001, CE, UL, CCC, RoHS, VDE, According to The Customers′ Requirement Brand Fongming Name UL5256 Cable Ratings 600V, 250deg.C Size 24AWG~8AWG Color as Requirements Test Electric Spark Testing Certification No E315207 Test Voltage 2500V Colour Requirement Conductor Nickel, Nickel Copper Insulation PTFE Tape Sheath Fiberglass Transport Package 100m, 200m or 305m Per Roll. Carton Packing. Specification 24awg~8awg Trademark FONGMING Origin Yangzhou, Jiangsu Province, China. HS Code 8544492100 Production Capacity 100000000m Per Year

Product Description

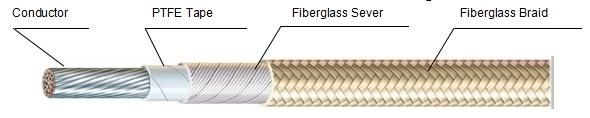

24awg Teflon tape insulated fiberglass braided UL5256 Cable

Description
Name: 24awg Teflon tape insulated fiberglass braided UL5256 Cable
Model No.: AWM5256
Size: 24AWG~8AWG

Feature
Ratings: -60ºC~+250ºC, 600V
Conductor: Nickel Copper, Nickel
Insulation: Teflon tape
Jacket: Fiberglass braid with high temperature finish

Application
Used for internal wiring of household ovens, appliances, lighting fixtures and electronic equipment as high-temperature lead wire.



Specification

Size AWG	Conductor Structure	Insulation Thickness (mm)	Fiberglass Serve Thickness (mm)	Fiberglass Braid Thickness (mm)	Diameter (mm)
24	7/0.2	>=0.18	>=0.10	>=0.28	1.8±0.2
22	7/0.254				1.9±0.2
20	10/0.254				2.1±0.2
18	16/0.254				2.3±0.2
16	26/0.254	>=0.28			2.7±0.2
14	41/0.254				3.0±0.2
12	65/0.254				3.5±0.2
10	103/0.254				4.4±0.2
8	163/0.254				5.4±0.2

Certificates


Transport & Payment



Packing: 305m per roll or spool, carton packing or add wooden pads.
Shipping: tansport bysea or by air.
As the customers requirements.
Port: Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port.


Company Information



Yangzhou Fongming Cable Factory, located in BaoYing, North of YangZhou, which is a historical, cultural and celebrated city in China, is a professional manufacturer producinguniversal and special Cables& Wires including UL High Temperature Wires, Multi-layers Fiber Glass Braided Wires, PTFE trapped Wires, Automobile Sensor Cables, HID Cables, High Voltage Wires for Auto etc.

We have gained certificates for China Compulsory Product Certification(CCC), ISO9001International Quality System Certification , American UL , SGS and CTi. With an experienced and professional team, our products have been covered to many regions in China and mainly exported to European and American Markets.

Factory Size (Sq.meters):	45,000-50,000 square meters
Factory Location:	Industrial Avenue,Industrial Center,Xiaji Town Baoying Country ,Yangzhou Jiangsu,China
Number of Production Lines:	20
Number of R&D Staff:	21 - 30 People
Number of QC Staff:	21 - 30 People
Contract Manufacturing:	OEM Service Offered Design Service Offered Buyer Label Offered

 Hot Sale



FAQ

 1. Why the price is so low?

You are ordering directly from the factory.



2.Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.



3.Can I get some samples?
Yes, we are honored to offer you samples.



4. Can you make the products with my design?

Yes. customization is welcome .
