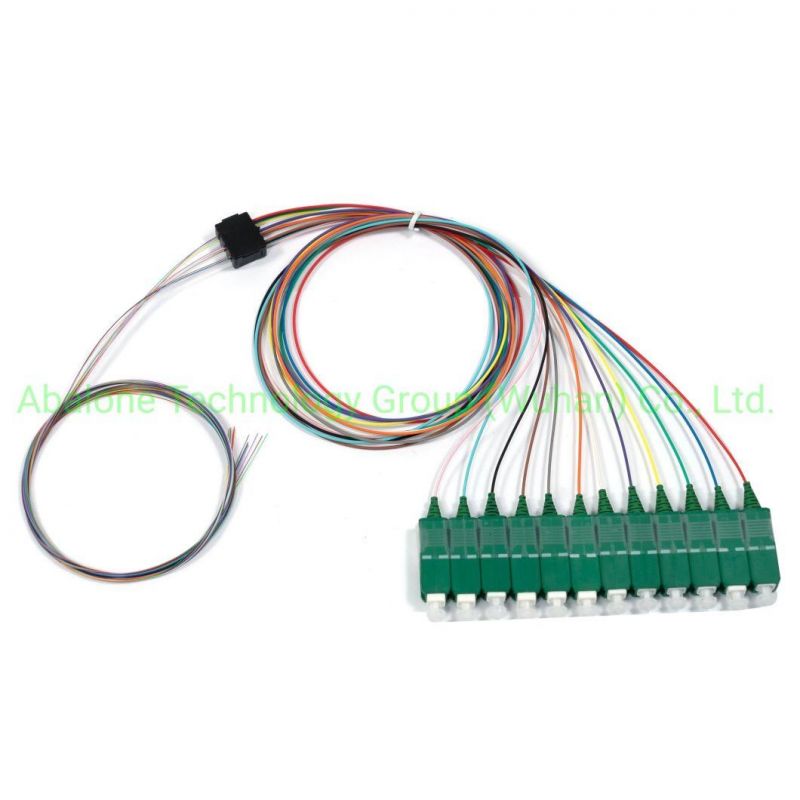

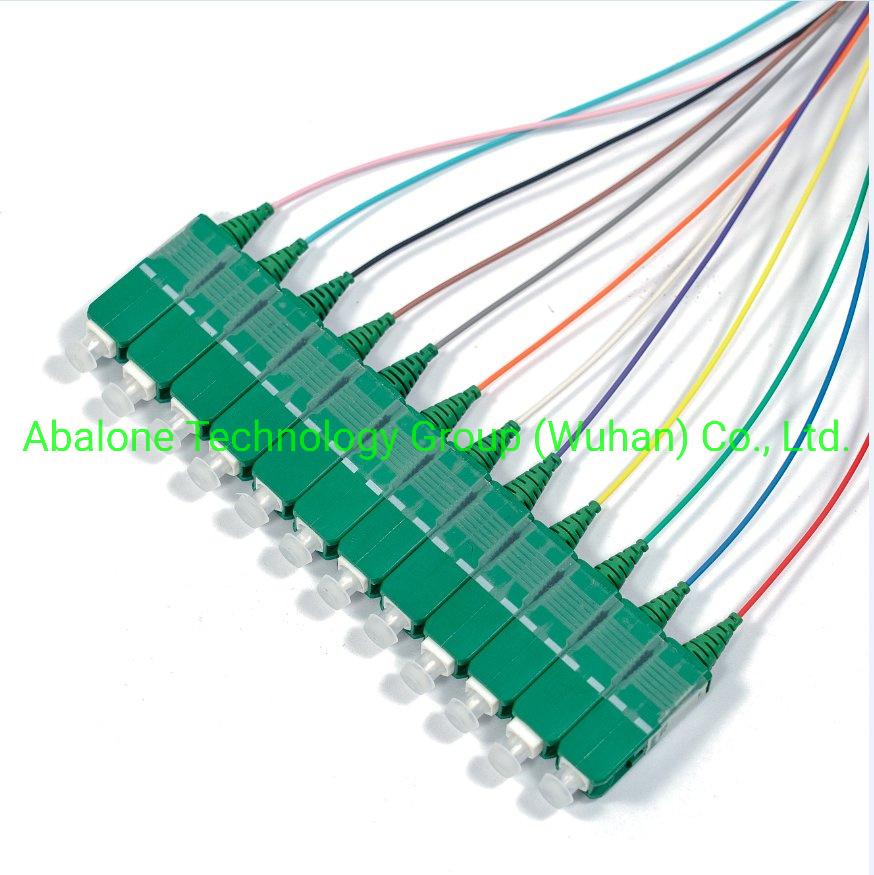

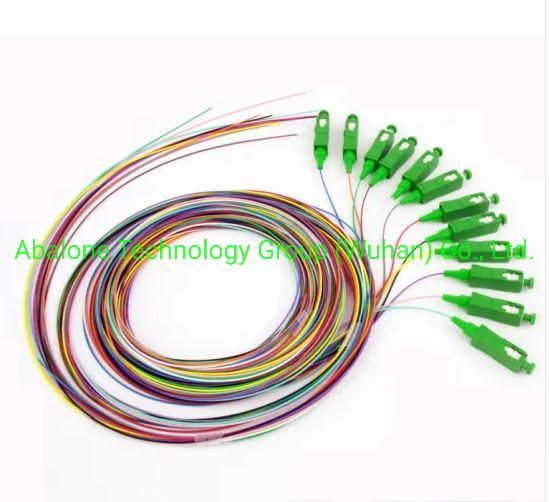

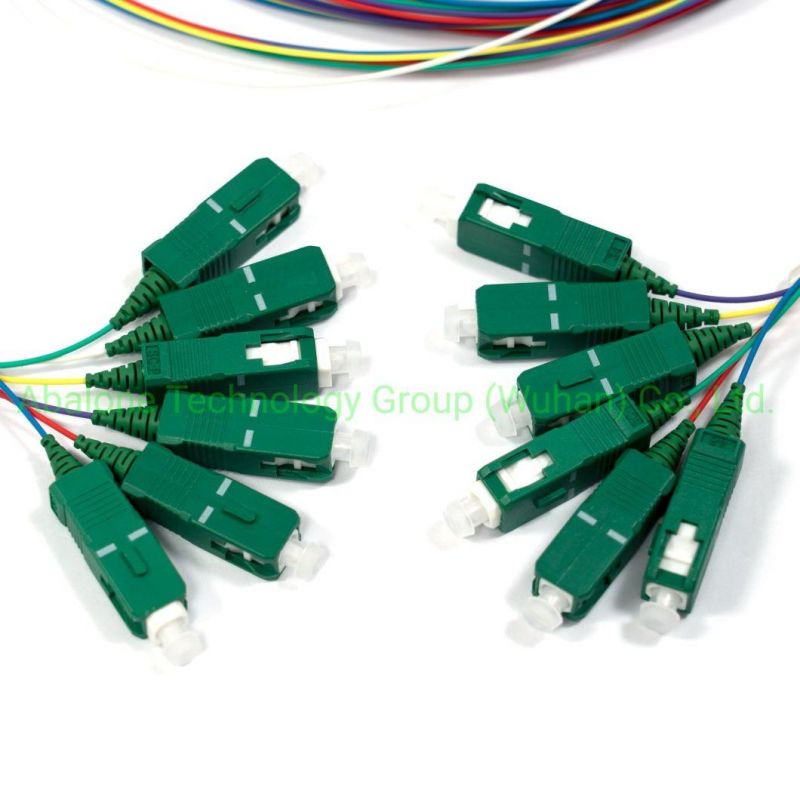

12 Core Fiber Optic Pigtails, Optical Fiber Pigtail Cord, Cord Cable
Abalone Technology Group (Wuhan) Co., Ltd.- Application：Fiber Distribution Frame, Network Equipment, Fiber
- Type：Single-mode Fiber
- Connection Structure：SC
- Material Shape：Strip
- Core：Single Core
- Certification：RoHS, ISO9001
Base Info
- Length：0.5m, 1m, 2m..
- Cable Type：G652D, G657A2, Om1.Om2, Om3, Om4
- Assembly：1 Core, 2 Core...12 Core,Group
- Connector Type：Sc-APC
- Color：12 Colors, Customized
- Delivery Time：15 Days
- Material：LSZH, Aramid Yarn, PVC Fiber, Connector
- Transport Package：Poly Bag,Box,Carton
- Specification：0.5m, 1m.
- Trademark：ABALONE
- Origin：China
- HS Code：8544700000
- Production Capacity：200000PCS,Month
Description
Fiber TypeSM MM Normal Fiber OD 125±0.2um 125±0.2um Connector Type SC,FC,ST, E-2000, LC, MU, DIN MTRJ SC,FC,ST, E-2000, LC, MU MTRJ Insertion loss(Typical) 0.2dB 0.4dB 0.2dB 0.4dB Insertion loss(Max) 0.3dB 0.5dB 0.3dB 0.5dB Return Loss(Typical) PC 50dB 35 - UPC 55dB - - APC 65dB - - Mating Durability(500 C) 0.2dB Temperature Stability 0.3dB Operation Temperature -40°C~+85°C Storage Temperature -40°C~+85°C

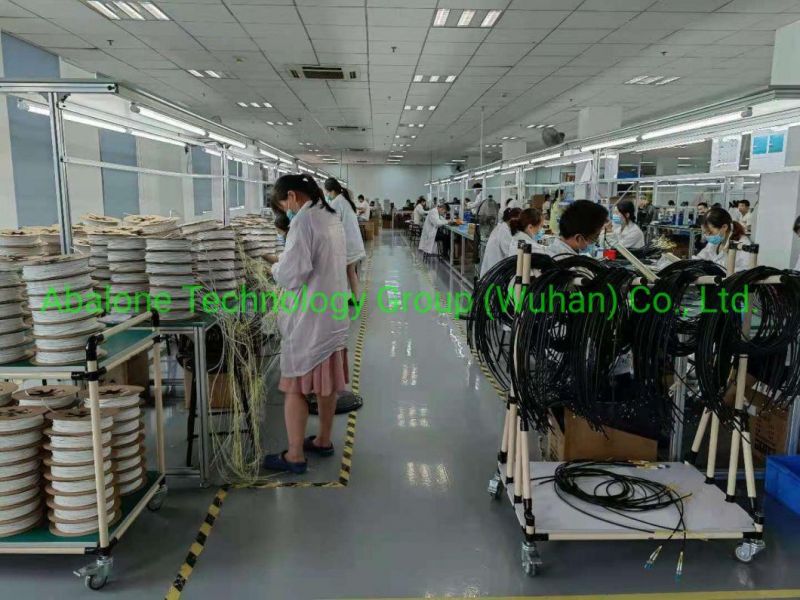

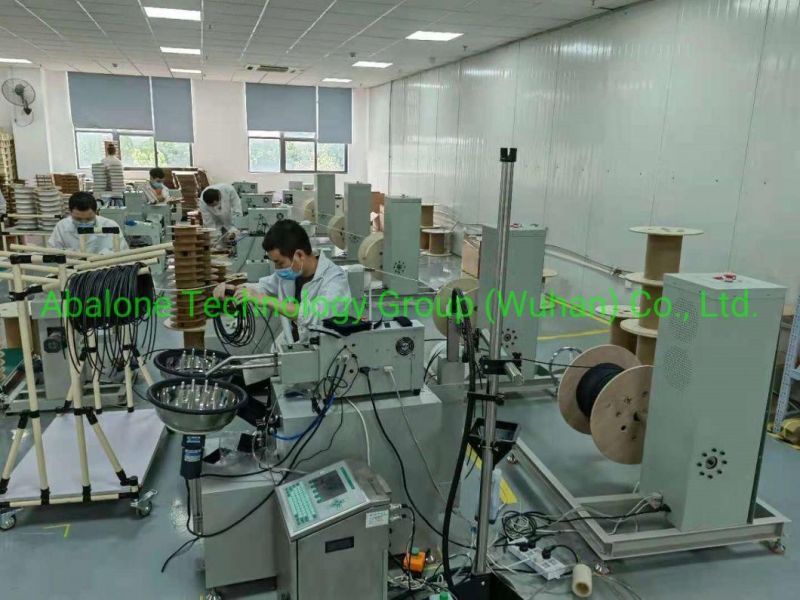

With over 5,000 square factory:
Good and fast shipping service:
FAQ:
Q: Can we get a sample for reference?
A: Yes, as long as the goods are conventional type, and you will be charged sample cost plus related shipping cost. Once you place an order to us, we can return or deduct the sample cost to you.
Q: How to solve the quality problems after sales?
A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days.
Q: What is the lead time?
A: The lead time depends on the quantities ordered, generally within 25-30 days upon the receipt of advance payment.
Q: What is your terms of payment?
A: We accept West Union, T/T, irrevocable L/C at sight. Prefer T/T 30% deposit before production, the balance against copy of B/L.
Q: Can you print our brand on the product?
A: Yes, of course, we also do OEM to print client's brand on the product.
