• Model NO.：NMD90 wire
• Material Shape：Flat Wire
• Range of Application：Indoor, Construction, Building
• Certification：ISO9001, UL, RoHS, cUL Certificate
• Brand：Rneda
• Voltage：300V
• Standard.：cUL719
• Product Name：Nmd90
• Conductor：Copper
• Insulation：PVC
• Sheath：PVC
• Color：Yellow, White
• Size：14,2-6,2
• Temperature Range：-25°c-90°c
• Market：Canada
• Transport Package：Soft Packing, or as Your Request
• Specification：14-2 14-3 12-2 12-3 10-3 10-2 awg
• Trademark：Hebei Huatong Cables
• Origin：China. Hebei. Tangshan
• HS Code：8544492100
• Production Capacity：5000km Per Month

Basic Info.

Model NO. NMD90 wire Material Shape Flat Wire Range of Application Indoor, Construction, Building Certification ISO9001, UL, RoHS, cUL Certificate Brand Rneda Voltage 300V Standard. cUL719 Product Name Nmd90 Conductor Copper Insulation PVC Sheath PVC Color Yellow, White Size 14/2-6/2 Temperature Range -25°c-90°c Market Canada Transport Package Soft Packing, or as Your Request Specification 14-2 14-3 12-2 12-3 10-3 10-2 awg Trademark Hebei Huatong Cables Origin China. Hebei. Tangshan HS Code 8544492100 Production Capacity 5000km Per Month

Product Description

           _{12/2 AWG Solid Copper Cable Nmd90 14/2 Building Wire CUL certificate}
TOP TEN CABLE MANUFACTURER IN CHINA
LARGEST CABLE MANUFACTUER IN NORTH CHINA
ANNUAL EXPORT VOLUME EXCEED 200MILLION USD
WITH UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD'S,GL,NK,KR,ABS PRODUCTS CERTIFICATIONS
WITH TUV TYPE TESTING REPORT
WIDE PRODUCTS RANGE
ISO9001,ISO18001,OHSAS18001 SYSTEM CERTIFICATIONS
CNAS APPROVAL LABROTARY

Applications:
 NMD90 cables may be used for both exposed work in dry locations or concealed work in dry or damp locations.The maximum allowable conductor temperature is 90°C. The minimum recommended installation temperature is -25°C for two-conductor cables and -10°C for three-conductor cables (with suitable handling procedures). Material should be properly stored above 0°C for 24 hours prior to installation. The maximum voltage rating for all intended applications is 300 volts. Consult the Canadian Electrical Code1 for furtherinformation related to applications.Codes / StandardsNMD90 cables meet or exceed the following requirements: CONSTRUCTIONCanada standard C22.2 No. 48 (non-metallic sheathed cable)Canadian Electrical Code1
NMD90 cables are available as two- or three-conductor cables with a bare grounding conductor. It ismanufactured using annealed (soft) copper conductors-compressed standing for stranded conductors; aheat-resistant thermoplastic polyvinyl chloride (PVC) insulation and nylon jacket for the individual conductors with a PVC jacket for the overall construction.

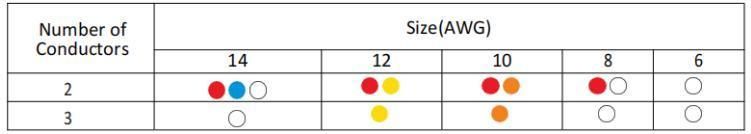

Conductors are white, black and red (for 3 conductor cables). Cable jackets are colour coded by size for quick identification in the Table below

JACKET COLOUR CODE - Typical Application Guide•WHITE - General Residential Wiring•RED - 2 Black and Red conductors - 208V-240V Circuits (no neutral)•ORANGE - No. 10 AWG General Residential Wiring•YELLOW - No. 12 AWG General Residential Wiring•BLUE - No. 14 AWG - 2 black and white conductors - 120V Arc Fault Circuit Interupter Applications CABLE PRINTING12 AWG 2 CDRS BLACK/WHITE NMD90 NYLON 300 VOLTS FT1NMD90 jackets which reduces the coefficient of friction, allowing cables to be installed without externallubricants, resulting in reduced labour and materials costs.PVC / NYLON INSULATIONPVC JACKETGROUND CONDUCTOR COPPER CONDUCTOR PVC / NYLON INSULATIONPVC JACKET
Specification:

Size	Number of Conductors	Bonding Wire Size  (Copper)	Insulation Thickness	Nylon Thicknes	Jacket Thickness	Approximate Overall Dimensions	Approximate Net Cable Weight	Ampacity 30°C Ambient
AWG		AWG	mm	mm	mm	mm	kg/km	A
14	2	14	0.76	0.1	0.76	4.9 x 9.9	99	15
12	2	14	0.76	0.1	0.76	5.3 x 10.7	127	20
10	2	12	0.76	0.1	0.76	5.9 x 12.2	181	30
						(diameter)
14	3	14	0.76	0.1	0.76	8.8	126	15
12	3	14	0.76	0.1	0.76	9.7	166	20
10	3	12	0.76	0.1	0.76	10.9	239	30
8	3	10	0.89	0.12	1.14	14.1	391	45
6	3	8	1.14	0.15	1.14	17.2	601	65
4	3	8	1.14	0.15	1.52	20.3	876	85
3	3	6	1.14	0.15	2.03	22.8	1136	105
2	3	6	1.14	0.15	2.03	24.4	1355	120

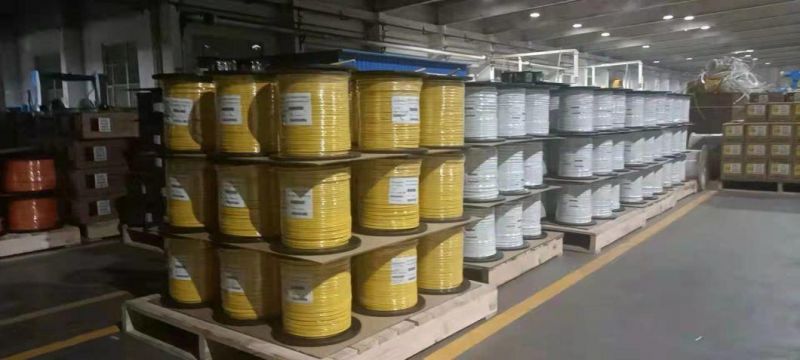

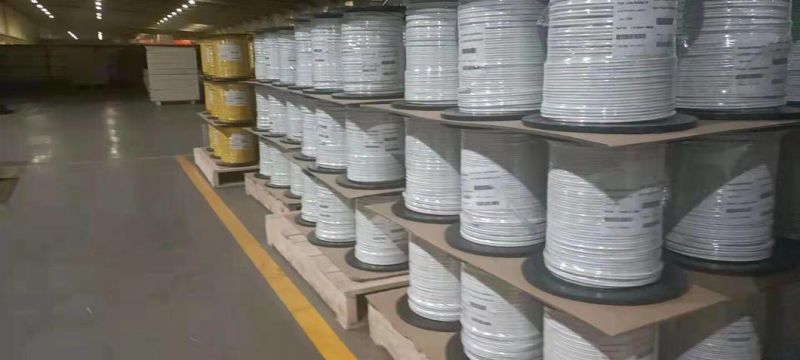

NMD90 Packing picture

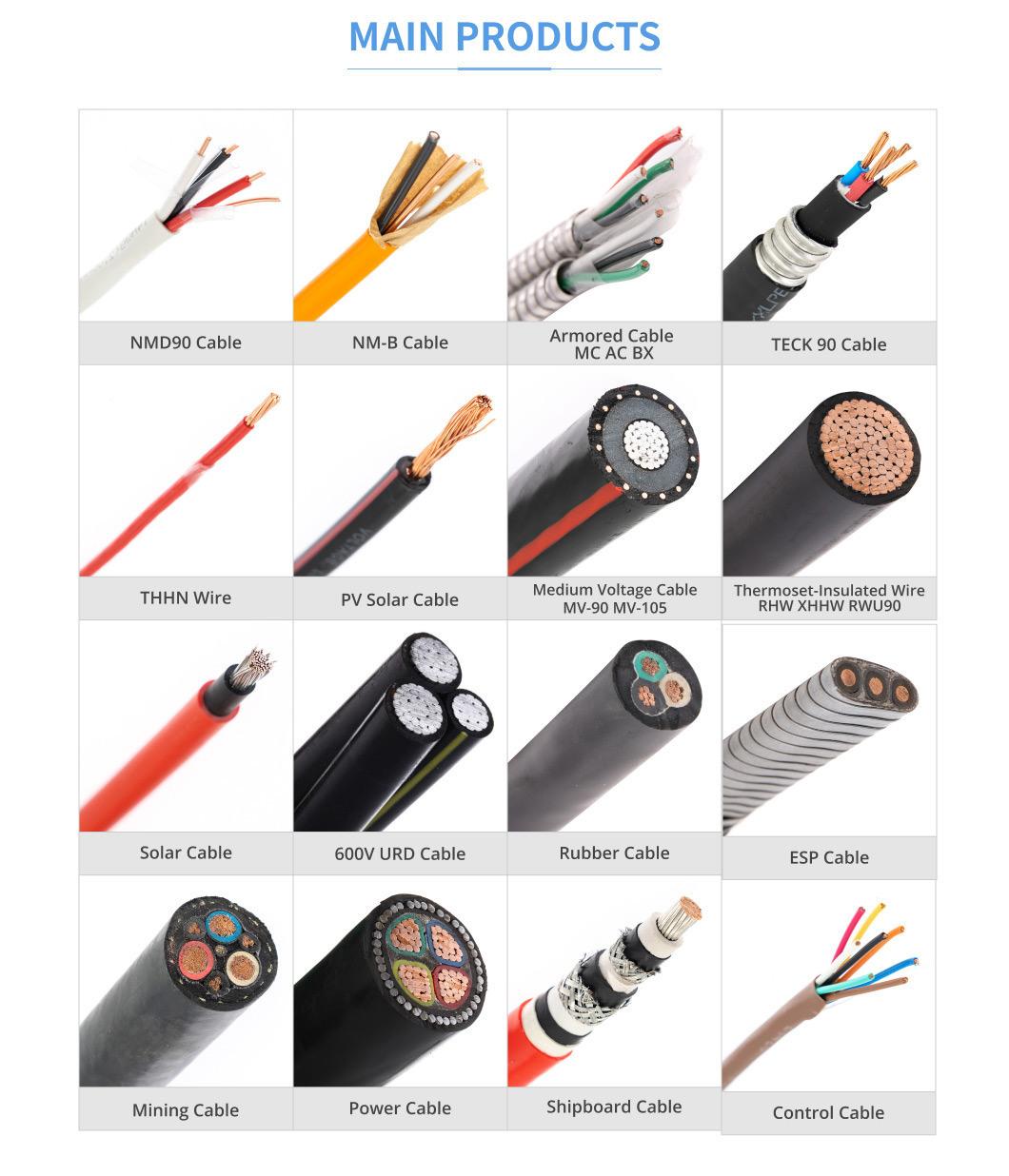

Other cables we can offer in the North American market:
