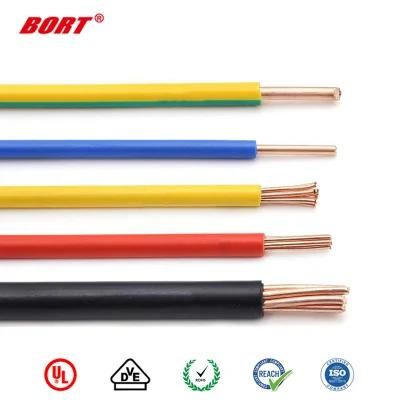

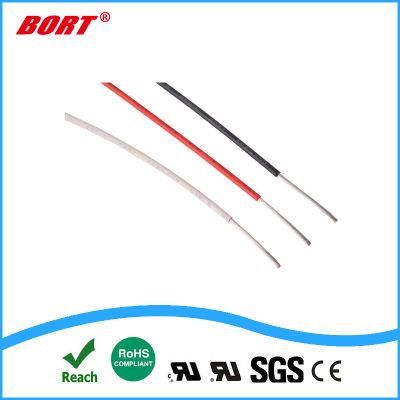

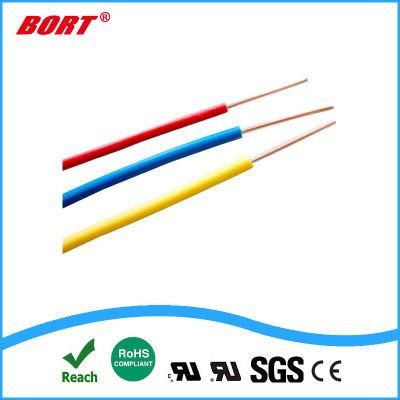

Electronical Wire UL1569 with Copper Wire 300V 80 Deg PVC Insulation Cable

B&T (Zhangzhou) Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：for General Purpose Internal Wiring of Appliance
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC

Base Info

  • Model NO.：UL-1569
  • Material Shape：Round Wire
  • Range of Application：Flame Retardant
  • Certification：ISO9001, CE, UL, CCC, RoHS, Reach
  • Brand：B&T
  • Rated Temperature：80 ºC
  • Rated Voltage：300V
  • According to：UL Subject758, UL1581, C22.2
  • Test：Passes UL VW-1 & CSA FT1 Vertical Flame Test
  • Performance：for General Purpose Internal Wiring of Appliance
  • Conductor：Stranded, Tinned or Bare Copper Conductor
  • Delivery Time：in 7-10days
  • Color：Could Be Customized Color
  • Products Certification：UL, cUL, RoHS, Reach
  • Factory Certificate：ISO9001:2008 Standard
  • Transport Package：610 Feet in Roll
  • Specification：18~30AWG 1~34 Conductors
  • Trademark：B&T
  • Origin：Xiamen, Fujian
  • HS Code：8544492100
  • Production Capacity：300, 000km

Description

Maximum Resistance at 20 ºC
Ω/kmAWGNo./mmDia.
mmNom. Thick.
mmNom.Dia.
mm267/0.160.480.411.301392411/0.160.610.411.4388.92217/0.160.760.411.5857.5207/0.320.960.411.7834.61841/0.161.180.412.0023.31626/0.2541.490.412.3215.11441/0.2541.870.412.709.2
