High Precise Align Fusion Splicer Skycom T-308X
Nanjing Tianxingtong Electronic Technology Co., Ltd.- Type：Fiber Splicer
- Certification：CE, ISO
- Condition：New
- Feature：Insulation
- Transport Package：Carton
- Specification：120W*120D*130H mm 1.29kg + 0.37kg (battery)
Base Info
- Model NO.：Skycom T-308X
- Trademark：SKYCOM
- Origin：China
Description
Basic Info.
Model NO. Skycom T-308X Trademark SKYCOM Origin ChinaProduct Description

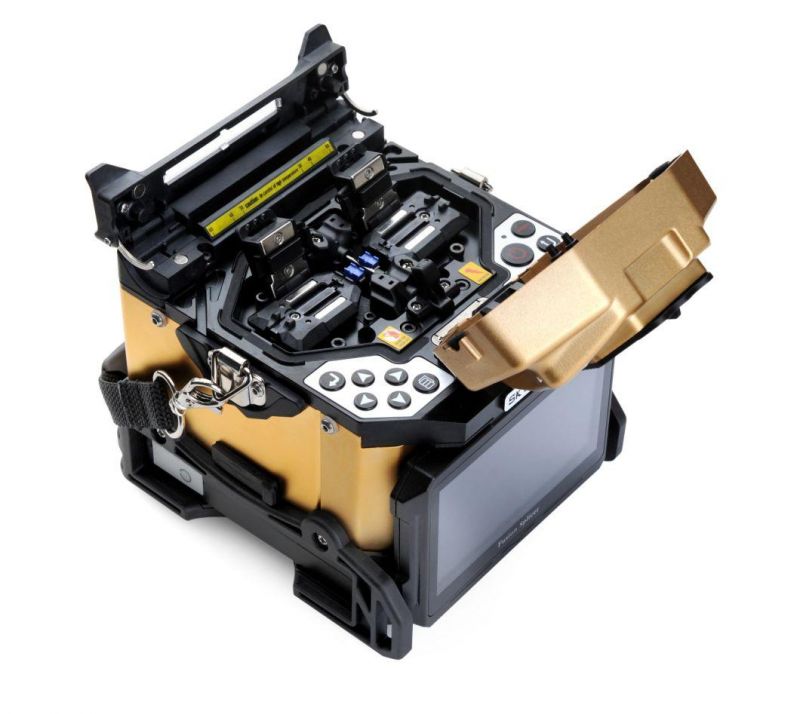

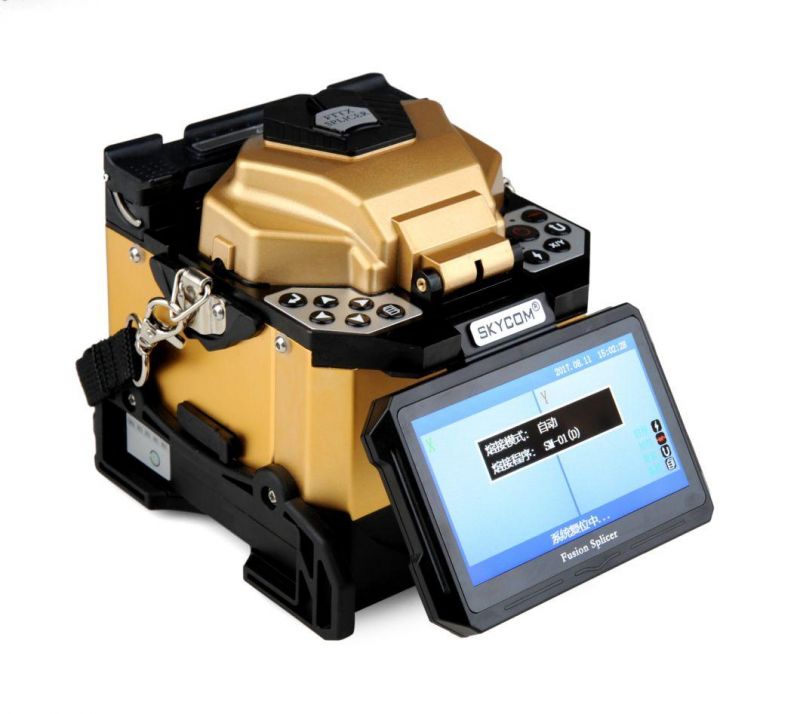

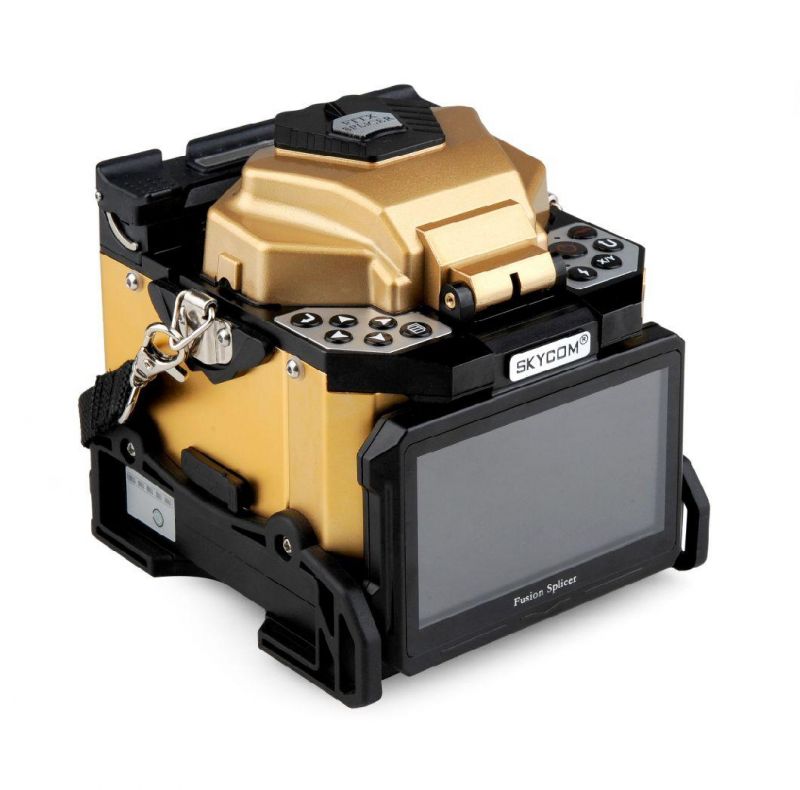

SKYCOM T308X Full Function Fusion Splicer
Features:
- 4.3 inches high Resolution colorful LCD display, image can be turned according to position
- Typical splice time: 9 second
- Optional heating mode, Typical tube-heat time: 20 second
- Lithium battery: Rechargeable and up to 180 times of continuous splice and heat after fully charged
- Separately X or Y axis views with 520 times magnification
- Arc power automatic adjustment according pressure and temperature, not need to always arc test
- Fully automatic splicing and heating
- New developed image processing technology
- New developed core alignment technology, improved accuracy (PAS technology)
- Applicable for 100kms Backbone transmission network
- Equivalent to INNO V5
- New developed steering Wind-proof, better locator, providing stronger wind and dust resistance
- Portable design, 1.29kgs weight(without battery)
- 3-in-1 fixture ( patented technology)
Specifications:
| Applicable Fibers | SM, MM, NZ-DS, EDF ,Pigtail, FTTH drop cable |
| Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
| Return Loss | ≥60dB |
| Tension Test | 2.0N(200gf)(Standard) |
| Splicing Program | 50 groups |
| Heat-shrinkable T bush | 20mm, 40mm, 60mm |
| Language | Chinese, English |
| Environmental Conditions | -10~+50ºC(operation temperature),0~95% RH(humidity), 0~5000m(altitude) |
| Power Supply | AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A |
| Battery | 12V 5200mAH |
| Dimensions | 120(W)*120(L)*130(H)mm |
| Weight | 1.29kg + 0.37kg (battery) |

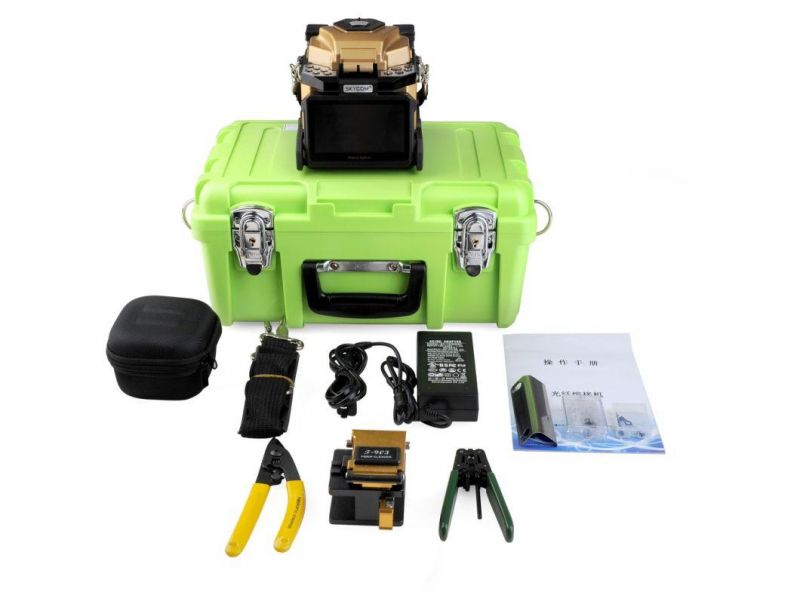

| No. | Item | Quantity |
| 1 | Machine (T-308) | 1 |
| 2 | Battery | 1 |
| 3 | AC Adaptor | 1 |
| 4 | Cooling Tray | 1 |
| 5 | Quick Reference Guide | 1 |
| 6 | Important Statement | 1 |
| 7 | Instruction CD | 1 |

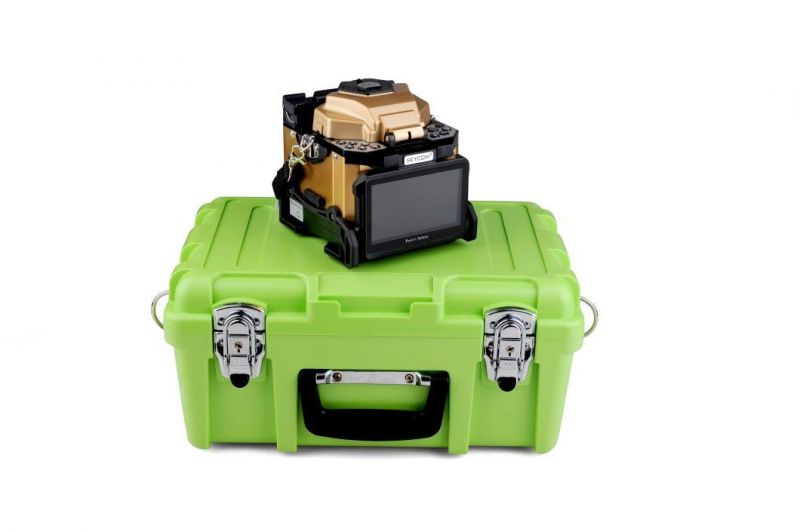

| 8 | Carrying Case with Carrying Strap | 1 |
| 9 | Fiber Stripper | 1 |
| 10 | Fiber Cleaver | 1 |
| 11 | Drop cable stripper | 1 |
| 12 | Spare Electrodes | 1 |
Why choose us?
1. Professional: Specialized in manufacturing and selling optical fiber devices for more than 4 years.
2. Excellent quality: All our products have pasted the tests by SGS & CE.
3. Quick delivery: All our goods can be delivered within 3 working days.
4. Reasonable price: We provide the pretty cost-effective products.
5. We treat our workers and other suppliers as respectful partners
6. Caring after-sale services: Long warranty time, free technical instructions and
Special training make you using our goods without any worries.

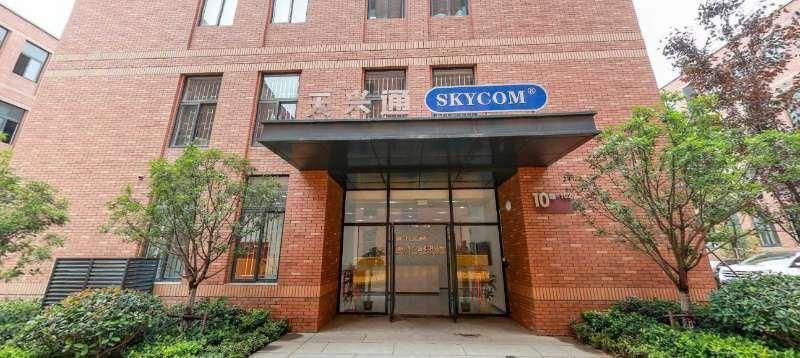

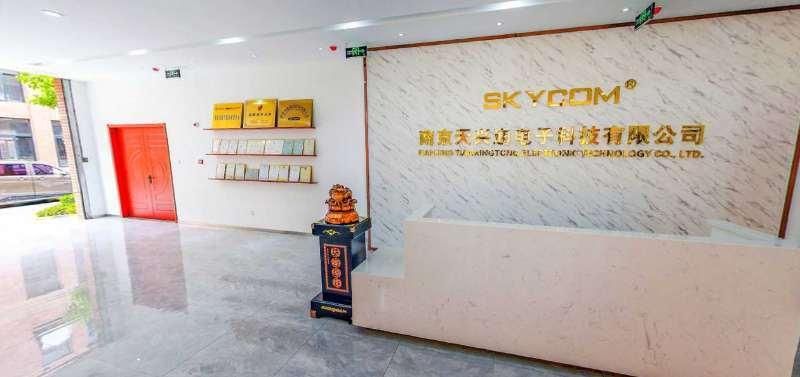

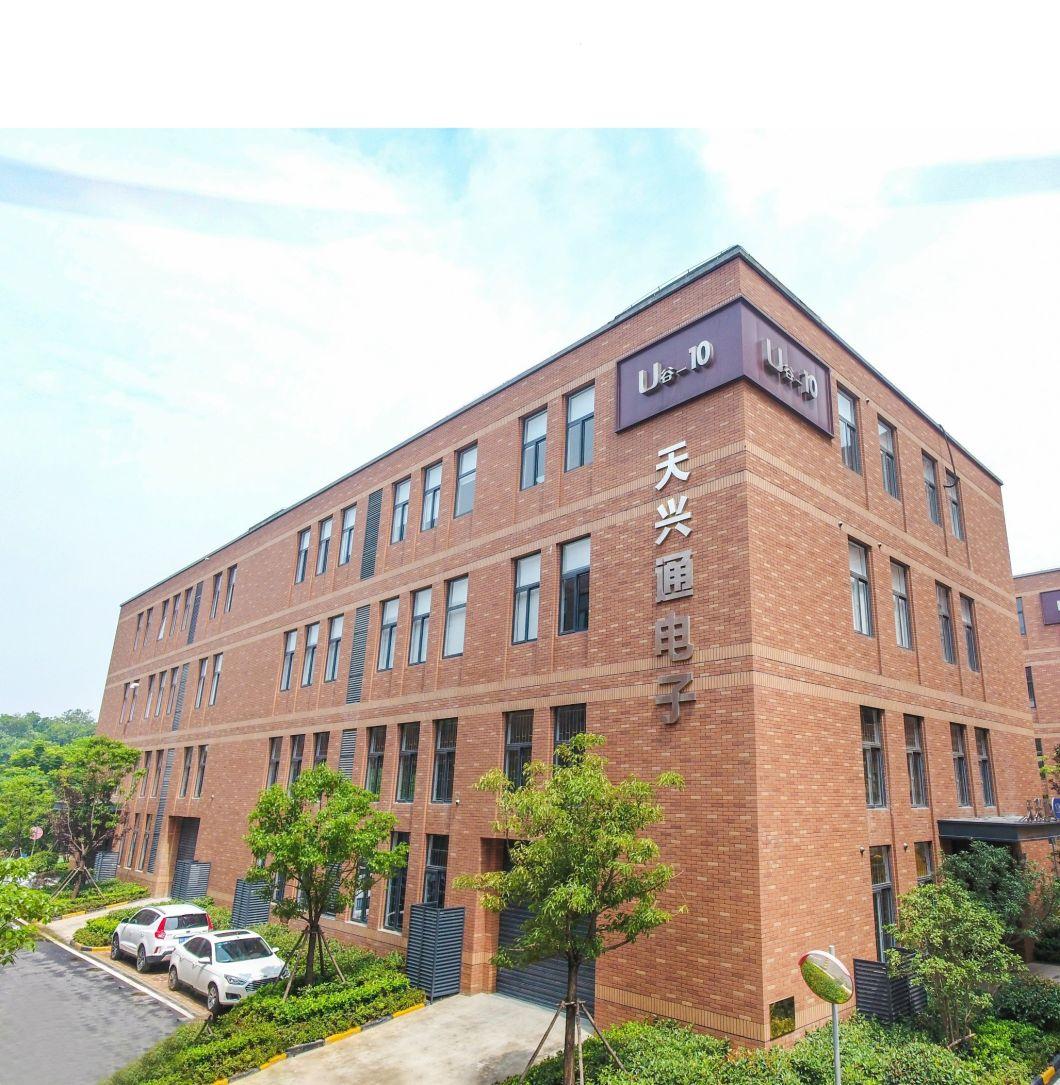

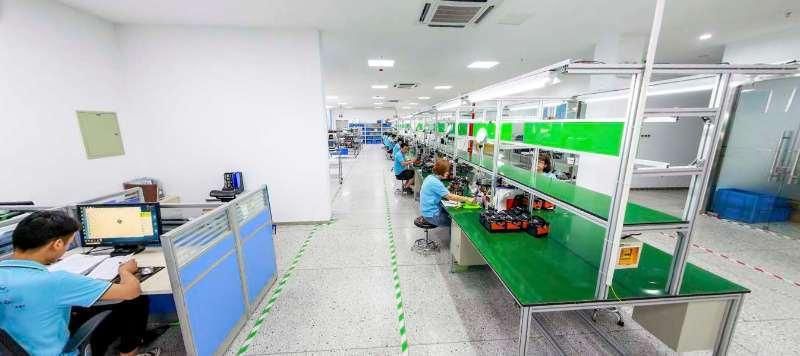

Our company is one of the professional manufacturers of Fusion Splicer and OTDR. It has a production line for Fusion Splicer. The products exported to UK, USA, France, Australia, India and Africa, etc, More than 20 countries and district, we also supply OEM for domestic and foreign manufacturers...Our products have won good praises of customers at home and abroad.
