8 Core High Performance Camera Monitor Cable Bc Conductor Security Alarm Cable
Hangzhou Spring Electronics Co., Ltd.- Application：Local Communication Cable, Alarm
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC
- Type：Coaxial
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：alarm cable
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS
- Model：Rvv
- Brand：Fuu
- Transport Package：100m
- Specification：12awg Conductor
- Origin：China
- HS Code：8544200000
- Production Capacity：3500km,Month
Description
Basic Info.
Model NO. alarm cable Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS Model Rvv Brand Fuu Transport Package 100m Specification 12awg Conductor Origin China HS Code 8544200000 Production Capacity 3500km/MonthProduct Description

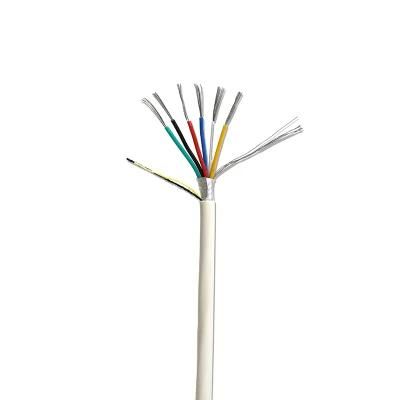

8 Core High Performance Camera Monitor Cable Bc Conductor Security Alarm Cable
1) Conductor: TC, BC,
Cable core: From 2 core to 24 cores
Insulation: PVC
Rip cord: Yes
Shield or unshield
Shield have drain wire,
PVC insulation: PVC-flame proof or common PVC insulation
PVC jacket: PVC.
2)Application:
These cables are used for installation in signaling and alarm systemor security system.
Infra-red as well as micro wave or mixed technology systems to the switchboard.
3)Electrical Properties:
Nom. DC Resistance per Conductor@20
6.43Ohms/Kft. Nom.
CapacitanceBetween Conductors@1KHz
35pF/ft. Nom.
Operating Voltage: 300V/RMS max
Temperature Rating: -20oC to 60oC
4)Standard packing:
100m/rolll, 100m/box; 100m/plastic spool; 300m/wooden spool

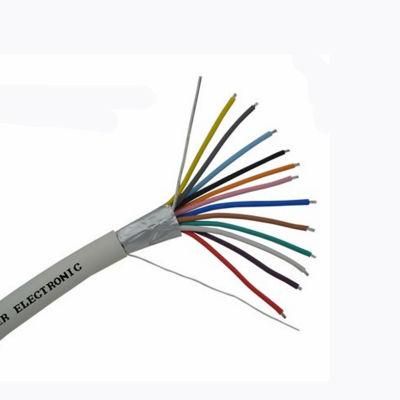

Alarm Cable/Control Cable
| Cable Size | Specification | Overall Diameter |
| 2x0.22mm² | 2x7/0.20 | 3.0mm |
| 4x0.22mm² | 4x7/0.20 | 3.5mm |
| 6x0.22mm² | 6x7/0.20 | 4.1mm |
| 8x0.22mm² | 8x7/0.20 | 4.5mm |
| 10x0.22mm² | 10x7/0.20 | 5.2mm |
| 12x0.22mm² | 12x7/0.20 | 5.6mm |
| 14x0.22mm² | 14x7/0.20 | 5.8mm |
| 20x0.22mm² | 20x7/0.20 | 6.8mm |
| 2x0.50mm² | 2x16/0.20 | 4.5mm |
| 4x0.50mm² | 4x16/0.20 | 5.2mm |
| 6x0.50mm² | 6x16/0.20 | 6.0mm |
| 8x0.50mm² | 8x16/0.20 | 6.8mm |
| 10x0.50mm² | 10x16/0.20 | 7.6mm |
| 12x0.50mm² | 12x16/0.20 | 8.0mm |

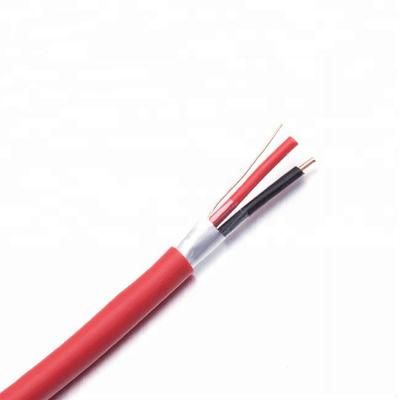

Fire Cable/Fire Alarm Cable
| Cable Size | Specification | Overall Diameter |
| 2x0.5mm² | 2x0.8mm | 4.80mm |
| 2x2x0.5mm² | 4x0.8mm | 6.00mm |
| 2x1.0mm² | 2x1.15mm | 5.30mm |
| 2x2x1.0mm² | 4x1.15mm | 6.60mm |
| 2x1.5mm² | 2x1.40mm | 5.90mm |
| 2x2x1.5mm² | 4x1.40mm | 7.20mm |
| 2x2.5mm² | 2x1.80mm | 6.80mm |
| 2x2x2.5mm² | 4x1.80mm | 8.00mm |
Packing:
1)Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll.
2) Inner packing:Roll, Wooden reel, plastic reel, and paper reel.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.
