• Model NO.：SAC space aerial cable
• Wire Core Material：Aluminum
• Certification：ISO, CCC
• Model：Sac Cable
• Brand：OEM
• Transport Package：Wooden Drum
• Specification：2.5~400sqmm
• Trademark：OEM
• Origin：China(Mainland)
• HS Code：8544492100
• Production Capacity：500 Kilometer,Month

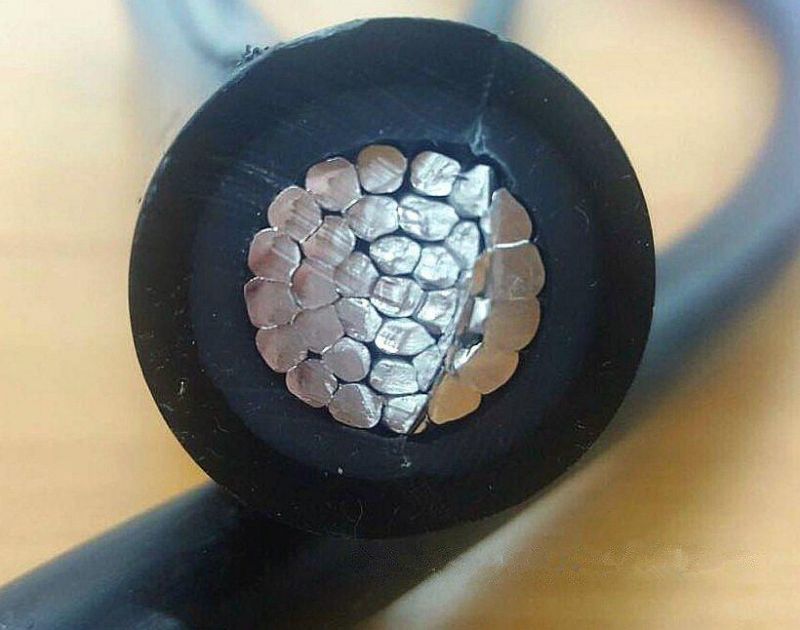

NUMBER OF CORESingle core1. CONDUCTOR

• Compact stranded hard drawn Aluminum wire or ACSR
• Conductor sizes 35 mm2 up to 240 mm2

2. CONDUCTOR SHIELDSemi conducting cross-linked polyethylene3. INSULATION

• Cross-linked polyethylene
• Colour : Natural

4. SHEATH

• Track resistant cross-linked polyethylene
• Colour : Black

CLASSIFICATION

• Normal operation 90 °C
• Emergency overload conditions 130 °C
• Short circuit conditions 250°C
• Voltage rating 25 Kv.( Phase to Phase )

TESTING VOLTAGE48KV for 5 minutesREFERENCEICEA S-66-524 /MEA/PEA

Nominal Sectional Area
mm2Minimum Number of wire
NODiameter of Conductor (approx.)
mmThickness of Insulation
mmThickness of sheath
mmOverall Diameter (approx.)
mmMaximum DC. conductor resistance at 20°C
Ω / kmAllowable ampacities in free air at 40°C ambient
ACable weight (approx.)
kg / km2575.903.183.1820.01.20001193173576.953.183.1821.00.86801493905078.333.183.1822.00.641018644070189.733.183.1824.50.4430229540951811.453.183.1826.00.32002796401201812.953.183.1827.00.25303217401501814.273.183.1829.50.20603718501853415.983.183.1831.00.16404299902403418.473.183.1833.50.12505201,190

Packing shipping




Why Choose Us ?
1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10.We have a good reputation in the overseas

If you have another question, pls feel free to contact us below
