Factory Price Transmission Line ACSR Robin Swan Turkey Conductor
Guangdong Vango Cable Industry Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead Installation
- Conductor Material：Aluminum
- Sheath Material：Bare
- Insulation Material：Bare
Base Info
- Model NO.：ACSR
- Material Shape：Round Wire
- Range of Application：Overhead Installation
- Certification：ISO9001, ISO9001,ISO14001, CCC, Ce
- Brand：Gdyg
- Warranty：12 Months
- Standard：IEC61089, ASTM B232, BS215, GB, DIN etc.
- Model No.：ACSR Conductor
- ACSR Code：Turkey, Swan, etc.
- Supply Record：African Countries, Arabian Countries, etc.
- Transport Package：Wooden Reel, Steel Reel
- Specification：10-1500 mm2
- Trademark：GDYG
- Origin：Guangdong, China
- HS Code：7614100000
- Production Capacity：4600 Tons Per Month
Description
Steel WiresNumber Diameter Layers Number Diameter Layers mm2 mm mm mm kg/km 1 1250 AA 84/19 84 4.35 4 19 2.61 2 47.85 4274 2 1250 AA 76/19 76 4.58 4 19 2.14 2 47.34 4023 3 1250 AA 72/7 72 4.70 4 7 3.13 1 46.99 3901 4 1120 AA 84/19 84 4.12 4 19 2.47 2 45.31 3833 5 1120 AA 46/19 76 4.33 4 19 2.02 2 44.74 3595 6 1120 AA 72/7 72 4.45 4 7 2.97 1 44.51 3499 7 1000 AA 84/19 84 3.89 4 19 2.33 2 42.77 3416 8 1000 AA 72/7 72 4.21 4 7 2.81 1 42.11 3132 9 900 AA 84/19 84 3.69 4 19 2.21 2 40.57 3073 10 900 AA 72/7 72 3.99 4 7 2.66 1 39.9 2812 11 800 AA 54/19 54 4.34 3 19 2.60 2 39.04 3015 12 800 AA 45/7 45 4.76 3 7 3.17 1 38.07 2652 13 710 AA 54/19 54 4.09 3 19 2.45 2 36.79 2678 14 710 AA 45/7 45 4.48 3 7 2.99 1 35.85 2351 15 630 AA 54/19 54 3.85 3 19 2.31 2 34.65 2375 16 630 AA 45/7 45 4.22 3 7 2.81 1 33.75 2084 17 560 AA 5419 54 3.63 3 19 2.18 2 32.68 2112 18 560 AA 45/7 45 3.98 3 7 2.65 1 31.83 1854 19 500 AA 54/7 54 3.43 3 7 3.43 1 30.87 1889 20 500 AA 45/7 45 3.76 3 7 2.51 1 30.09 1656 21 450 AA 54/7 54 3.26 3 7 3.26 1 29.34 1706 22 450 AA 45/7 45 3.57 3 7 2.38 1 28.56 1492 23 400 AA 30/19 30 4.12 2 19 2.47 2 28.83 1824 24 400 AA 26/7 26 4.43 2 7 3.45 1 28.07 1622 25 400 AA 54/7 24 4.61 2 7 3.07 1 27.65 1515 26 355 AA 30/19 30 3.88 2 19 2.33 2 27.17 1620 27 355 AA 26/7 26 4.17 2 7 3.24 1 26.4 1435 28 355 AA 24/7 24 4.34 2 7 2.89 1 26.03 1343 29 315 AA 30/19 30 3.66 2 19 2.20 2 25.64 1443 30 315 AA 26/7 26 3.93 2 7 3.06 1 24.9 1277 31 315 AA 24/7 24 4.09 2 7 2.73 1 24.55 1194 32 315 AA 18/1 18 4.72 2 1 4.72 0 23.6 1014 33 280 AA 30/7 30 3.45 2 7 3.45 1 24.15 1291 34 280 AA 26/7 26 3.70 2 7 2.88 1 23.44 1131 35 280 AA 24/7 24 3.85 2 7 2.57 1 23.11 1058 36 280 AA 18/1 18 4.45 2 1 4.45 0 22.25 901 37 250 AA 30/7 30 3.26 2 7 3.26 1 22.82 1152 38 250 AA 26/7 26 3.50 2 7 2.72 1 22.16 1011 39 250 AA 24/7 24 3.64 2 7 2.43 1 21.85 946 40 250 AA 18/1 18 4.21 2 1 4.21 0 21.05 806.4 41 224 AA 30/7 30 3.08 2 7 3.08 1 21.56 1029 42 224 AA 26/7 26 3.31 2 7 2.57 1 20.95 904 43 224 AA 24/7 24 3.45 2 7 2.30 1 20.7 849.2 44 224 AA 18/1 18 3.98 2 1 3.98 0 19.9 720.7 45 200 AA 30/7 30 2.91 2 7 2.91 1 20.37 918.2 46 200 AA 26/7 26 3.13 2 7 2.43 1 19.81 808.3 47 200 AA 24/7 24 3.26 2 7 2.17 1 19.55 757.6 48 200 AA 18/1 18 3.76 2 1 3.76 0 18.8 634.2 49 180 AA 30/7 30 2.76 2 7 2.76 1 19.32 826 50 180 AA 26/7 26 2.97 2 7 2.31 1 18.81 728.6 51 180 AA 24/7 24 3.09 2 7 2.06 1 18.54 681.2 52 180 AA 18/1 18 3.57 2 1 2.57 0 17.54 579.9 53 160 AA 30/7 30 2.61 2 7 2.61 1 18.27 738.6 54 160 AA 26/7 26 2.80 2 7 2.18 1 17.74 648 55 160 AA 24/7 24 2.91 2 7 1.94 1 17.46 604.2 56 160 AA 18/1 18 3.36 2 1 3.36 0 16.8 513.7 57 140 AA 26/7 26 2.62 2 7 2.04 1 16.6 567.4 58 140 AA 24/7 24 2.73 2 7 1.82 1 16.38 531.8 59 140 AA 18/1 18 3.15 2 1 3.15 0 15.75 451.5 60 125 AA 26/7 26 2.47 2 7 1.92 1 15.64 503.7 61 125 AA 24/7 24 2.58 2 7 1.72 1 15.48 474.9 62 125 AA 18/1 18 2.97 2 1 2.97 0 14.85 401.3 63 100 AA(HS) 16/19 16 2.82 1 19 2.44 2 17.84 972.4 64 100 AA(HS) 12/7 12 3.26 1 7 3.26 1 16.3 734.1 65 100 AA,A 6/1 6 4.61 1 1 4.61 0 13.83 404.8 66 90 AA(HS) 12/7 12 3.09 1 7 3.09 1 15.45 659.5 67 80 AA(HS) 12/7 12 2.91 1 7 2.91 1 14.55 584.9 68 80 AA,A 6/1 6 4.12 1 1 4.12 0 12.36 323.3 69 71 AA(HS) 12/7 12 2.74 1 7 2.74 1 13.7 518.6 70 63 AA(HS) 12/7 12 2.59 1 7 2.59 1 12.95 463.4 71 63 AA,A 6/1 6 3.66 1 1 3.66 0 10.98 255.2 72 56 AA(HS) 12/7 12 2.44 1 7 2.44 1 12.2 411.2 73 50 AA(HS) 12/7 12 2.30 1 7 2.30 1 11.5 365.4 74 50 AA,A 6/1 6 3.26 1 1 3.26 0 9.78 202.4 75 40 AA(HS) 8/1 8 2.52 1 1 4.20 0 9.24 217.9 76 40 AA,A 6/1 6 2.91 1 1 2.91 0 8.73 161.3 77 31.5 AA,A 7/1 7 2.39 1 1 3.19 0 7.97 148.4 78 31.5 AA,A 6/1 6 2.59 1 1 2.59 0 7.77 127.8 79 25 AA,A 7/1 7 2.13 1 1 2.84 0 7.1 117.8 80 25 AA,A 6/1 6 2.30 1 1 2.30 0 6.9 100.8 81 20 AA,A 7/1 7 1.91 1 1 2.55 0 6.37 94.8 82 20 AA,A 6/1 6 2.06 1 1 2.06 0 6.18 80.83 83 16 AA,A 6/1 6 1.84 1 1 1.84 0 5.52 64.49 84 12.5 AA,A 6/1 6 1.63 1 1 1.63 0 4.89 50.61
Our company:
Established in 1988, Guangdong Vango Cable Industry Co., Ltd., the Guangdong Top 100 Private enterprise, is a professional manufacturer of power cables and wires. It is the main supplier of cable & conductor and special transmission conductor of National Power Grid and China Southern Power Grid. The comprehensive strength of Vango Company ranks top 20 of the cable industry in China and top 5 of the Guangdong province.
It covers 214000m² with about 110 sets international advanced cable and wire producing and testing equipments. There are 540 employees including over 116 intermediate and senior technical personnel with 9 senior titles which contributes strong power of scientific research, management and innovation. It gains 21 Patents issued by State Intellectual Property Office of China.
The main products are power cables with rated voltage up to 35kV, common type, fire-resistance and flame retardant PVC cable with voltage up to 1kV, control cable of 450/750V, PVC insulated cable and wire, AAC, ACSR, ACSR/AS, heat-resistant Aluminum Alloy Conductor and aerial insulated cable up to 35kV, which covers 8 series with more than 3000 items.

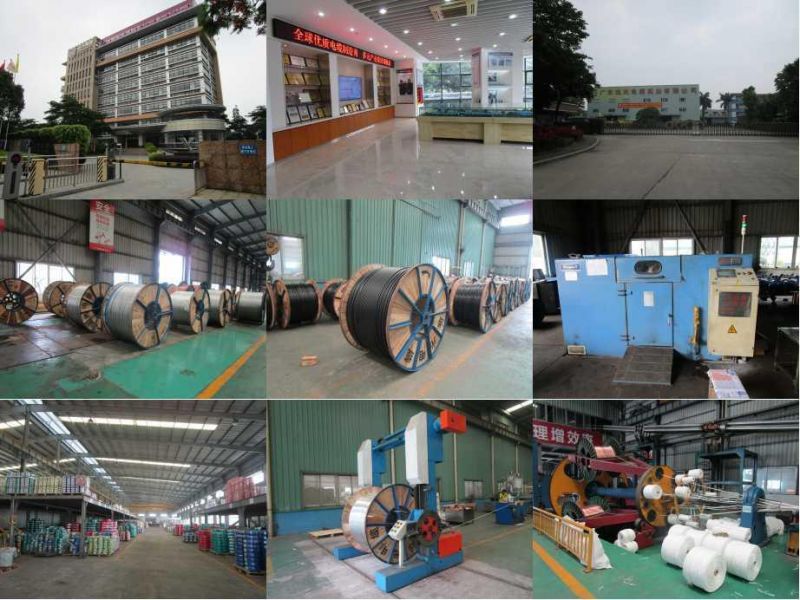

Factory:
