Outdoor Rated Cat5e with Waterproof Tape LAN Cable
Hangzhou Risun Cable Co., Ltd.- Application:Local Communication Cable, LAN Cable, Network Cable Ethernet Cable
- Conductor Material:BC,CCS,CCA,TC,CU,CCAG
- Cover Material:PVC,PE,LSZH
- Type:Cat 5
- Material Shape:Round Wire
- Conductor Type:Solid
Base Info
- Model NO.:LAN Cable
- Wire Core Material:Bare Copper Wire
- Certification:CE, ISO, RoHS, CCC, ETL,CPR
- Brand:Risun or OEM
- Insulation:HDPE
- UV:Available
- Waterproof Tape:Available
- Transport Package:305m,Pull Box, 2box,Carton
- Origin:Hangzhou, Zhejiang, China
- HS Code:8544491100
- Production Capacity:20000 Boxes , Month
Description
Basic Info.
Model NO. LAN Cable Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, CCC, ETL,CPR Brand Risun or OEM Insulation HDPE UV Available Waterproof Tape Available Transport Package 305m/Pull Box, 2box/Carton Origin Hangzhou, Zhejiang, China HS Code 8544491100 Production Capacity 20000 Boxes / MonthProduct Description
Use our solid Cat5e outdoor waterproof Ethernet cable for high-speed "Gigabit Ethernet" runs when installing permanent network infrastructure. This 1000-foot network cable roll can be used for direct burial between buildings and has bare ends to add connectors. CMX Cat5e 350MHz outdoor network cable is made using pure copper 24 AWG conductors for a strong signal. A black PE jacket and waterproof tape protect these conductors.

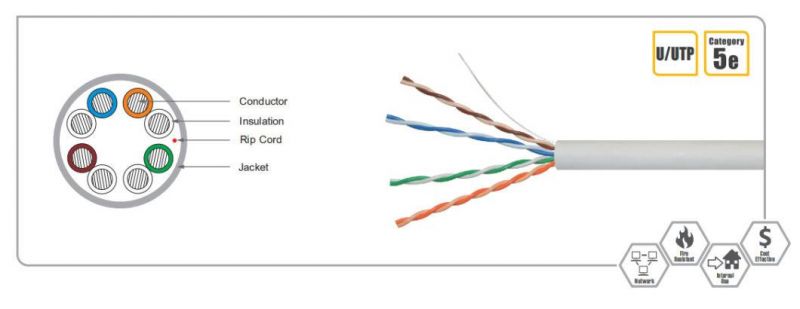

construction:
conductor | 24awg (solid or strand) cu/cca/ccs |
insulation | HDPE 0.90±0.02mm |
sheath | 5.0±0.1mm pvc (fr,rohs,uv)/ lsoh / pe |
cores/pairs | 8/4 |
mechanical properties:
elongation | min. 300% |
temperature range | -20 up to +75° c |
tensile strength | min 1.68kg/mm² |

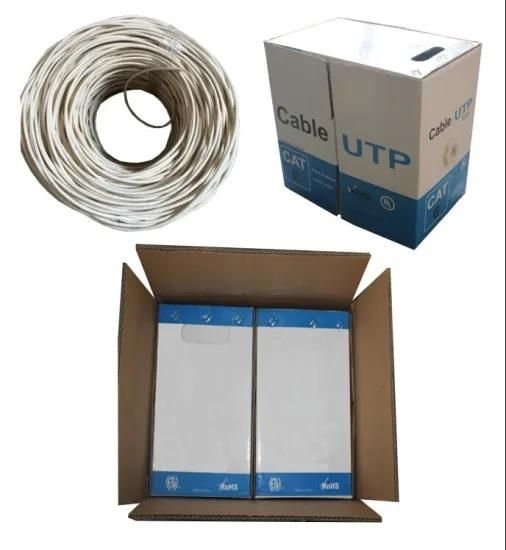

Packing
1) packing lengths: 305m/roll, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.
5) any question, please contact us without hesitation. we'll reply as soon as we can.

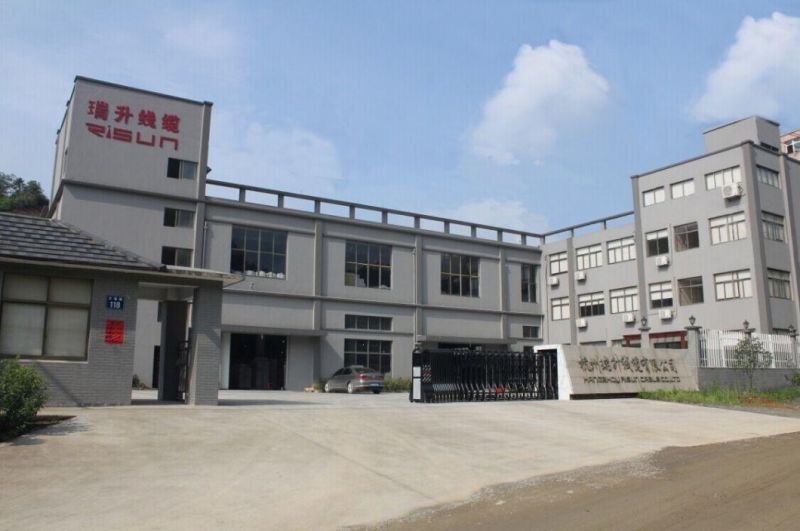

company profile
risun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and telephone cable in china.
95% of our goods for the export market. 13 years of experience in this field makes us very familiar with export handling.we have customer in more than 40 countries all over the world.In the past 13 years, we have already get ETL,CE,ROHS, ISO9001,CPR certification.

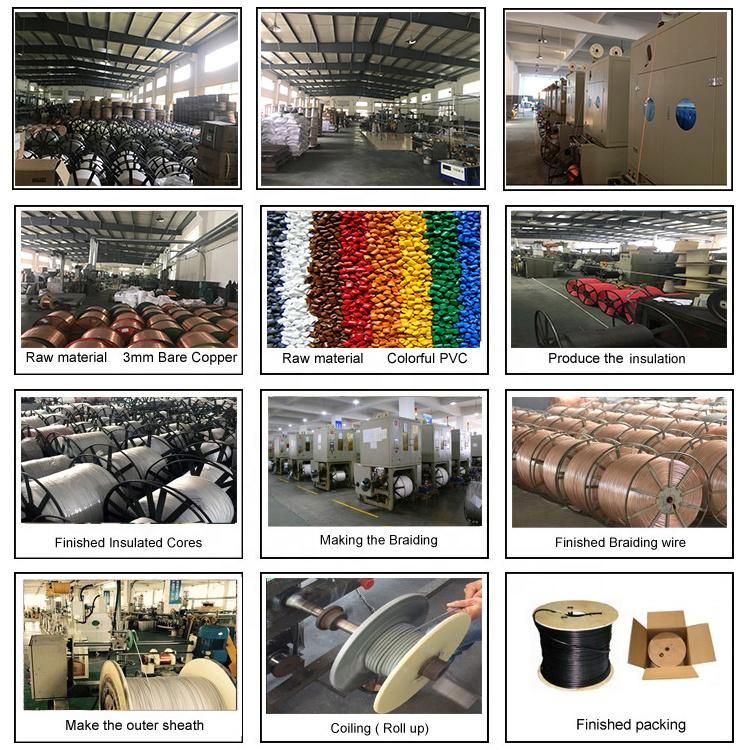

workshop:
Welcome to RISUN,we will be happy to serve you!
