• Model NO.：SJT,NYM-J,O, H03VV-F, A03VV-F, H05VV-F, A05VV-F
• Material Shape：Round Wire
• Range of Application：Household and Industrial Electrical Appliances
• Certification：ISO9001, CE, CCC
• Brand：Feiya
• Transport Package：Wooden Box Packing or Pallet Shipping Containers
• Specification：US $0.1-0.99, Meter
• Trademark：FengDa
• Origin：Tianjin, China
• HS Code：8544492100
• Production Capacity：5, 000, 000km,Year

Basic Info.

Model NO. SJT/NYM-J/O, H03VV-F, A03VV-F, H05VV-F, A05VV-F Material Shape Round Wire Range of Application Household and Industrial Electrical Appliances Certification ISO9001, CE, CCC Brand Feiya Transport Package Wooden Box Packing or Pallet Shipping Containers Specification US $0.1-0.99/ Meter Trademark FengDa Origin Tianjin, China HS Code 8544492100 Production Capacity 5, 000, 000km/Year

Product Description

Product Description:

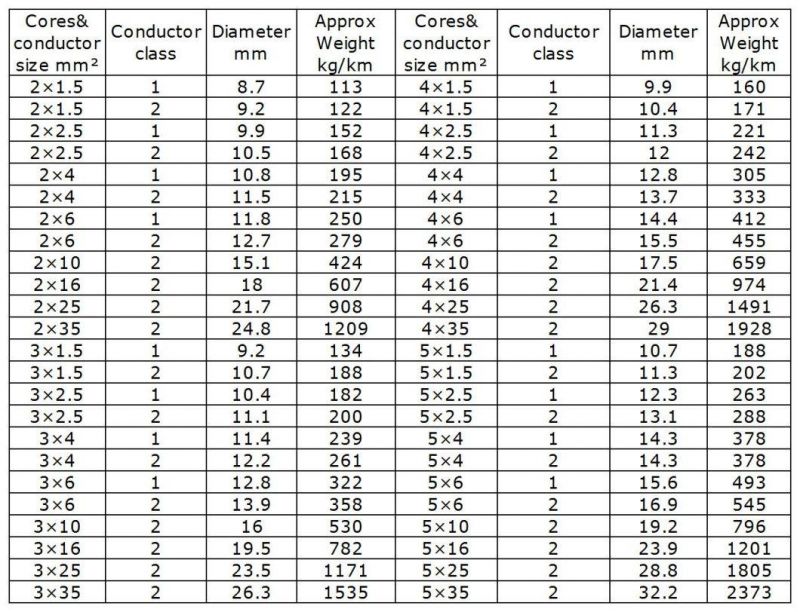

Type: NYM-J/O(60227 IEC 10)

Application:Onlyfor fixed installations in dry, humid and wet locations. Notsuitable for laying directly open-air or in concrete.
Conductor:Solid or Stranded bare copper
Insulation:Polyvinyl chloride(PVC)
Insulationidentification:
Light Blue, Brown, Black, Grey,BlackorYellow-green,Light Blue, Brown,Black, Grey
Inner covering:Polyvinyl chloride(PVC)
Sheath:Polyvinyl chloride(PVC)
Sheathcolour:White
Rate voltage:300/500V
Standard:IEC60227-4   DIN VDE 0250-204
DIN EN 60228 Class 1 or class 2 (construction)
Test voltage:2000V
Maximum conductor temperature:70°C
Bending radius:Min 4 times diameter

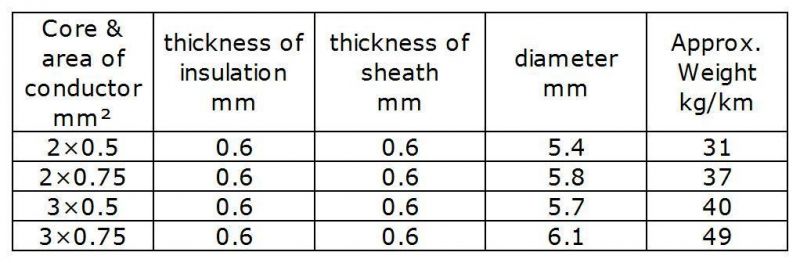

Type: H03VV-F /A03VV-F(60227 IEC 52)

Application: Suitable in dry locations for connections of portable electrical
appliances submitted to weak mechanical strength, such as radio sets and
lighting fittings, not for heating devices.
Conductor: finely stranded flexible bare cooper
Insulation: PVC
Sheath: PVC
Rate voltage: 300/300V
Standard: IEC 60227-5 DIN VDE 0281-5
DIN EN 60228 class 5 (construction)
Test voltage:2000V
Temperature range: +5°C till +70°C
Bending radius: Min 6 times diameter

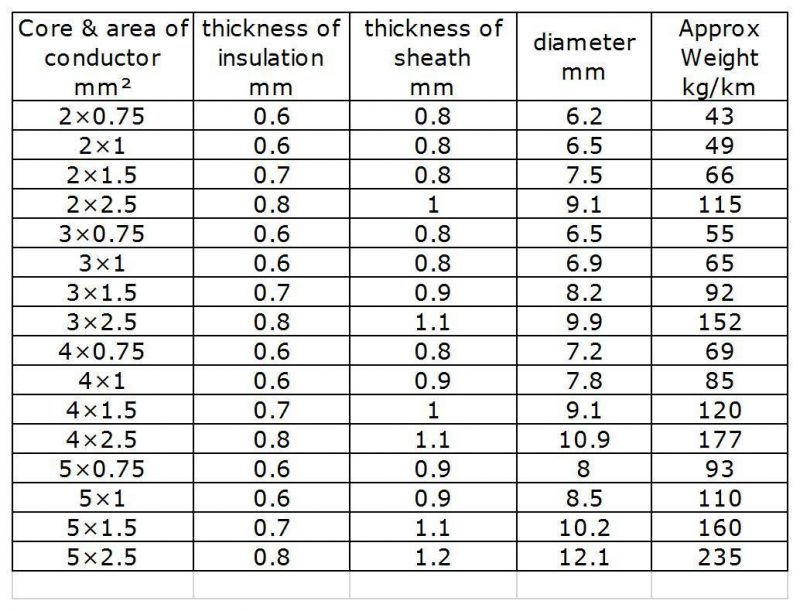

Type: H05VV-F /A05VV-F(60227 IEC 53)

Application: Suitable in dry and humid locations for connections of electrical
appliances submitted to medium level mechanical strength, such as washing
machines, refrigerators, etc. Suitable for heating appliances provided that there
is no risk of contact with hot parts.
Conductor: Flexible Conductor
Insulation: PVC
Sheath: PVC
Rate voltage: 300/500V
Standard: IEC 60227-5 DIN VDE 0281-5
DIN EN 60228 class 5 (construction)
Test voltage:2000V
Temperature range: +5°C till +70°C
Bending radius: Min 5 times diameter
