18/30kv (19/33KV) Power Cable Copper Conductor Galvanized Steel Wire Armour 3X185mm2
YIFANG ELECTRIC GROUP INC.- Application:Construction, Underground, Industrial, Power Station
- Voltage:High Voltage Cable
- Current:DC & AC
- Insulation Material:XLPE
- Sheath Material:PVC
- Material Shape:Round Wire
Base Info
- Wire Core Material:Red Copper Wire
- Certification:ISO, CE, Kema
- Model:Yjv32,Yjv72,Yjv
- Brand:Yifang
- Transport Package:Steel-Wood Drum, Steel Reel
- Origin:China
- Production Capacity:500km,Month
Description
Basic Info.
Wire Core Material Red Copper Wire Certification ISO, CE, Kema Model Yjv32,Yjv72,Yjv Brand Yifang Transport Package Steel-Wood Drum, Steel Reel Origin China Production Capacity 500km/MonthProduct Description

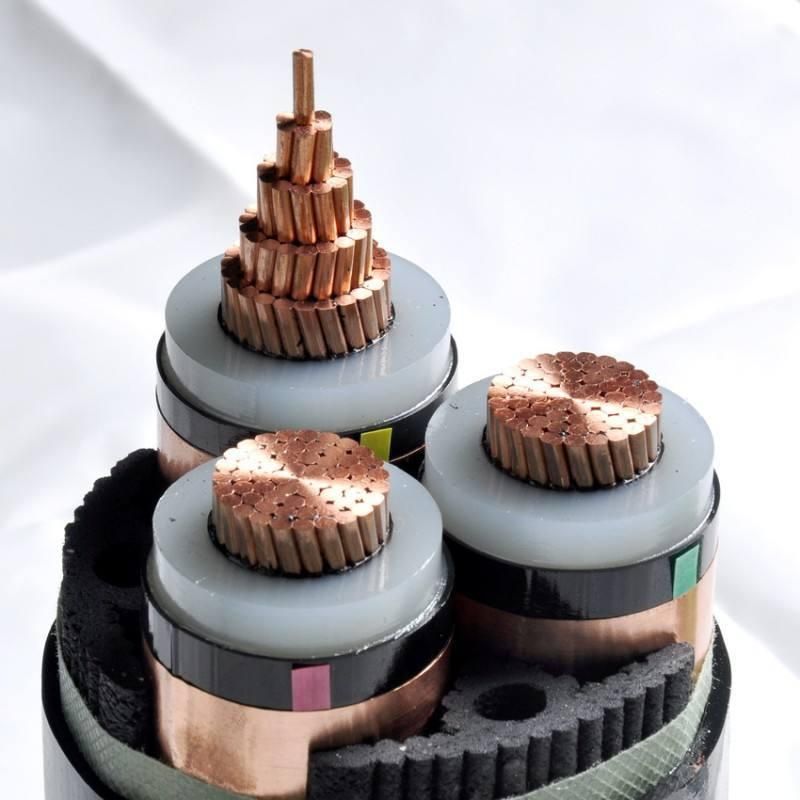

18/30KV (19/33KV) Power Cable Copper Conductor Galvanized Steel Wire Armour 3X185MM2
Application:
The cable can be used for laying indoor, tunnel, underground , canal, water and seabed , etc . The cable can bear external mechanical pressure and moderate pulling force with different design , such as metallic armour , water proof material , corrugated alu sheath , lead sheath , etc.
Standards: IEC 60502-2 , BS 6622, ANSI/ICEA S-93-639
Rated voltage (KV): 3.6/6, 6./10, 8.7/15, 12/20, 18/30 (19/33)
Conductor: Copper wire, class 2
(Size :25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2, 800mm2 )
Conductor screen: Semi-conducting Layer
Insulation: XLPE
Insulation Screen: Semi-conducting Layer
Metallic Screen: Individual and overall copper tape screen
Bedding: PVC
Armoring:

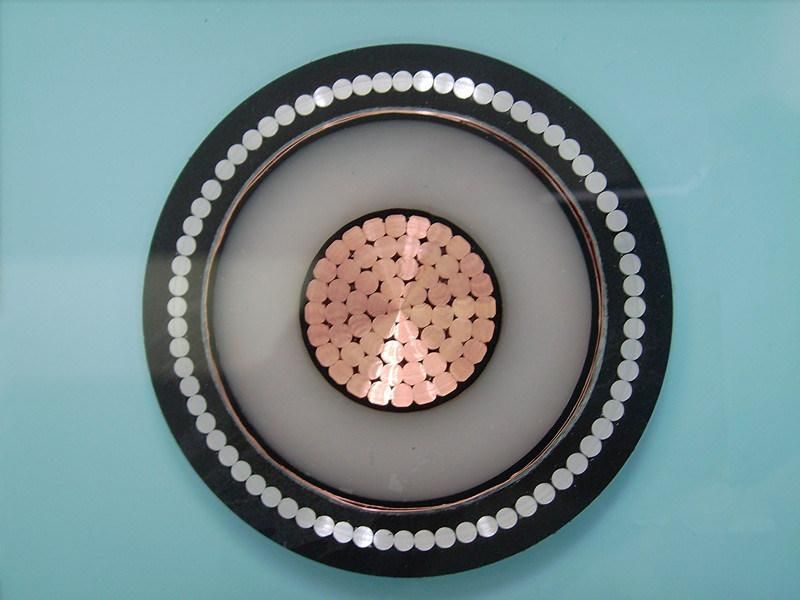

Single Core: Aluminum Wire Armored (AWA)

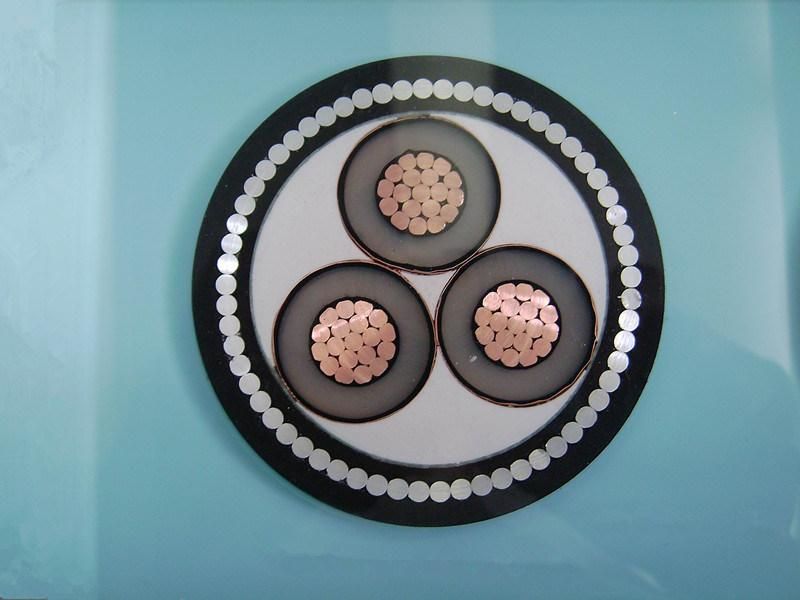

Multicourse: Steel Wire Armored (SWA) or Steel tape armoured (STA)
Sheath: PVC,PE,LDPE,LLDPE,LSZH
Color:Red ,black or as your request
Conductor Cross-section area is up to 800mm2
For other detailed information , pls contact us directly .
