Al Conductor 64kv/110kv (123KV) A2xs (FL) Y XLPE Insulated Power Cable IEC60840
Ningbo Hyuan Power Industry Co., Ltd.- Application:Underground, Power Station, Telecommunication
- Voltage:High Voltage Cable
- Current:AC Cable
- Insulation Material:XLPE
- Sheath Material:PVC
- Material Shape:Round Wire
Base Info
- Model NO.:A2XS(FL)Y
- Wire Core Material:Al
- Certification:ISO
- Model:A2xs(FL)Y
- Transport Package:300m Per Pack
- Trademark:HEMG
- Origin:China
- Production Capacity:500000
Description
Basic Info.
Model NO. A2XS(FL)Y Wire Core Material Al Certification ISO Model A2xs(FL)Y Transport Package 300m Per Pack Trademark HEMG Origin China Production Capacity 500000Product Description

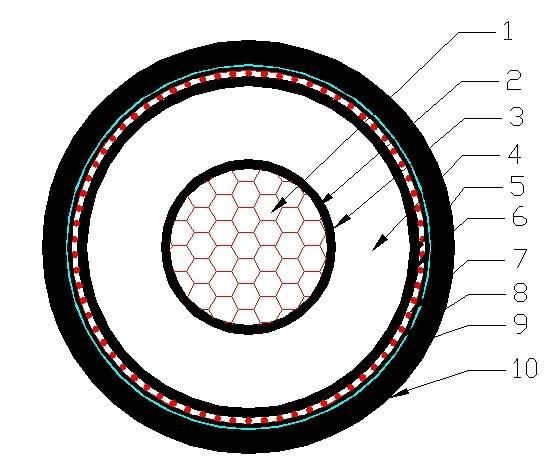

Construction description thickness(mm) Outer diameter (mm)
1---aluminum conductor (squeezing round conductor) 34.0
2---semi-conductive Tedron belt 1×0.18 34.72
3---conductor shield 1.5 37.32
4---Insulation (XLPE) 16 69.72
5---insulation shield 1.0 71.72
6---Insulated outer semi-conductive water hose 1×0.5 73.72
7---copper wire shield + reverse copper strip 70strands×φ1.32 76.56
8---semiconductor resistance water belt 1×0.5 78.56
9---Aluminum-plastic composite belt 1×0.25 79.06
10---HDPE sheath + extruded semi-conductive layer 4.5+0.5 89.06
Weight(kg/km) 7955.3
1000M PER TRAY SIZE 3500X2000X2000
