- Model NO.:Cat8 LAN Cable
- Wire Core Material:Bare Copper Wire
- Certification:CE, ISO, RoHS, CCC, UL, VDE
- Model:STP
- Brand:Kuayue
- Transport Package:305m
- Specification:44X44X23
- Trademark:hanli
- Origin:Zhejiang
- HS Code:8544200000
- Production Capacity:10000000,Year
Product Name/Code:STP Cat 8 PVC | Performance |
Application: | Frequency | RL | Attenuation | NEXT | PSNEXT |
100 Base-T4 | | (MHz) | (dB) | (dB/100m) | | |
100 Base-TX | | | min. | max | min (dB) | min (dB) |
100VG - AnyLAN | | 1.000 | 19 | 3 | 73.5 | 62.0 |
1000 Base-T (Gigabit Ethernet) | | 4.000 | 19 | 3 | 63.8 | 60.5 |
155 Mbps ATM | | 10.00 | 19 | 3 | 58.9 | 54 |
622 Mbps AT | | 16.00 | 18 | 3 | 5.39 | 50.6 |
Reference Standard | 20.00 | 17.5 | 3 | 52.3 | 49 |
EIA/TIA 568B & ISO/IEC 11801 | 31.25 | 16.5 | 3.6 | 49.1 | 45.7 |
Cable Construction | 62.50 | 16 | 5.1 | 44 | 40.6 |
Conductor | Solid Bare Copper | 100.00 | 16 | 6.5 | 40.5 | 37.1 |
AWG | 22/23 | 200.00 | 14.3 | 9.3 | 35.3 | 31.9 |
Conductor Diameter(mm) | 0.64/0.574 | 600 | 10 | 16.5 | 25.7 | 22.7 |
Insulation | Solid PE | 1000 | 8 | 22 | 19.3 | 16.5 |
2000 | 8 | 32.7 | 9.8 | 7.3 |
Average Thickness (mm) | 0.2 | Frequency | ACRF | PSACRF | | TCL |
Insulation Diameter(mm) | 1.35 | (MHz) | | | | |
| | | min (dB) | min (dB) | | |
| | 1.000 | 65 | 62 | | 40 |
| | 4.000 | 59.9 | 56.9 | | 40 |
| | 10.00 | 52 | 50.9 | | 40 |
| | 16.00 | 47.9 | 44.9 | | 36.5 |
Sheathing | PVC /FRPVC | 20.00 | 45.9 | 42.9 | | 34.9 |
Thickness(mm) | 1.4 | 31.25 | 42.10 | 39.1 | | 31.6 |
Diameter(mm) | 9.1(22 AWG) | 62.50 | 36 | 33 | | 26.5 |
8(23 AWG) | 100.00 | 32 | 29 | | 23 |
Core Identificatin/Color Code | According to customer request | 200.00 | 25.9 | 22.9 | | 17.9 |
Bending Radius | 6xOverall Diameter | 600 | 16.4 | 13.4 | | 9.8 |
| | 1000 | 12 | 9 | | 6 |
| | 2000 | 5.9 | 2.9 | | 3 |
Fire Performance | Electrical Performance |
Flame propagation Test to IEC 332 Part 1(PVC) Flame Propagation Test to IEC 60332 Part 1 and Part 3(FEPVC) | Max.Conductor DC Resistance at 20 ºC(Ω/Km) | <93.8 |
Operating Temperature( ºC ) | 70 |
Velocity of propagation | 79% |
Impedance(ohm) | 100±15 |

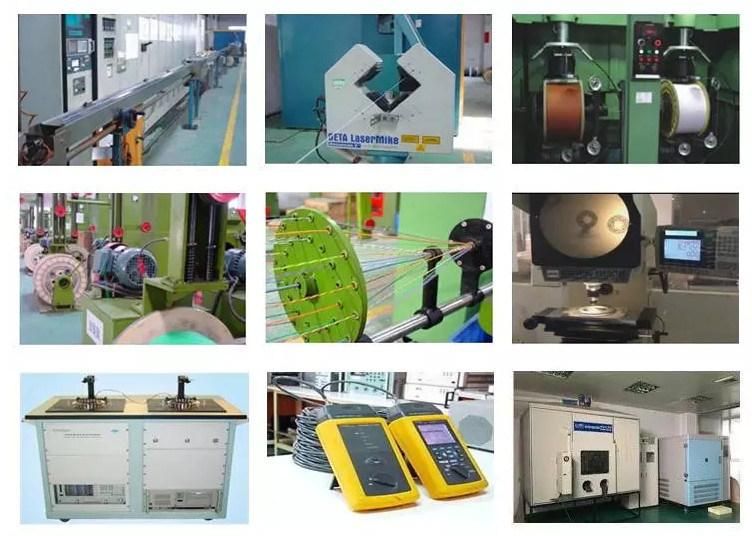

2,manufacturing shop
3,make a product
4,Packing and Shipping
