• Model NO.：RTD-G-GP
• Material Shape：Round Wire
• Range of Application：Heating
• Certification：ISO9001, CE, UL, CCC, RoHS, CSA
• Brand：Fongming
• Name：PT100 Fiberglass Insulated Rtd Shielded Cable
• Color：as Required
• Sample：3 Meters Free, 3 Days
• Customize：Available
• MOQ：1000 Meters
• Transport Package：305m Per Roll, Carton Box Outside
• Specification：3*26-3*14AWG
• Trademark：Fongming
• Origin：Yangzhou, P. R China
• HS Code：8544492100
• Production Capacity：100000000meters Per Month

Basic Info.

Model NO. RTD-G-GP Material Shape Round Wire Range of Application Heating Certification ISO9001, CE, UL, CCC, RoHS, CSA Brand Fongming Name PT100 Fiberglass Insulated Rtd Shielded Cable Color as Required Sample 3 Meters Free, 3 Days Customize Available MOQ 1000 Meters Transport Package 305m Per Roll, Carton Box Outside Specification 3*26-3*14AWG Trademark Fongming Origin Yangzhou, P. R China HS Code 8544492100 Production Capacity 100000000meters Per Month

Product Description

Product Description

PT100 Fiberglass Insulated RTD Shielded Cable

Description
Name: PT100 Fiberglass Insulated RTD Shielded Cable
Model: RTD-G-GP
Size: 3*26-3*14AWG

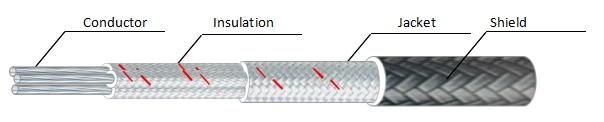

Structure
Conductor: Nickel Plated Copper
Insulation: Fiberglass Wrapping with Silicone Resin Coating
Color: 2Cores White With Red Stripe,1Core:White
Jacket: Fiberglass Braid with High Temperature Finish
Color: White With Red Stripe
Shield: Stainless Steel Wire






Size (AWG)	Conductor Structure P&N  (mm)	Diameter (mm)	Insulation Thickness (mm)	Diameter (mm)	Braid Thickness (mm)	Diameter (mm)	Shield Thickness (mm)	O.D. (mm)
3*26	7/0.16	0.48	0.2	0.9	0.2	2.3	0.2	2.5±0.2
3*24	7/0.2	0.6	0.2	1.0	0.2	2.6	0.2	2.8±0.2
3*22	7/0.25	0.75	0.2	1.2	0.2	3.0	0.2	3.2±0.2
3*20	11/0.25	0.96	0.2	1.4	0.2	3.4	0.2	3.6±0.2
3*18	17/0.25	1.19	0.2	1.6	0.2	3.8	0.2	4.0±0.2
3*16	27/0.25	1.50	0.2	1.9	0.2	4.5	0.2	4.7±0.2
3*14	42/0.25	1.87	0.2	2.3	0.2	5.4	0.2	5.6±0.2

Certifications



Company Information





Packaging&Shipping




Our Services

1. OEM service available based on official & legal authorization.

2. Strict quality control system.

3. Timely deliverly.

4. Excellent quality with affordable price.

5. Strong technical support.

6. Mobile on 24 hours for any question.

FAQ

1. Why is the price so low?
You are ordering directly from the factory.



2. Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.



3. Can I get some samples?
Yes, we are honored to offer you samples.



4. Can you make the products with my design?

Yes. customization is welcome .
