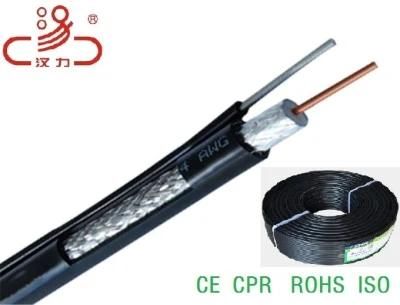

• Model NO.：Coaxial Cable 1,2, 1,2s, RG6, RG11, RG59
• Wire Core Material：Bare Copper Wire
• Certification：RoHS, CE
• Brand：Hanli
• Transport Package：305m
• Specification：30X30X30CM
• Trademark：hanli
• Origin：Zhejiang
• Production Capacity：3000000m,Month

@ Frequency MHzdB/100 ft. (MAX.)dB/100 meters (MAX.)5 MHz0.58 dB2.65 dB55 MHz1.60 dB5.25 dB83 MHz1.95 dB6.40 dB187 MHz2.85 dB9.35 dB211 MHz3.05 dB10.00 dB250 MHz3.30 dB10.82 dB300 MHz3.55 dB11.64 dB350 MHz3.85 dB12.63 dB400 MHz4.15 dB13.61 dB450 MHz4.40 dB14.43 dB500 MHz4.66 dB15.29 dB550 MHz4.90 dB16.08 dB600 MHz5.10 dB16.73 dB750 MHz5.65 dB18.54 dB865 MHz6.10 dB20.01 dB1000 MHz6.55 dB21.49 dB

4. Application:

Used as a distribution cable for indoor CATV,CCTV systems and as a connection cable for satellite systems where lower attenuation required.

5. Packing:

1)     Packing Lengths:100/roll,200m/roll,300m/roll.305m/roll
2)     Inner Packing:Wooden reel,plastic reel,and paper reel
3)     Outer Packing:Carton box,pull out box,pallet available
4)     Other packing available according to clients'request
Product Description
Mainly produce various 50 Ohm &75 Ohm Coaxial Cables and cable assemblies.

3D-FB, 5D-FB, 8D-FB, RG58, RG174, LMR100, LMR195, LMR200, LMR240, LMR400....

Connector: F, N, SMA, SMB, MCX, MMCX, Fakra, TNC, BNC.....

Cable length:20cm, 30cm, 40cm, 60cm,........can be made as per customers requirements.

 Mainly be desigend for car antennas, cellphone signal boosters, marine antennas, gps/gsm antennas

Cable Spec:


Cable Type	Inner Condcutor	Dielectric	First Shield	Second Shield	Jacket
3D-FB	1.0mm BC/CCS	3.0mm FPE	Bonded Al Foil	TC Wire Braid	5.4mm PVC
5D-FB	1.8mm BC/CCS	5.0mm FPE	Bonded Al Foil	TC Wire Braid	7.5mm PVC
8D-FB	2.8mm BC/CCA	7.80mm FPE	Bonded Al Foil	TC Wire Braid	10.6mm PVC
LMR100	0.4mm BC/CCS	1.52mm FPE	Bonded Al Foil	TC Wire Braid	2.79mm PVC
LMR195	0.94mm BC/CCS	2.79mm FPE	Bonded Al Foil	TC Wire Braid	4.95mm PVC
LMR400	2.74mm BC/CCA	7.24mm FPE	Bonded Al Foil	TC Wire Braid	10.29mm PVC
LMR600	4.47mm BC/CCA	11.56mm FPE	Bonded Al Foil	TC Wire Braid	15.00mm PVC
RG174	7*0.16mm TC/BC	1.52mm SPE	TC/BC Braid	-----	2.80mm PVC
RG58	19*0.18mmBC	2.95mm SPE	BC Braid	-----	4.95mm PVC
RG196	7*0.1mm SPCCS	0.84mm PTFE	SPC Braid	-----	1.80mm FPE
RG316	7*0.17mm SPC	1.52mm PTFE	SPC Braid	-----	2.49mm FEP
