PVC Elevator Cable H05vvf BS En 50525-2-11 4X1.5 Sqmm Flexible 309-Y H05V2V2-F 300/500V Cu/PVC/PVC Electrical Wire and Cables
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Application：Construction, Overhead, Underground, Industrial, Power Station, Telecommunication, Computer, Car
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：PVC
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：bv
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC, CE, RoHS, UL, VDE
- Model：318-Y H05VV-F
- Brand：Feiya
- Rate Voltage：300,500V
- OEM&ODM：Yes
- Intended for Use：Outdoor Use or Industrial Applications
- Transport Package：Wooden Box Packing or Pallet Shipping Containers
- Specification：solid, stranded, Flexible
- Trademark：Feiya
- Origin：China
- HS Code：8544
- Production Capacity：80000 Meter,Meters Per Month
Description
Standard and Approval
<HAR>HD 21.12; HD 308 S2, DIN VDE 0281 part 1, part 12, DIN VDE 0293 part 308, DIN VDE 0295
CEI 20-20/12, CEI 20-35 (EN60332-1) / CEI 20-37 (EN50267), CENELEC HD 21.12 S1 /EN50265-2-1

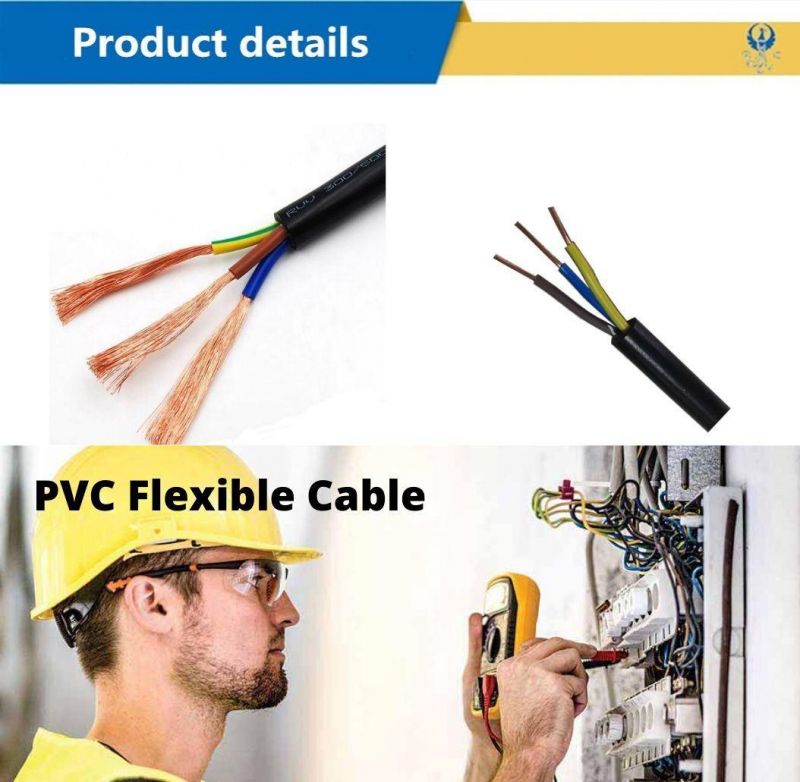

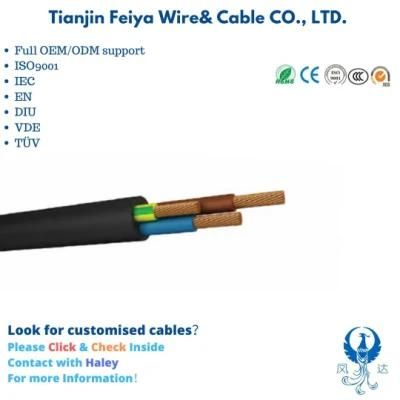

Cable Construction
- Bare copper fine wire conductor
- Stranded to DIN VDE 0295 cl. 5, IEC 60228 cl. 5 and HD 383
- PVC core insulation T13 to VDE-0281 Part 1
- Green-yellow grounding (3 conductors and above)
- Color coded to VDE-0293-308
- PVC outer jacket TM3
Technical Characteristics
- Working voltage: 300/500 volts
- Test voltage: 2000 volts
- Flexing bending radius: 15 x Ø
- Static bending radius: 4 x Ø
- Flexing temperature: +5º C to +90º C
- Static temperature: -40º C to +90º C
- Short circuit temperature: +160º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 20 MΩ x km
