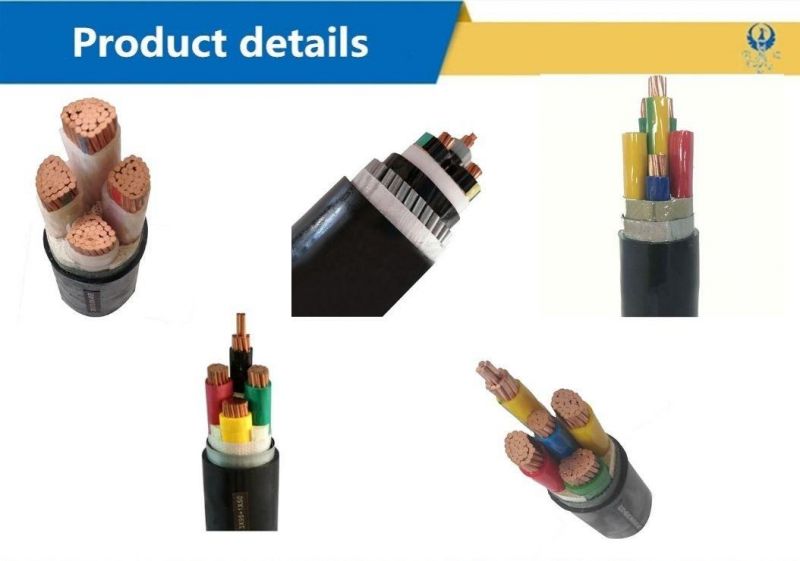

Nyy H07rn-F Fire Resistant Power Cable LSZH Fire Resistant XLPE Insulated Polyolefinsheath Armoured Electrical Power Cable

Tianjin Feiya Electric Wire & Cable Co., Ltd.
  • Application：Construction, Overhead, Underground, Industrial, Power Station, Telecommunication, Computer, Home Wire
  • Voltage：Low and Medium Voltage Cable
  • Insulation Material：Epr,XLPE,PVC,Nr+SBR
  • Sheath Material：Epr,XLPE,PVC
  • Material Shape：Flat , Round
  • Wire Core Material：Class 5 Flexible Copper Conductor

Base Info

  • Model NO.：Fire Resistant Cable
  • Certification：ISO, CCC, CE
  • Model：H05gg-F
  • Brand：Feng Da
  • Colour：Red,Green,Blue,Black,White,as Request
  • OEM/ODM：Yes
  • Flame Test：Yes
  • Transport Package：Rolls or According to Customer′s Request
  • Trademark：feiya
  • Origin：Tianjin, China
  • HS Code：8544492100

Description

Introduction1Can be customized according to requirements.2Independent brand recruitment agency.3High quality, ISO 9001, CCC, CE, RoHS certified.4ODM&OEM is available.Nyy H07rn-F Fire Resistant Power Cable LSZH Fire Resistant XLPE Insulated Polyolefinsheath Armoured Electrical Power CableNyy H07rn-F Fire Resistant Power Cable LSZH Fire Resistant XLPE Insulated Polyolefinsheath Armoured Electrical Power Cable

ELECTRICAL CHARACTERISTICS

  • Operating Voltage, Uo/U :   0.6/1KV
  • Operating Temperature : -15'C to 90'C
  • Final Short Circuit Temperature : 250′ C
  • Test Voltage : 3.5kV for 5 minutes
  • Current Carrying Capacity
    1.  Clipped Direct (Ref Method C)
      • One 3 or 4-Core Cable, 3-Phase A.C : 73A
    2. In free air or on a perforated cable tray etc,  horizontal or vertical (Ref method E)
      • One 3 or 4-Core Cable, 3-Phase A.C : 78A
    3. Direct in Ground or in ducting in ground, in or around building (Ref method D)
      • One 3 or 4-Core Cable, 3-Phase A.C : 58A

REFERENCE STANDARD

  • Design Specification: IEC60502-1
  • Conductor: IEC60228, BS EN60228
  • Flame Retardancy: IEC60332-1, BS EN60332-1

INSTALLATION REFERENCE

  • Minimum Bending Radius(mm): 8 x cable overall diameter
  • Max. Pulling Tension (N/mm2) : 70
