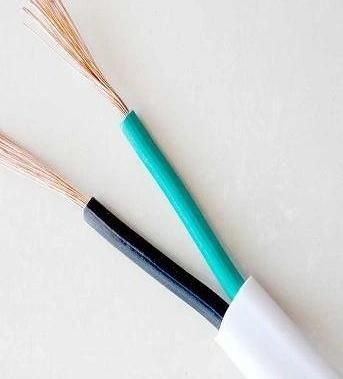

Bort UL1672 Electrical Wiring Cable Manufacturing Bare Copper Conductor PVC Insulation Electric Wires Cables
B&T (Zhangzhou) Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Internal Wiring
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：PVC
Base Info
- Model NO.：UL1672
- Material Shape：Round Wire
- Range of Application：Internal Wiring
- Certification：ISO9001, CE, UL, RoHS, VDE
- Brand：Bort
- Conductor：Stranded, Tinned or Bare Copper Conductor Sample
- Sample：Conventional Sample Free Conductor
- Producing Experience：10 Years
- No. of Cores：One Core or Multi-Cores
- Colors：Could Be Customized Color
- Delivery Time：in 7-10days
- Packing：100m,Roll, 305m,Roll, Wrap Plastic Film Packaging
- Company Type：Manufacturer
- Factory Directly：Big Discount with Large Order
- Transport Package：Coil,Spool,Carton,Pallet,
- Specification：Customize
- Trademark：BORT
- Origin：China
- HS Code：8544492900
- Production Capacity：300000km,Year
Description
AWGNO.of Cond Insulation Thick. Outside Thick. Packing mm mm mm m/r Ω/mm 28 7/0.127 0.45 0.45 2.20 223.75 26 7/0.16 0.45 0.45 2.30 139.76 24 11/0.16 0.45 0.45 2.40 88.36 22 17/0.16 0.45 0.45 2.60 60.16 20 21/0.178 0.45 0.45 2.80 38.58 18 34/0.178 0.45 0.45 3.00 22.98 16 26/0.254 0.45 0.45 3.30 15.06 14 41/0.254 0.45 0.45 3.70 9.65 12 65/0.254 0.45 0.45 4.20 6.07 28 1/0.320 0.45 0.45 2.12 227.39 26 1/0.404 0.45 0.45 2.20 142.79 24 1/0.511 0.45 0.45 2.31 89.39 22 1/0.643 0.45 0.45 2.44 54.30 20 1/0.813 0.45 0.45 2.61 33.90 18 1/1.024 0.45 0.45 2.82 21.40
