a Leading Factory Wholesale UL1569 PVC Insulated Electrical Wire
Ningbo A-Line Cable & Wire Co., Ltd.- Conductor Type：Stranded
- Conductor Material：Copper
Base Info
- Model NO.：UL1569
- Sheath Material：PVC
- Insulation Material：PVC
- Certification：ISO9001, UL, RoHS
- Materials：PVC
- Length：as Per Customer′s Requirement
- Color：as Per Customer′s Requirement
- Testing：Passes UL Vw-1 Vertical Flame Test
- Reference Standard：UL758 UL1581
- Rated Voltage：300V
- Environmental Standard：RoHS
- Conductor：Copper
- Transport Package：in Export Carton
- Specification：RoHS
- Trademark：A-Line
- Origin：China
- HS Code：3320962150
- Production Capacity：30000000m,Per Month
- Package size per unit product：10.00cm * 10.00cm * 5.00cm
- Gross weight per unit product：0.500kg
Description
Maximum
Resistance
At 20ºC
Ω/kmPacking Spec
AWG Conductor
construction
No./φmm Diameter
(mm) Nominal
thickness
(mm) Nominal outer
diameter
(mm) M/Coils 30 7/0.102 0.3 0.40 1.10 381 610 28 7/0.127 0.38 0.41 1.20 239 610 26 7/0.16 0.48 0.41 1.30 150 610 24 11/0.16 0.61 0.40 1.40 94.2 610 22 17/0.16 0.76 0.42 1.60 59.4 610 20 26/0.16 0.94 0.43 1.80 36.7 610 18 41/0.16 1.18 0.46 2.10 23.2 610 16 26/0.254 1.49 0.46 2.40 14.6 305 14 41/0.254 1.88 0.41 2.7 8.96 305 12 65/0.254 2.36 0.42 3.2 5.64 305 10 105/0.254 3.00 0.45 3.9 3.546 305
HOT PRODUCTS
CERTIFICATE

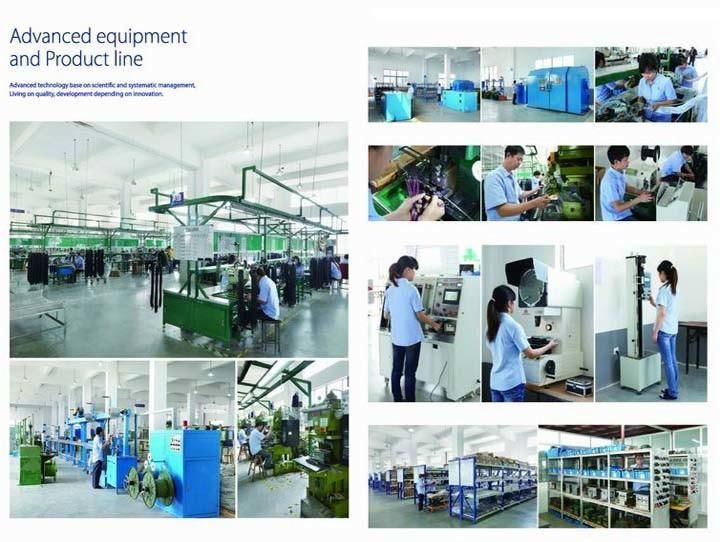

FACTORY SHOW
Please attention
1. Factory direct price.
2. Nice quality.
3. Small order welcome
4. Quality is the soul of an enterprise.
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
Resistance
At 20ºC
Ω/km
AWG
construction
No./φmm
(mm)
thickness
(mm)
diameter
(mm)
HOT PRODUCTS
CERTIFICATE
FACTORY SHOW
Please attention
1. Factory direct price.
2. Nice quality.
3. Small order welcome
4. Quality is the soul of an enterprise.
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
Why choose us?
1. Advanced process equipment
2. Competitive price and high quality
3. Excellent after-sale service
4. Attractive design and various styles
5. Strict quality assurance system and perfect testing means
6. Advanced process equipment
7. Delivery on time
8. Have a good reputation in the domestic and overseas.
