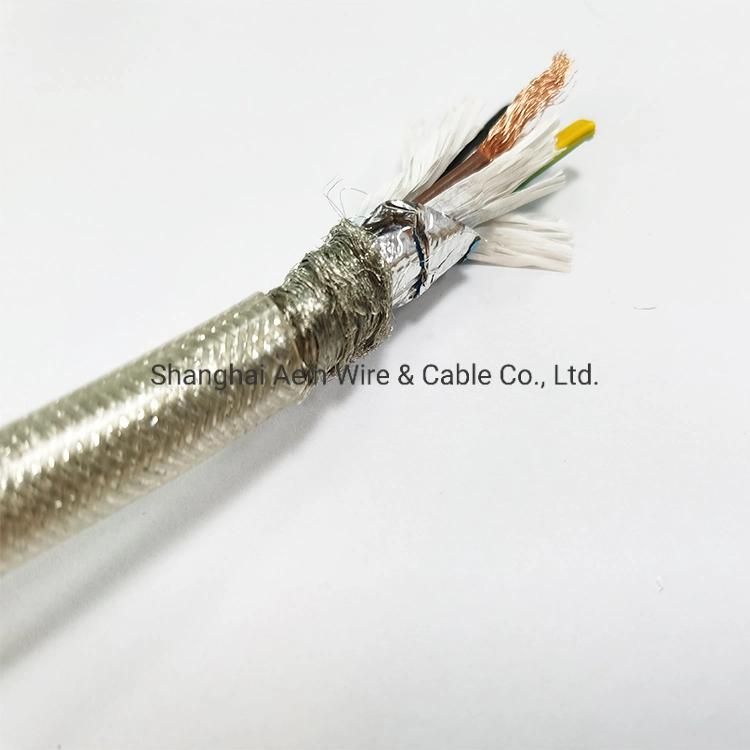

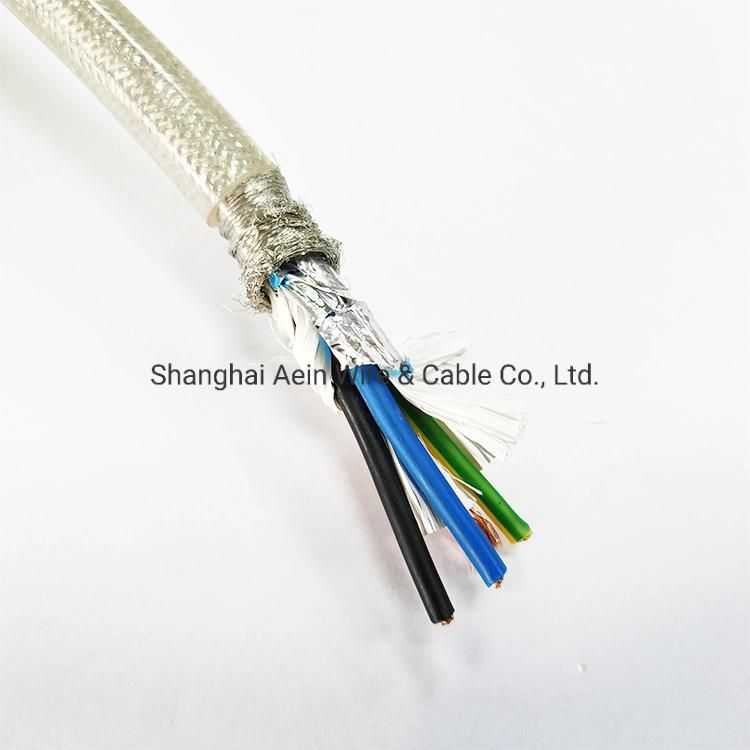

Rz1mz1-K (AS) LSZH Cable with Steel Wire Armour TUV Certified

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Overhead, Heating, Underground, Machine
  • Conductor Material：Copper
  • Sheath Material：Thermoplastic Polyolefin Sheath
  • Insulation Material：XLPE

Base Info

  • Model NO.：RZ1MZ1-K(AS) Cable
  • Material Shape：Round Wire
  • Range of Application：Refractory
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multiple core
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemRZ1MZ1K(AS) Cable ConductorClass 5 flexible copperInsulationXLPEInner SheathThermoplastic polyolefin sheathArmourCrown galvanized steel wire (M - multipolar) or aluminum wireOuter SheathThermoplastic polyolefin sheathNominal VoltageU0/U: 0.6/1kVTest voltage3500 VTemperature RangeNormal operation 90°C. Short circuit (5sec) 150°CColorOptionalCertificationCEApplicationHFFR and armour cables RZ1MZ1-K(AS) / RZ1MAZ1-K(AS) are highly recommended in hazardous areas with explosive gas atmospheres (ATEX) or with risk of fire (Petrochemical plants, gas stations, flammable product stores, etc.) and in general, where the cable is subject to risk of mechanical aggression.
