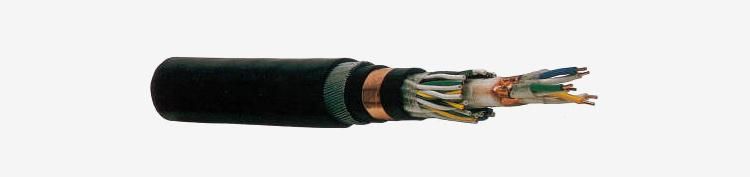

Pilot Cables 16 and 34 Core Cables Cu/PE/Swa/PVC
Henan Hongda Cable Co., Ltd.- Type:Insulated
- Conductor Type:Stranded
- Application:Underground
- Conductor Material:Aluminum
- Sheath Material:PVC
- Insulation Material:XLPE
Base Info
- Model NO.:Pilot Cable
- Material Shape:Round Wire
- Range of Application:Flame Retardant
- Certification:ISO9001, CCC
- Transport Package:Wooden Drum
- Specification:16mm
- Trademark:OEM
- Origin:China(Mainland)
- HS Code:8544492100
- Production Capacity:50 Kilometer,Month
Description
Basic Info.
Model NO. Pilot Cable Material Shape Round Wire Range of Application Flame Retardant Certification ISO9001, CCC Transport Package Wooden Drum Specification 16mm Trademark OEM Origin China(Mainland) HS Code 8544492100 Production Capacity 50 Kilometer/MonthProduct Description
MAKE-UP OF THE 16 CORE PILOT CABLE.
- a) 2-Cores (one pair), each core shall consist of copper conductor of 2.5 sq. mm. polyethylene insulated, the two cores twisted together and screened for use with Slokar protection system.
b) 4-cores (two pairs), each core 2.5 sq.mm. polyethylene insulated unscreened and each pair twisted separately for use with inter-tripping and interlocking protection system.
c) 4 cores (two pairs) each core 0.635 sq. mm. polyethylene insulated and each pair twisted separately and the two pairs screened together with aluminium foil for use with the telephone system.
d) 6 cores (three pairs), each core 0.635 sq. mm. unscreened and polyethylene insulated. Each pair shall be separately twisted for use with indication system.
CONDUCTORS
The conductors shall comply with B.S. 6360 in so far as applicable for plain annealed copper wires.
INSULATION
The core shall be insulated with LLDPE ( Linear Low Density Polyethylene ) of type (03) compound in accordance with B.S. 6234. The insulation thickness shall not be less than 0.5 mm.
INNER SHEATH (BEDDING):
The inner sheath shall consist of an extruded covering of black polyethylene, which shall be type (03C) compound in accordance with B.S. 6234/69. The thickness of the inner sheath shall not be less than 1.0 mm.
ARMOUR
The armour shall consist of one layer of galvanized steel wire complying with requirements of BS E.N 10257-1 (metric units) diameter not less than 1.25mm.
N.B: These cable shall be designed to withstand induced voltage level up to 5 KV. However, the above insulation and inner sheath thickness and armour wire diameter are minimum and may have to be increased to suit the above induced voltage level.
OVERALL SHEATH
The overall sheath shall consist of an extruded PVC jacket. It shall be also black in colour and withstand without deterioration during storage and site conditions.
The PVC shall comply with B.S. 7655 section 4.2 for PVC type 9. The thickness of PVC overall sheath shall not be less than 1.7 mm.
Packing shipping
Why Choose Us ?
1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10.We have a good reputation in the overseas
If you have another question, pls feel free to contact us below
