Cable Xz1 Al S 0.6/1kv 1X300mm2 Al/XLPE/Lsoh Halogen Free Single Core
Henan Hongda Cable Co., Ltd.- Application：Construction, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：Lsoh
- Material Shape：Round Wire
Base Info
- Model NO.：Cable XZ1 AL S
- Wire Core Material：Aluminum
- Certification：ISO, CCC
- Model：Cable Xz1 Al S
- Brand：OEM
- Product Name：Cable Xz1 Al S 0.6,1kv 1X300mm2 Al,XLPE,Lsoh
- Conductor：Aluminum
- Number of Core：Single Core
- Packaging：Wooden Drum
- Transport Package：Wooden Drum
- Specification：1.5mm2 to 400mm2
- Trademark：OEM
- Origin：China(Mainland)
- HS Code：8544492100
- Production Capacity：500 Kilometer,Month
Description
Basic Info.
Model NO. Cable XZ1 AL S Wire Core Material Aluminum Certification ISO, CCC Model Cable Xz1 Al S Brand OEM Product Name Cable Xz1 Al S 0.6/1kv 1X300mm2 Al/XLPE/Lsoh Conductor Aluminum Number of Core Single Core Packaging Wooden Drum Transport Package Wooden Drum Specification 1.5mm2 to 400mm2 Trademark OEM Origin China(Mainland) HS Code 8544492100 Production Capacity 500 Kilometer/MonthProduct Description
XZ1 AS AL is an aluminium conductor LSZH cable for fixed installations. These cables are especially recommended for installation in public places and in instalations where safety is a priority.
1. Applications: a. Industrial use. b. Distribution network.

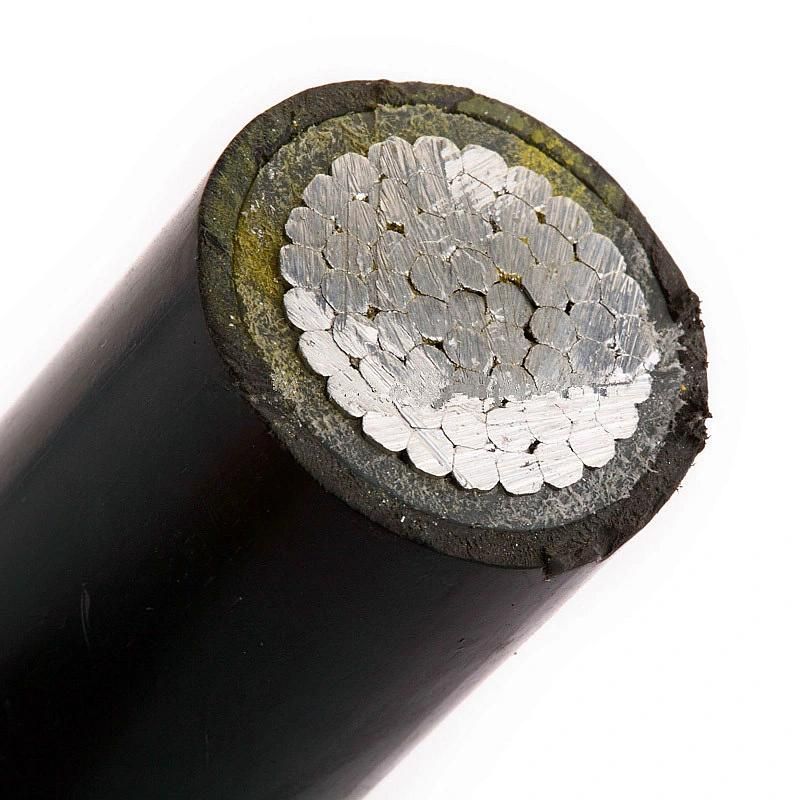

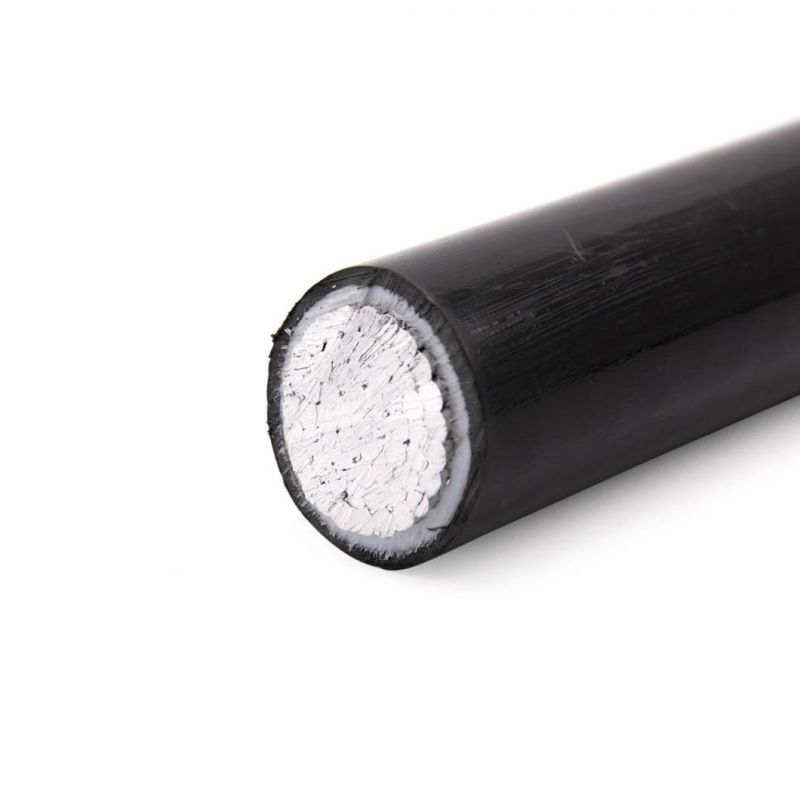

2. Cable structure
Conductor: Aluminium, class 2, based on UNE-EN 60228 and IEC 60228.
Insulation: Cross-linked polyethylene (XLPE).
Outer sheath: Low Smoke Zero Halogen (LSZH) polyolefin. Black, red, green color, non-toxic and fire retardant.
3. Electrical performance
AC 0,6/1kV, DC 1.5KV
4. Standard: IEC 60502-1 / UNE 21123-4
5. Approvals: RoHS
6. Thermal performance
Maximum service temperature: 90ºC.
Maximum short-circuit temperature: 250ºC (max. 5 s).
Minimum service temperature: -40ºC (fixed and protected installations).
7. Fire performance
Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1. Fire non-propagation based on UNE-EN 60332-3 and IEC 60332-3. LSZH (Low Smoke Zero Halogen) based on UNE-EN 60754-1 and IEC 60754-1.
Low smoke emission based on UNE-EN 61034 and IEC 61034: Light transmittance > 60%
Low corrosive gases emission based on UNE-EN 60754-2 and IEC 60754-2.
8. Mechanical performance
Minimum bending radius: x 5 cable diameter.
Impact resistance: AG2 Medium severity.
9. Chemical performance
Chemical & Oil resistance: Acceptable.
UV Resistant: UNE 211605.
Water performance
Water resistance: AD5 Jets.
10. Other
a. Pringting: Meter by meter.
b. Installation conditions: Open Air, Buried, In conduit.
