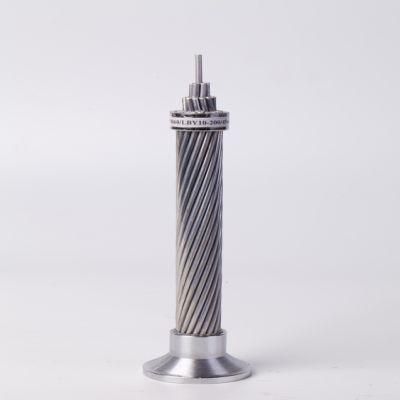

12/20 Kv Self-Supporting Protected Insulated Single-Core High-Voltage Wire 70 mm Sax-W Cable

Henan Hongda Cable Co., Ltd.
  • Application：Overhead
  • Voltage：Low and Medium Voltage Cable
  • Current：DC Cable
  • Insulation Material：XLPE
  • Sheath Material：Crosslinking
  • Material Shape：Round Wire

Base Info

  • Model NO.：sax-w cable
  • Wire Core Material：Aluminum
  • Certification：CCC, SGS
  • Model：Jklyj
  • Brand：Hongda
  • Rated Voltage：600,1000V
  • Construction：AAC , XLPE or PE
  • Service：OEM, ODM
  • Transport Package：1000m Per Drum, 5000m Per Drum
  • Specification：2x10mm2 abc cable, 2x16mm2 abc cable
  • Trademark：Hongda, or OEM
  • Origin：China
  • HS Code：8544492100
  • Production Capacity：25000km,Year

Description

Rated voltage20 kV and 35 kVNominal conductor cross-section25 - 240 mm²Ambient temperature during operationfrom -60 °C up to +50 °CWires are resistant to the effects of solar irradiationSealed conductors of wires are resistant to longitudinal propagation of waterMinimal temperature of wire laying without pre-heating-20 °CMaximum permissible temperature for the conductors heating:
  • Self-supporting protected insulated single-core high-voltage wire SIP-3 20 kV1×3512.001861×5013.002151×7015.002821×9516.003641×12018.004451×15019.005401×18521.007221×24024.00950Self-supporting protected insulated single-core high-voltage wire SIP-3 35 kV1×3514.002091×5016.002631×7017.003341×9519.004211×12020.005181×15022.006181×18524.008081×24026.001045

    Breaking strength of conductors of self-supporting protected wire is described next table:

    Nominal conductor cross-section, mm²Breaking strength of conductor, kN, not less257.43510.35014.27020.69527.912035.215043.418553.524069.5

    Permissible current loads calculated for the ambient temperature +25°C, wind speed 6 m/s and solar radiation intensity 1000 Vt/m², and permissible short-circuit currents for these wires are described in cross-section «Reference data».

    Wires are bending - resistant during installation. Suspension of wires in overhead power lines must meet the requirements of Electrical Installation Regulations.

    Manufactured wire lengths may be agreed with the customer request. Transportation and storage of wire must accordance with GOST 18690.

    The manufacturer can ensure compliance of wire quality with requirements of DSTU 4743 and current technical specification, provided all terms of transportation, storage, installation and use have been observed.

    On customers request other marking of wire is allowed.

    Wires are delivered on drums.

    All products are certified.
