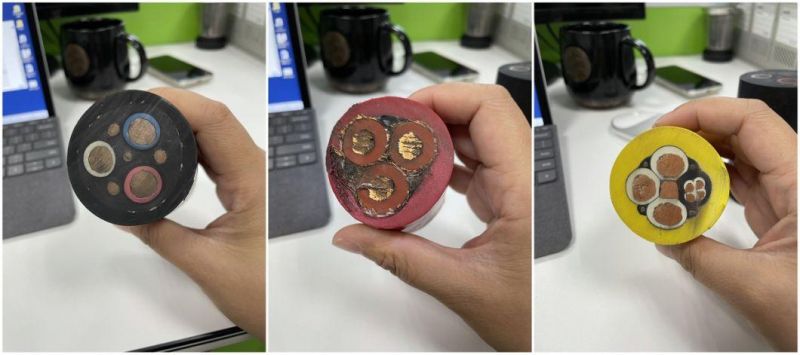

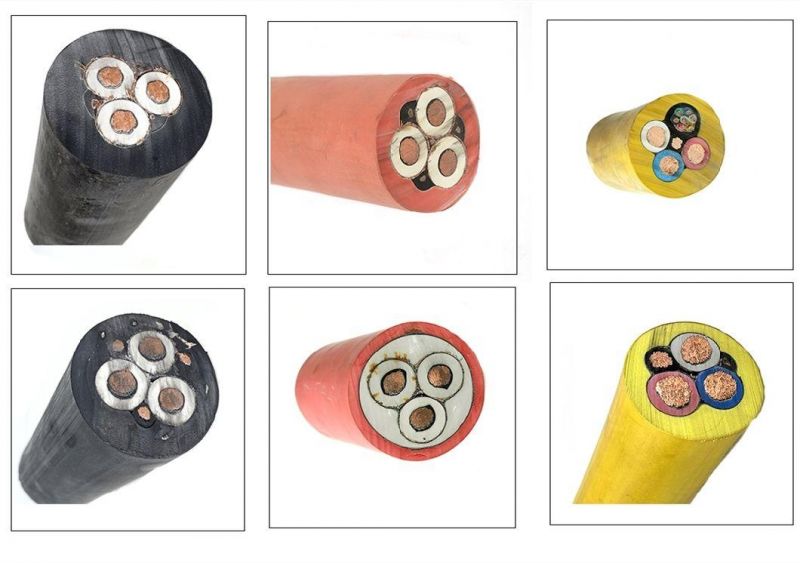

Type 241 China Manufacturer Mcpt Rubber Sheathed Stranded Flexible Multicore Coal Mining Cables
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Power Connection for Coal-Mining Machine
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：Rubber
Base Info
- Model NO.：Mcptj 1.9 3.3kv
- Material Shape：Round Wire
- Range of Application：Power Connection for Coal-Mining Machine
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE
- Brand：Feiya
- Sheath：XLPE
- OEM：Yes
- Transport Package：Wooden Box Packing or Pallet Shipping Containers
- Specification：copper
- Trademark：Feiya
- Origin：China
- HS Code：854449210
- Production Capacity：50K Meter Per Year
Description
Applications:YFFB Series Cable is special designed for frequent motion and flexing. This cable
can be used for festoon systems, power tracks, cable tenders, cranes and hoists.
Feature:
Sheath: Special polychloreprene (Butadiene-Acrylonitrile Rubber) which is flame
resistance and self-extinguishing.
Conductor: Superfine Soft Bare Copper which purity can reach 99.999%.
Insulation: Special polychloreprene (Butadiene-Acrylonitrile Rubber)
Technical data:
Rated voltage: ≤1.5mm2 300/500V >1.5mm2: 450V/750V
Test voltage: ≤1.5mm2 2500V >1.5mm2: 3000V
Temperature range: -20°C to +80°C
| Model | Qty of Cores | Section of Cores mm2 | Width of Cable mm | Thickness of Cable mm | Weight kg/km |
| YFFB | 4 | 1.5 | 16.3 | 5.8 | 198.4 |
| YFFB | 4 | 2.5 | 18.7 | 6.6 | 268.4 |
| YFFB | 4 | 4 | 21.9 | 7.3 | 367.7 |
| YFFB | 4 | 6 | 26.9 | 8.0 | 507.6 |
| YFFB | 4 | 10 | 34.5 | 9.7 | 784.1 |
| YFFB | 4 | 16 | 38.5 | 10.7 | 1074 |
| YFFB | 4 | 25 | 47 | 12.8 | 1575 |
| YFFB | 4 | 35 | 56.6 | 15.2 | 2245 |
| YFFB | 6 | 1.5 | 23.3 | 5.8 | 282.8 |
| YFFB | 6 | 2.5 | 26.9 | 6.6 | 386.5 |
| YFFB | 6 | 4 | 31.7 | 7.3 | 534.2 |
| YFFB | 6 | 6 | 38.7 | 8.0 | 737 |
| YFFB | 6 | 10 | 50.1 | 9.7 | 1148 |
| YFFB | 6 | 16 | 56.1 | 10.7 | 1580 |
| YFFB | 6 | 25 | 68.6 | 12.8 | 2322 |
| YFFB | 6 | 35 | 82.6 | 15.2 | 3311 |
| YFFB | 8 | 1.5 | 29.3 | 5.8 | 358.8 |
| YFFB | 8 | 2.5 | 36 | 6.6 | 513.3 |
| YFFB | 8 | 4 | 40.5 | 7.3 | 690 |
| YFFB | 8 | 6 | 48.9 | 8.0 | 947.7 |
| YFFB | 8 | 10 | 63.9 | 9.7 | 1486 |
| YFFB | 8 | 16 | 71.9 | 10.7 | 2057 |
| YFFB | 8 | 25 | 88.2 | 12.8 | 3031 |
| YFFB | 10 | 1.5 | 35.3 | 5.8 | 434.7 |
| YFFB | 10 | 2.5 | 41.3 | 6.6 | 603.3 |
| YFFB | 10 | 4 | 49.3 | 7.3 | 845.9 |
| YFFB | 10 | 6 | 59.1 | 8.0 | 1158 |
| YFFB | 10 | 10 | 77.7 | 9.7 | 1824 |
| YFFB | 10 | 16 | 87.7 | 10.7 | 2535 |
| YFFB | 12 | 1.5 | 41.3 | 5.8 | 51.7 |
| YFFB | 12 | 2.5 | 48.5 | 6.6 | 711.8 |
| YFFB | 16 | 1.0 | 47.1 | 4.8 | 475.5 |
| YFFB | 16 | 1.5 | 54.3 | 5.8 | 671 |
| YFFB | 16 | 2.5 | 63.9 | 6.6 | 838.3 |
| YFFB | 20 | 1.0 | 58.3 | 4.8 | 587.9 |
| YFFB | 20 | 1.5 | 67.3 | 5.8 | 831.4 |
| YFFB | 20 | 2.5 | 79.3 | 6.6 | 1165 |
