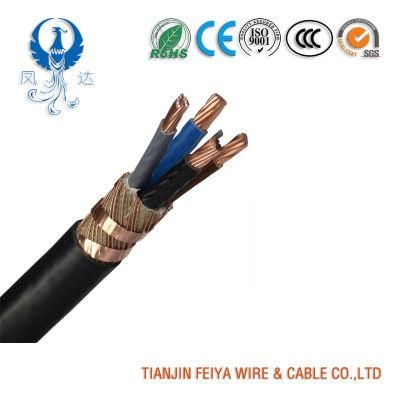

Feiya Copper Conductor Epr Insulation Pcp Sheath Flexible Rubber Power Cable Low Voltage Cable Control Cable Electric Cable Wire
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead, Heating, Underground, Static Outdoor Application
- Conductor Material：Copper
- Sheath Material：Pcp
- Insulation Material：Epr
Base Info
- Model NO.：Rubber cable
- Material Shape：Round Wire
- Range of Application：Mine
- Certification：ISO9001, CE, CCC, RoHS, VDE, TUV
- Brand：Fengda
- Colour：Red,Green,Blue,Black,White,as Request
- Flame Test：Yes
- OEM/ODM：Accepted
- Core：Single Core and Multicore
- Factory Type：Manufacturer
- Transport Package：Rolls or According to Cusotmers′ Reques
- Specification：1 to 400mm2
- Trademark：fengda
- Origin：Tianjin, China(Mainland)
- HS Code：8544492100
- Production Capacity：5000000km,Year
Description
| Extreme temperature range: | (-40oC to 105oC) can withstand the extremes of automotive environments |
| Epr Cable range: | 0GA, 2GA, 4GA, 6GA, 8GA, 10GA, 12GA, 14GA, 15GA, 16GA, 18GA, 20GA and ultra classic strands |
| High strand counts | High strand counts |
| Conductor Type | Stranded 99.99% OFC (oxygen free copper), and tin plated copper,copper coated al |
| Insulation: | Rubber (type EPR) |
| Material | Environmentally friendly, quality, glossy material Tinned, Silver or Nickel plated copper etc. |
| Outer sheath: | Flexible rubber. Black colour. |
| Epr Cable Colour: | Customized |
Technical Parameters:
Current ratings for single-core Cables with EPR insulation - Rated voltage 3.6/6 kV to 18/30 kV - Copper conductor| Nominal area of conductor | Buried directly in the ground | In single-way ducts | In Air | ||||
|---|---|---|---|---|---|---|---|
| mm² | A | A | A | A | A | A | A |
| 16 | 109 | 106 | 100 | 99 | 119 | 116 | 138 |
| 25 | 140 | 136 | 129 | 128 | 156 | 153 | 181 |
| 35 | 167 | 162 | 154 | 153 | 190 | 186 | 221 |
| 50 | 198 | 192 | 183 | 181 | 229 | 224 | 266 |
| 70 | 242 | 234 | 224 | 222 | 287 | 280 | 334 |
| 95 | 289 | 280 | 269 | 266 | 352 | 343 | 409 |
| 120 | 329 | 319 | 306 | 303 | 407 | 398 | 474 |
| 150 | 369 | 357 | 344 | 341 | 465 | 454 | 540 |
| 185 | 417 | 403 | 390 | 386 | 534 | 522 | 621 |
| 240 | 484 | 467 | 454 | 449 | 634 | 619 | 736 |
| 300 | 545 | 526 | 515 | 509 | 728 | 712 | 843 |
| 400 | 618 | 597 | 588 | 580 | 843 | 825 | 977 |

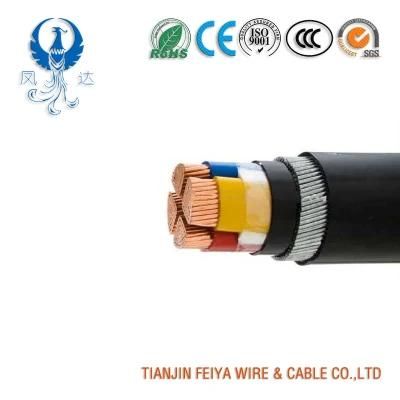

EPR PCP Multi Core Cables
| EPR PCP Multi Core Cables | ||||
| Core and Size sq | Stranding (Number of Strand/Strand Diameter | Nominal Overall Diameter | Thickness of Sheath | Approx. Weight kg/km |
| 7 X 1.05 | 30/0.050 | 14.06 | 0.08 | 295 kg/km |
| 7 X 2.05 | 50/0.025 | 16.06 | 0.09 | 410 kg/km |
| 12 X 1.05 | 30/0.050 | 18.09 | 0.08 | 500 kg/km |
| 12 X 2.05 | 50/0.025 | 22 | 0.09 | 720 kg/km |
| 19 X 1.05 | 30/0.050 | 22.05 | 0.08 | 715 kg/km |
| 19 X 2.05 | 50/0.025 | 26 | 0.09 | 1030 kg/km |
| 24 X 1.05 | 30/0.050 | 25 | 0.08 | 900 kg/km |
| 24 X 2.05 | 50/0.025 | 29 | 0.09 | 1350 kg/km |
| 27 X 1.05 | 30/0.050 | 29 | 0.08 | 1100 kg/km |
| 27 X 2.05 | 50/0.025 | 33 | 0.09 | 1521 kg/km |
| 37 X 1.05 | 30/0.050 | 29.08 | 0.08 | 1300 kg/km |
| 37 X 2.05 | 50/0.025 | 36 | 0.09 | 1900 kg/km |
| Core and Size sq | Stranding (Number of Strand/Strand Diameter | Nominal Overall Diameter | Thickness of Sheath | Approx. Weight kg/km |
| 7 X 1.05 | 30/0.050 | 14.06 | 0.08 | 295 kg/km |
| 7 X 2.05 | 50/0.025 | 16.06 | 0.09 | 410 kg/km |
| 12 X 1.05 | 30/0.050 | 18.09 | 0.08 | 500 kg/km |
| 12 X 2.05 | 50/0.025 | 22 | 0.09 | 720 kg/km |
| 19 X 1.05 | 30/0.050 | 22.05 | 0.08 | 715 kg/km |
| 19 X 2.05 | 50/0.025 | 26 | 0.09 | 1030 kg/km |
| 24 X 1.05 | 30/0.050 | 25 | 0.08 | 900 kg/km |
| 24 X 2.05 | 50/0.025 | 29 | 0.09 | 1350 kg/km |
| 27 X 1.05 | 30/0.050 | 29 | 0.08 | 1100 kg/km |
| 27 X 2.05 | 50/0.025 | 33 | 0.09 | 1521 kg/km |
| 37 X 1.05 | 30/0.050 | 29.08 | 0.08 | 1300 kg/km |
| 37 X 2.05 | 50/0.025 | 36 | 0.09 | 1900 kg/km |
EPR Insulated Cables Application
- electrical tools
- household electrical appliances
- various mobile electrical equipments.
