Cable & Wire

Duplex Conductor 600V Secondary Type Urd Cable-Aluminum Conductor

YIFANG ELECTRIC GROUP INC.
  • Type:Insulated
  • Conductor Type:Stranded
  • Application:Overhead
  • Conductor Material:Aluminum
  • Sheath Material:Crosslinking
  • Insulation Material:XLPE

Base Info

  • Model NO.:URD
  • Material Shape:Round Wire
  • Range of Application:Overhead
  • Certification:ISO9001, CCC
  • Brand:Yifang
  • Color:Black
  • Cable Marking:Printing, Embossed or Laser
  • Transport Package:Wooden Drum
  • Specification:ABC
  • Trademark:Yifang
  • Origin:China
  • HS Code:8544492100
  • Production Capacity:1000km Per Month

Description

Basic Info.

Model NO. URD Material Shape Round Wire Range of Application Overhead Certification ISO9001, CCC Brand Yifang Color Black Cable Marking Printing, Embossed or Laser Transport Package Wooden Drum Specification ABC Trademark Yifang Origin China HS Code 8544492100 Production Capacity 1000km Per Month

Product Description

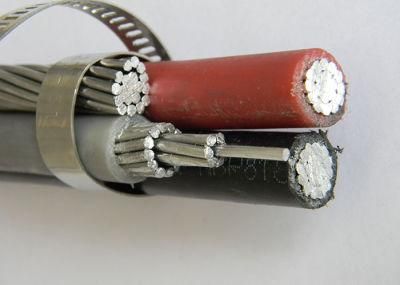

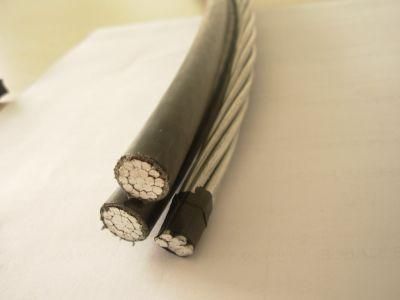

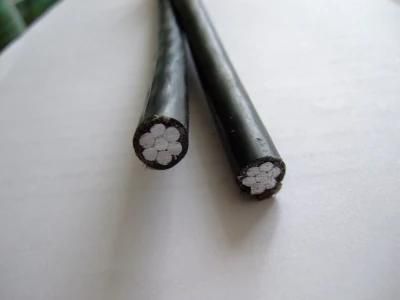

Aerial Bundle Cable
1.Applications

To supply 120 volt aerial service for temporary service at
construction sites, outdoor or street lighting. For service at 600 volts
or lower at a conductor temperature of 75 maximum.

2. Construction

Concentric strand or compressed 1350-H19 conductor, polyethylene
or cross linked polyethylene insulation, concentric strand
AAC, ACSR, or 6201 alloy neutral messenger.

3. Standards

Secondary UD duplex conductor 600V cable meets or exceeds the following ASTM specifications.
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
B-231 Aluminum 1350 conductors, Concentric-Lay-Stranded.
B-786 19 Wire combination unitary-stranded Aluminum Conductors for subsequent insulation .
B-901 Compressed round stranded Aluminum Conductors using single input wire construction .
Secondary UD duplex conductor 600V cable meets or exceeds all applicable requirements of ICEA
S-105-692.
USE-2 per UL 854 available upon request.
