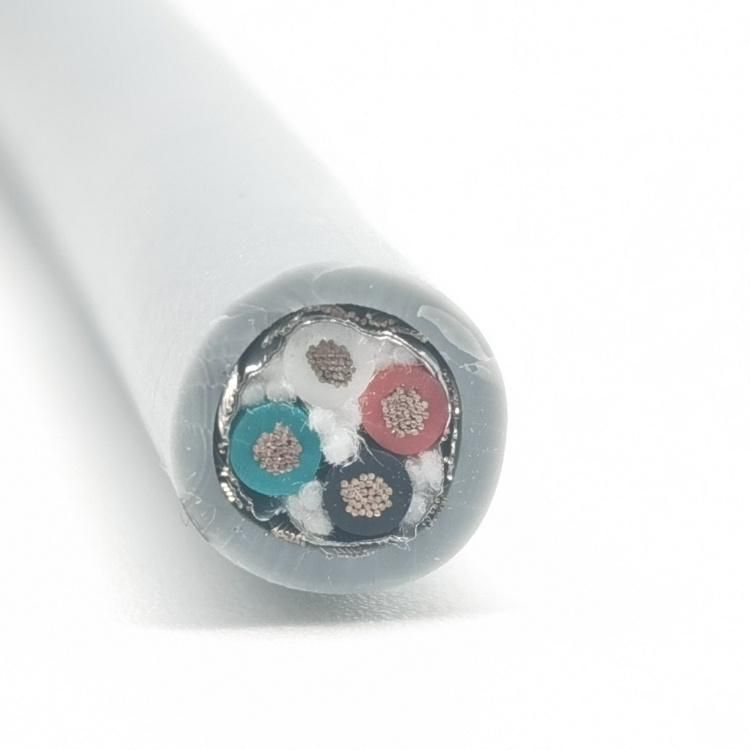

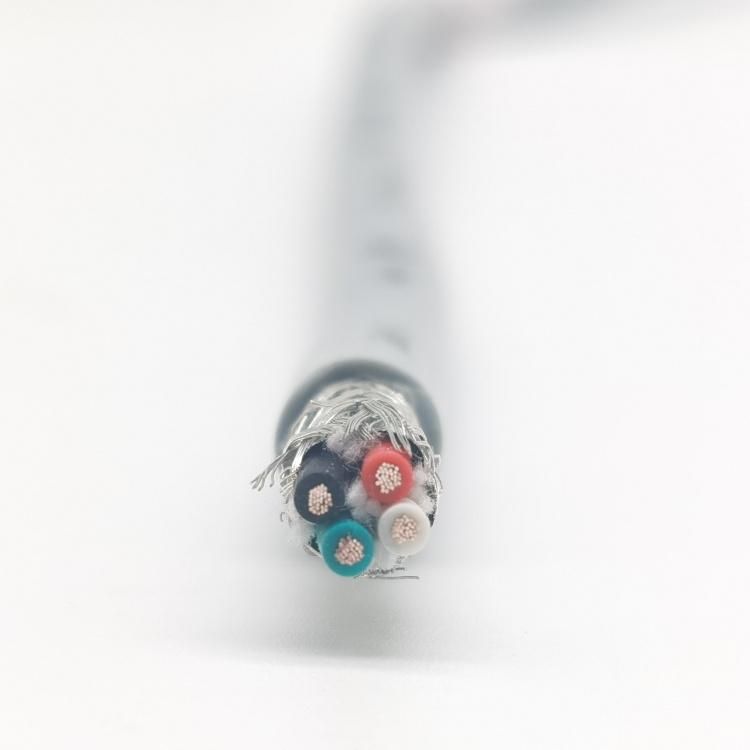

Anf9003 Cable Twisted Pair Shield PUR Sheath Towline Cable for Transmission Occasions

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：Special Thermoplastic Polyurethane
  • Insulation Material：High Temperature Thermoplastic Compound
  • Material Shape：Round Wire

Base Info

  • Model NO.：ANF9003 Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemANF9003 Cable Twisted Pair Shield PUR Sheath Towline CableConductorSolid copper conductorInsulationHigh temperature thermoplastic compoundShieldTinned copper wire braid,coverage rate 80%Outer SheathSpecial Thermoplastic PolyurethaneCore NumberMulti-coresOperating VoltageUo/U: 300/300 V & 300/500 VTest voltage1500/2000 V Operating temperature rangeFlexible installations:-40ºC ~ +90ºC
Fixed installations:-50ºC ~ +90ºCColorOptionalApplicationThe cable adopts the core-shield twisted overall shielding structure, which can be used for transmission occasions that are easily affected by external high-frequency electric fields. It can be widely used in outdoor and indoor occasions under extremely harsh environments. It has good resistance to tearing and abrasion, and good resistance to mineral oil, refrigerant, hydrolysis, and mold. The mesh shielding layer composed of high-density and high-conductivity material can ensure that the cable still has strong anti-interference ability during the process of bending back and forth. It can be used in steel plants, mining machinery, cold outdoor, wet and humid indoor and outdoor environments in the north, energy chains, industrial robots, production lines,automated control systems, and other applications requiring high-speed reciprocating movement.
