Aster Conductor AAC Overhead Cable 2/0AWG All Aluminium Conductor
Luoyang Sanwu Cable Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminum
- Sheath Material：Bare
- Insulation Material：No Insulation
Base Info
- Model NO.：AN-AAC-006
- Material Shape：Round Wire
- Range of Application：Overhead LV, Mv, Hv
- Certification：ISO9001, CE, CCC, RoHS, Ohsas
- Brand：Dayuan
- Product Name：Overhead All Aluminium Stranded AAC Conductor
- Standard：CSA IEC ASTM DIN BS GOST Sas
- Applicable Voltage：Low Voltage, Medium Voltage, High Voltage
- Type of Conductor：Stranded, Bare
- Certificate：ISO9001, CCC, CQC, Ohsas, TUV, etc.
- Transportation：by Sea or as Your Requirement
- Supplier′s Nature：Manufacturer, Exporter
- Core：According to Your Requirement
- Manufacturer Experience：Since 2006
- Factory Area：200,081mm2
- Transport Package：Wooden Drum,Wooden Steel Drum,Rolls
- Specification：1.5-800mm2
- Trademark：Dayuan
- Origin：Luoyang, Henan, China
- HS Code：76149000
- Production Capacity：100, 000m,Day
Description
Maximunm Resistance
@20°CAWG o MCM in² mm mm kg/km kg Ω/km Peachbell 6 13.3 7×1.56 4.66 36.6 254 2.170 Rose 4 21.15 7×1.96 5.88 58.3 399 1.364 Iris 2 33.62 7×2.47 7.42 92.7 611 0.857 Pansy 1 42.41 7×2.78 8.33 117 740 0.681 Poppy 1/0 53.51 7×3.12 9.36 147.5 897 0.539 Aster 2/0 67.44 7×3.50 10.51 186 1136 0.427 Phlox 3/0 85.02 7×3.93 11.8 235 1375 0.339 Oxlip 4/0 107 7×4.42 13.25 296 1738 0.268 Daisy 266.8 135 7×4.96 14.88 373 2191 0.213 Laurel 266.8 135 19×3.01 15.05 373 2254 0.213 Tulip 336.4 171 19×3.38 16.9 470 2786 0.169 Canna 397.5 201 19×3.68 18.38 555 3219 0.143 Cosmos 477 242 19×4.02 20.12 666 3803 0.119 Syringa 477 242 37×2.88 20.18 666 3932 0.119 Dahlia 556.5 282 19×4.35 21.73 777 4431 0.102 Mistletoe 556.5 282 37×3.11 21.8 777 4495 0.102 Orchid 636 322 37×3.33 23.31 888 5154 0.089 Violet 715.5 363 37×3.53 24.73 1000 5791 0.079 Nasturtium 715.5 363 61×2.75 24.76 1000 5960 0.079 Arbutus 795 403 37×3.72 26.07 1110 6303 0.071 Lilac 795 403 61×2.90 26.11 1110 6501 0.071 Anemone 874.5 443 37×3.91 27.37 1222 6821 0.065 Crocus 874.5 443 61×3.04 27.36 1222 7144 0.065 Magnolia 954 483 37×4.08 28.55 1333 7428 0.059
Welcome come our factory at any time! we trust you will like it!
Contact us
Angela Sun
International sales manager
International Trade Department
Luoyang Asian Sun Industrial Group Co., Ltd
=================================
Tel: +86-379-69991587
Mobile: + 86-18625990702
Web: http://dycable.en.made-in-china.com
Alibaba Showroom: http://dycable.en.made-in-china.com
=================================
@20°C

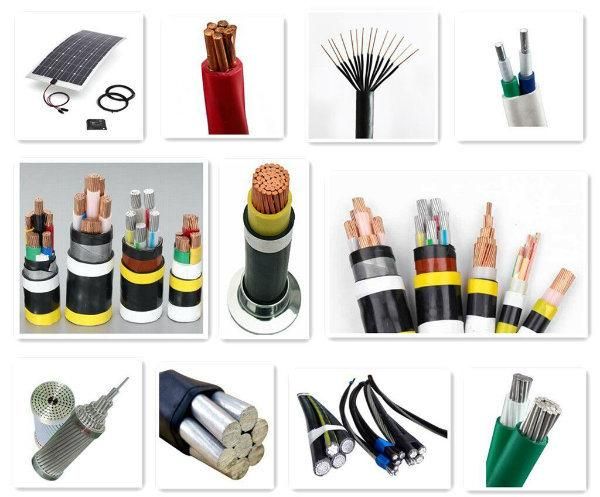

Relation Products
Company Information
Each time we receive an big order with different standards we will make a meeting about the production process in order to make sure the quality and delivery time.

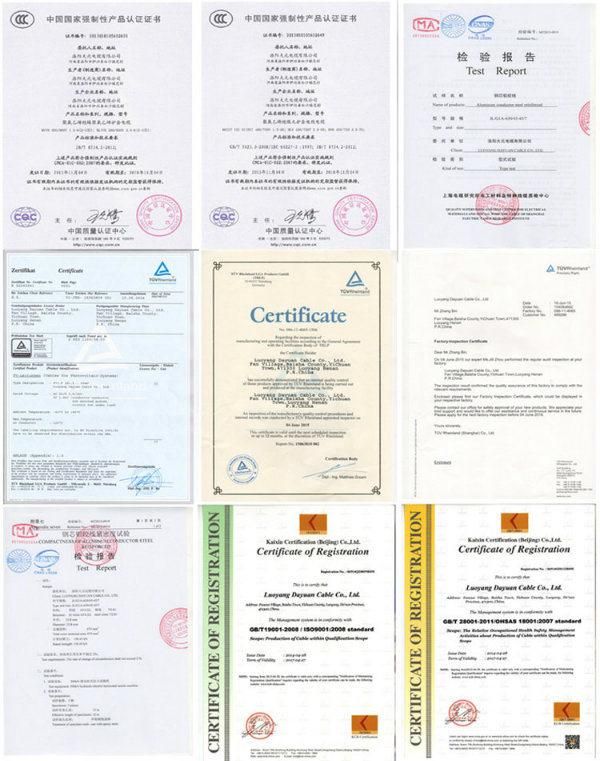

Certificates:
SECRI, ISO9001:2008, OHSAS, CCC, TUV Certifications:
Packaging & Shipping
Package: Support to pack as rolls, or with wooden drum or wooden steel drums.
Shipment terms: DHL, Fedex, UPS, etc. And usually by Sea.
