• Model NO.：HRCAY-50-7
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO
• Model：3,8 Inches Cable
• Brand：OEM
• Transport Package：350m,500m,or According to Client’ S Request
• Specification：3,8 inches
• Trademark：OEM
• Origin：China
• HS Code：8544200000
• Production Capacity：2000km,Month

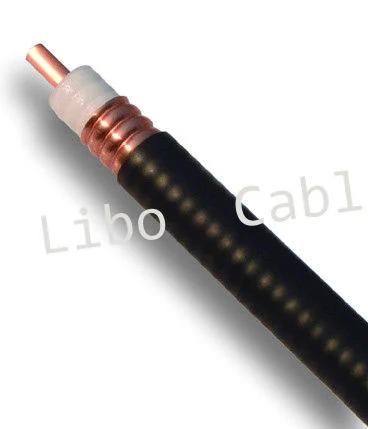

construction



Testing item

Unit

Standard

Inner conductor

material

-

smooth copper tube

diameter

mm

3.15

Outer conductor

material

-

corrugated copper tape

diameter

mm

9.50

jacket

PE or halogan free

mm

11.20

mechanical performance

single bending radius

mm

50

repeated bending radius

mm

95

electrical performance

inner conductor resistance

Ω/km

≤3.48

outer conductor resistance

≤2.85

Capacitance

pF/M

75

Characteristic impedance

Ω

50+/-1

Velocity

%

88

Attenuation
20ºC(max)

100MHZ

dB/100m

3.42

200MHZ

4.90

300 MHZ

6.06

450 MHZ

7.51

800 MHZ

10.20

900 MHZ

10.90

1000 MHZ

11.60

1500 MHZ

14.40

1800 MHZ

16.00

2000 MHZ

17.00

2500 MHZ

19.30

3000 MHZ

21.40

VSWR

0.01GHz-3GHz

-

1.20

820MHZ-960MHz

1.0

1.7GHz-1.9GHz

2.1GHz-2.2GHz


Competitive Advantage:


• Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
• Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
• Over 18 years of experience on coaxial cable, we have been in business partnership with multi-national cable companies since 1994.

FAQ
Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and/or design on goods are available.

Q: May I visit your factory?
A: Sure, welcome any time with prior notice.

Q: Can your company accept customize?
A: Yes, we can produce based on customization requirements practicable for us.

Q: What's your delivery time?
A: Products with stock available will usually be ready for dispatch within one working day since PO confirmed and deposit received; Products to be manufactured takes several days to several months depending the item types and quantity.

Q: How do you solve after sale service?
A: Any after-sales inquiry will be treated within 24 hours once received written notice from client via email, express mail, etc. Your request will meet our active response to furnish satisfying solution for you.

Q: Can you send a sample for us to develop?
A: We can provide samples of mature technical processing line; while special types shall be treated with technical appraisal before confirmation of sample availability. And samples can be provided free of charge or at cost price depending on specific sample type. Fees for transportation of the sample shall be assumed by client.
