Construction

Conductor:

23 AWG Solid Bare Copper

Pairs:

4 Pairs

Insulation:

1.02 mm HDPE

Insulation Colors:

Blue-White/Blue,Orange-White/Orange

Green-White/Green,Brown-White/Brown

Filler:

Cross Filler

Shield:

PET

Drain Wire:

0.40±0.005mm TC

Overall Shield:

Al/PET Foil,Foil face out

Rip Cord:

Cotton

Out Jacket:

7.6±0.2 mm  PE

Electrical Characteristics

Impedance

1 - 250MHz 100±15 Ohms

Insulation Resistance

>5000MΩ*KM

Dielectric strength

DC  2500V  2S

Max.Conductor DC
Resistance 20ºC

8.4 Ohms/100m

Res. unbalance (%)

Max. 2.5

Pair to Ground
Capacitance Unbalance

330 pF/100m

Transfer Impendance

Max 10 mOhms/m  @100Mhz

Installation temp.

 -30 - 50ºC

Operation temp.

 -20 - 75ºC

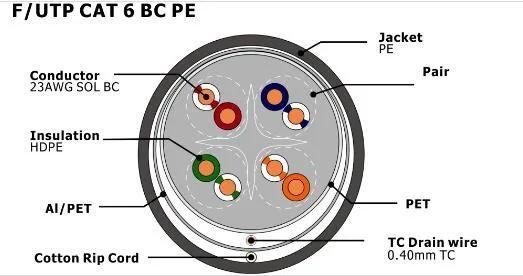

Cross Section

 Application

•  Exceeds ANSI/TIA-568-C.2 and ISO 11801 2nd Edition Class E Category 6 channel standards.

•  Exceeds requirements of ANSI/TIA-568-C.2 and IEC 61156·5 Category 6 component standards.

•  Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.

•  Foil shield reduces ingress of EMI interference to ensure cable performance at high frequency levels.

•  Descending length cable markings enable easy identification of remaining cable
   which reduces installation time and cable scrap.

•  Color Availability: Additional cable colors available.

Performance Characteristics

Frequency

RL                     (Min.)

Insertion Loss(Max.)

Propagation Delay (Max.)

Delay Skew(Max.)

NEXT (Min.)

PSNEXT (Min.)

ELNEXT (Min.)

PSELNEXT (Min.)

MHz

dB

dB/100m

ns/100m

ns/100m

dB

dB

dB/100m

dB/100m

1

20.0

2.0

570.0

45.0

74.0

72.0

67.8

64.8

4

23.0

3.8

552.0

45.0

65.0

63.0

55.7

52.7

10

25.0

6.0

545.0

45.0

59.0

57.0

47.8

44.8

16

25.0

7.6

543.0

45.0

56.0

54.0

43.7

40.7

20

25.0

8.5

542.0

45.0

55.0

53.0

41.7

38.7

31.25

23.6

10.7

540.0

45.0

52.0

50.0

37.9

34.9

62.5

21.5

15.4

539.0

45.0

47.0

45.0

31.8

28.8

100

20.1

19.8

538.0

45.0

44.3

42.3

27.8

24.8

200

18.0

29.0

537.0

45.0

39.7

37.7

21.7

18.7

250

17.3

32.8

536.0

45.0

38.0

36.0

19.8

16.8

Note: The above transmission performance tor the 100M, 20±2ºC under the conditions tested.

Order Informations

Marking

F/UTP CAT6 4PR 23AWG PE XXX
(or Per customer's request)

Inner Package

305m/Spool,305m/Reel (or Per customer's request)

Outer Package

Color Box, Pallet (or Per customer's request)

Delivery time

Normally 25 days after received the deposit.
