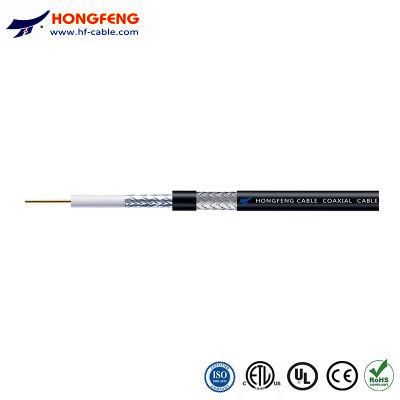

Rg59 Coaxial Cable Best Price From China

Hangzhou Hongfeng Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Heating
  • Conductor Material：Copper Clad Aluminum
  • Sheath Material：PVC
  • Insulation Material：PVC

Base Info

  • Model NO.：RG59
  • Material Shape：Round Wire
  • Range of Application：LSOH
  • Certification：UL, CCC
  • Brand：QIFAN
  • Transport Package：by Sea
  • Specification：RG59
  • Trademark：HONGFENG
  • Origin：China
  • HS Code：98090090
  • Production Capacity：888888

Description

ConductorMaterialBC/CCSNom.Dia.1.63mmDielectricMaterialFoam PENom.Dia.7.11mmShieldMaterial26mmAl bonded foil+Al braidingCoverage40%-95%JacketMaterialPVC/PENom.Thick.1.07mmNom.Dia.10.03mm75±3Nominal Velocity of Propagation(%)85Nominal Capacitance(pF/m)50Sparker Test(VAC)4000SRL(dB)2020Attenuation(68°F(20°C))          Frequency(MHz) Maximum(dB/100ft) Maximum(dB/100m)  5 0.38 1.25  55 0.96 3.15  187 2.05 6.72  300 2.25 7.38  450 2.759.02  600 3.1810.43  750 3.6511.97  865 3.9813.05  1000 4.3514.27


Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
HF/OEM/ODM
Model Number:
RG11
Number of Conductors:
1
HS Code:
8544200000
Color:
Any color
Conductor Material:
1.63mm BC/CCS
Dielectric:
7.11mm Foam PE
Shield:
30%-95% BC/Al Braiding
Jacket:
10.03mm PVC/PE
Application:
CATV/Satellite
Certification:
ETL/CE/ROHS/UL/ISO9001
