• Model NO.：YJV72 YJLV72 YJSV72 YJLSV72
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE, RoHS, UL, VDE
• Model：Yjv32 Yjlv32 Yjsv32 Yjsv 72 Yjlv32 Yjlsv32
• Brand：Yifang
• Option Conductor：Aluminum
• Transport Package：Wooden or Wooden-Steel Drum
• Specification：1 core & 3 cores
• Trademark：Yifang Cable
• Origin：Zhengzhou, China
• HS Code：8544601200
• Production Capacity：300km,Month

Basic Info.

Model NO. YJV72 YJLV72 YJSV72 YJLSV72 Wire Core Material Bare Copper Wire Certification ISO, CCC, CE, RoHS, UL, VDE Model Yjv32 Yjlv32 Yjsv32 Yjsv 72 Yjlv32 Yjlsv32 Brand Yifang Option Conductor Aluminum Transport Package Wooden or Wooden-Steel Drum Specification 1 core & 3 cores Trademark Yifang Cable Origin Zhengzhou, China HS Code 8544601200 Production Capacity 300km/Month

Product Description

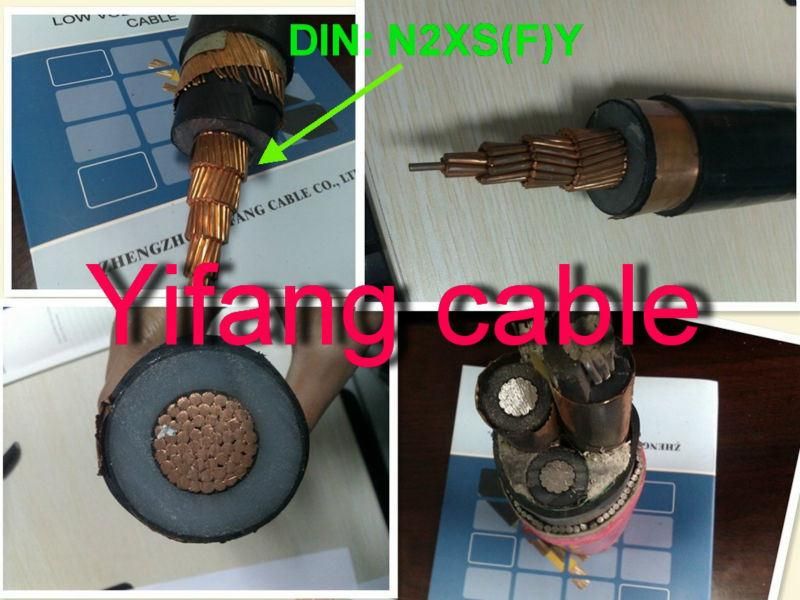

24KV  copper/aluminum cable 3x400 YJV32/ YJLV32





Application:



The cable can be used for laying indoor, tunnel, underground , canal, water and seabed , etc . The cable can bear external mechanical pressure and moderate pulling force with different design , such as metallic armour , water proof material , corrugated alu sheath , lead sheath , etc.



Standards: IEC,ASTM , BS , DIN ,NFC , AS/NZS , CSA , IS , etc. ,



Conductor: Copper / Aluminum



Conductor screen: Semi-conducting XLPE

Insulation:XLPE



Insulation Screen: Semi-conducting XLPE



Metallic Screen:  Individual and overall copper tape screen



Bedding: PVC



Armoring:

Single Core: Aluminum Wire Armored (AWA)
Multicourse: Steel Wire Armored (SWA) or Steel tape armoured (STA)



Sheath: PVC,PE,LDPE,LLDPE,LSZH



Color:Red ,black or as your request



Conductor Cross-section area is up to 1000mm2



For other detailed information , pls contact us directly .
