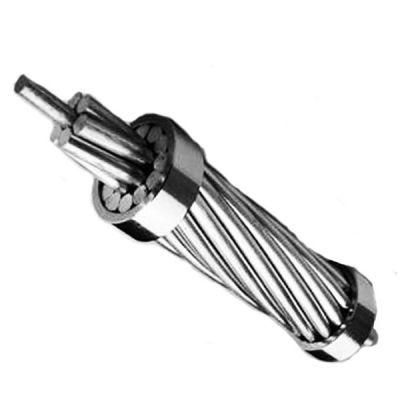

Overhead Conductors AAC/ AAAC/ ACSR/ Acar/ Accc Bare Conductors
Luoyang Sanwu Cable Co., Ltd.- Application：Construction, Overhead, Underground, Industrial, Power Station, Telecommunication
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：Bare
- Sheath Material：Bare
- Material Shape：Round Wire
Base Info
- Model NO.：120mm2
- Wire Core Material：Aluminum
- Certification：ISO, CCC, CE, RoHS, UL, VDE, TUV
- Model：Zs-AAC16-6-170
- Brand：Dayuan
- Supplier′s Nature：Manufacturer
- Certificate：ISO, TUV, CCC, IEC
- Standard of Other Country：CSA IEC, ASTM, DIN, BS, GOST, Sas Standard.
- Independent Lab：Yes
- Test Report：Yes
- OEM/ODM：Ok
- Product Name：AAC
- Transport Package：Wooden Drum, as Request
- Specification：IEC, ISO, GB, TUV, CCC
- Trademark：Da Yuan
- Origin：Henan, China
- HS Code：8544491100
- Production Capacity：100000m,Day, 100000 M,Day
Description
CodeSize Section No. of
Strands Diameter
Strands Weight Rated
Strength Maximunm
Resistance @20°C AWG o MCM in² mm mm kg/km kg Ω/km Poppy 1/0 53.51 7×3.12 9.36 147.5 897 0.539 Aster 2/0 67.44 7×3.50 10.51 186 1136 0.427 Phlox 3/0 85.02 7×3.93 11.8 235 1375 0.339 Oxlip 4/0 107 7×4.42 13.25 296 1738 0.268 Valerian 250 127 19×2.91 14.57 349 2108 0.227 Peony 300 152 19×3.19 15.96 419 2482 0.189 Petunia 750 380 37×3.62 25.32 1048 5968 0.075 Cattail 750 380 61×2.82 25.35 1048 6147 0.075
BS STANDARD AACCode NameNominal
Aliminium
Area Stranding
and Wire
Diameter Sectional
Aera Approximate
Overall
Diameter Linear
Mass Calculate D.C
Resistance
at 20° Calculate
Breaking
Load Final
Modulus
of elasticity Corefficient
of Linear
Expansion MM² MM MM² MM kg/km Ω/km daM hbar /°C Mosquito 35 7/2.59 37 7.8 101 0.7762 603 5900 23×10-6 Ant 50 7/3.10 52.83 9.3 145 0.5419 828 5900 23×10-6 Fly 60 7/3.40 63.55 10.2 174 0.4505 990 5900 23×10-6 Wasp 100 7/4.39 106 13.17 290 0.2702 1600 5900 23×10-6 Homet 150 19/3.25 157.6 16.25 434 0.1825 2570 5600 23×10-6 Chafer 200 19/3.78 213.2 18.9 587 0.1349 3240 5600 23×10-6 Cockroach 250 19/4.22 265.7 21.1 731 0.1083 4040 5600 23×10-6 Butterfly 300 19/4.65 322.7 23.25 888 0.08916 4875 5600 23×10-6 Centipede 400 37/3.78 415.5 26.46 1145 0.06944 6310 5600 23×10-6
Factory Address:
Yichuan Electricity Industry zone, Luoyang City, Henan Province, China
Test Machine
extruding machine, cable-former, drawbench and so on.
Package
Wooden drum or 100m/roll
Customer
American, Australia, India, South Africa, South America...
Our Principles
1. Quality first, customer first, safety first
2. Better service, faster delivery
3. Equal and mutual benefit
4. Honest and professional
Why choose us?
1. Swift and professional response
2. Patient and trusty
3. Severe quality control system
4. On-time delivery
Contact
Cathy Shi
Department sale manager
International Trade Department
Luoyang Dayuan Cable Co., Ltd
=================================
Tel: +86-379-69991587
Mobile: + 86-15136243085
=================================
