• Model NO.：CNE
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE
• Model：Cne
• Brand：Grandcable
• Transport Package：Treated Drums
• Trademark：Grandcable
• Origin：Jiangsu, China
• HS Code：8544492100
• Production Capacity：78000 Km Per Year

Cable Size (mm²)410Phase Conductor Resistance (Ohm/km) DC @20°C4.801.90Phase Core Impedance (Z) (Ohm/km)5.882.34Current Rating *(A)3050Symmetrical Short Circuit Rating for 1s in kA0.5721.431
*Note: - In air, with 30 °C ambient with maximum conductor temperature 90 °C

Mechanical PropertiesCable Size (mm²)410Phase Conductor (No. X OD) (mm)7 x 0.927 x 1.45Nominal Insulation Thickness (mm)1.01.0Earth Size (mm²)410Earth Conductor (No. X OD) (mm)8 x 0.8518 x 0.85Nominal Sheath Thickness (mm)1.41.4Approximate Cable OD (mm)9.011.0Approximate Cable Mass (kg/km)121249

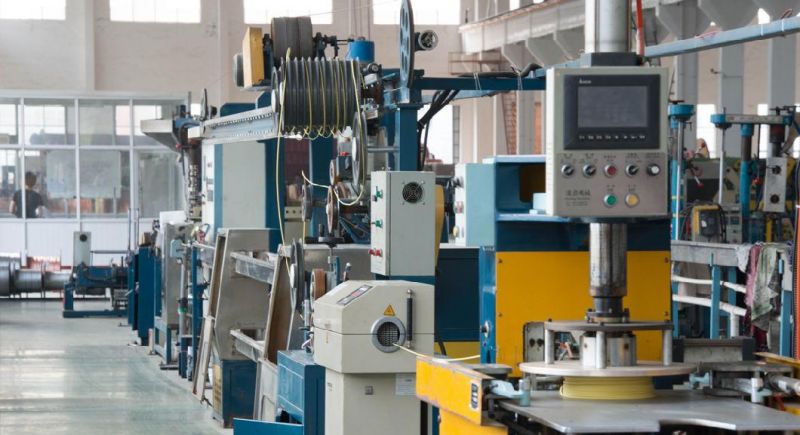

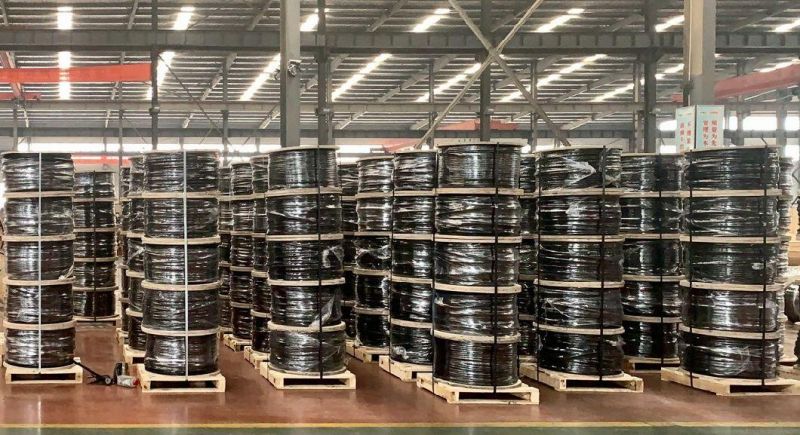

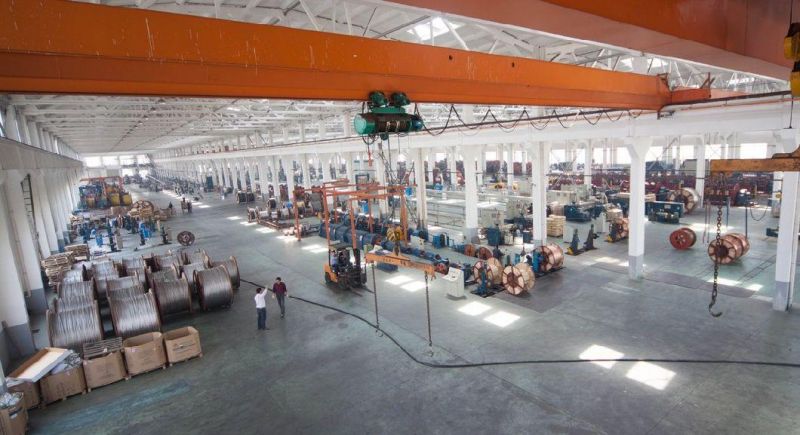

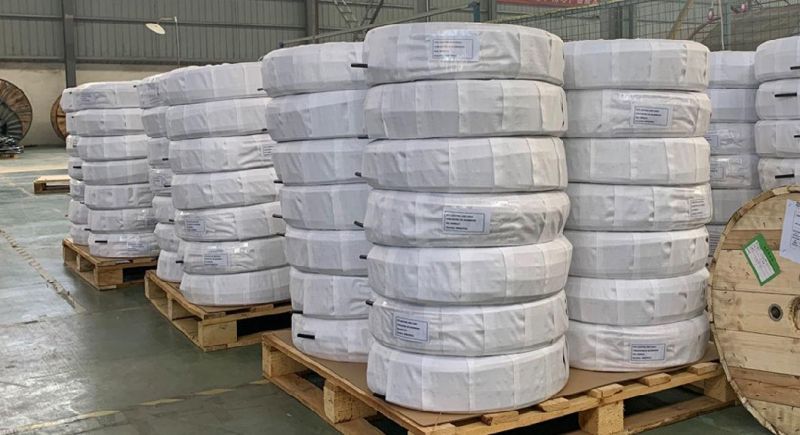

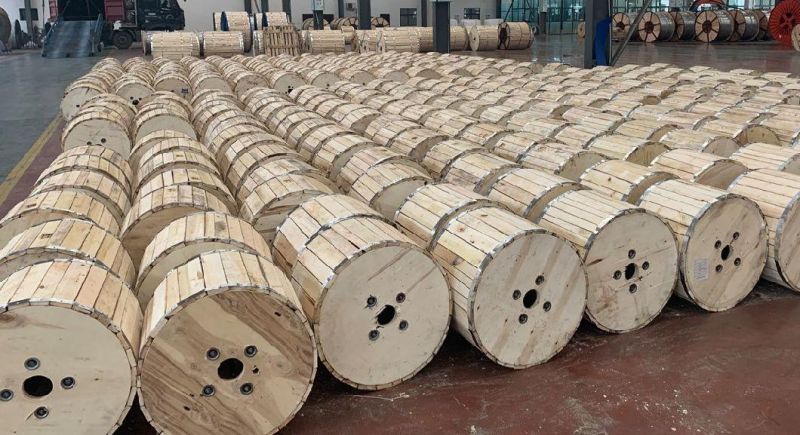

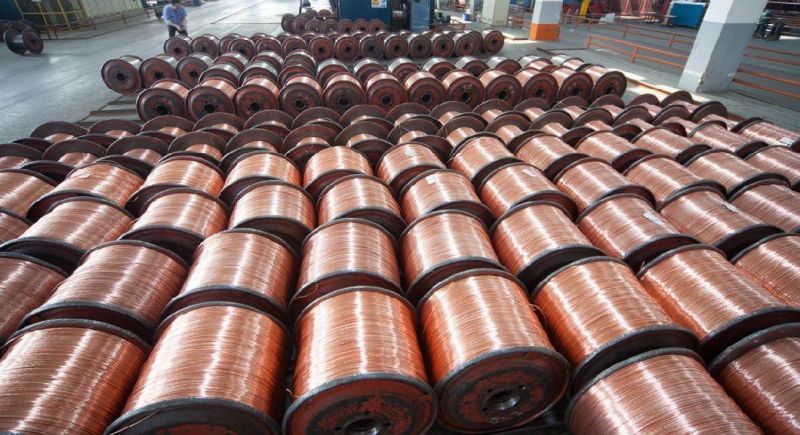

Packaging Photos:Workshop View:

About us:

Jiangsu Grand Cable Co., Ltd. was founded in 2002 with a registered capital of 308.88 million CNY(equivalent to 44.13 million USD). The company is located at Section B, Guanlin Industrial ConcentratedArea, Yixing, Wuxi City, Jiangsu 214251, P.R. China, covering an area of 130,000 squaremeters .It owns total assets of 100 million CNY and more than 500 staff members. The annualproduction capacity reaches 2.5 billion CNY .It is one of key enterprises of China Wire & Cable Industry, the National High-Tech Enterprises, the Innovation and Development Pilot Enterprises of Jiangsu Province, the Private Technology Enterprises in Jiangsu Province, keeping Contract and Credit Enterprises and AAA-Grade Credit Enterprise. We have passed ISO9001 Quality System,ISO14001 Environment Management System Certificate and OHSAS 18001 Occupational Health and Safety Management System Certificate.

With more than 300 sets of first-class domestic and imported manufacture and test equipment,Grand Cable can manufacture ten thousand specifications, including Bare Conductors, Earthing Materials, Electric Cables, Solar Cables, Overhead/Aerial Cables, Control Cables, Instrumentation Cables, Power Cables(LV/MV/EHV), Special Cables.

FAQ:

Q:  How long does it take get my inquiry replied?

A:  Mostly the inquiry will be replied within 12 hours. And the quote will be sent to you in 1-3 days. It depends on the technical parameters and requirements of the cable. We will give you a reasonable and accurate quote.

Q:  Can I get samples before placing the order?

A:  You will get a sample for free if we have the storage of that cable.

Q:  What's the MOQ of your product?

A:  The MOQ of our most product is 1000 meters. But if there's any exceptional situation, we can make some negotiations.

Fore More Information, Please do feel free to contact us!
