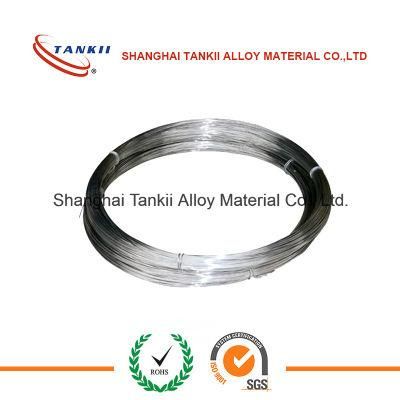

Platinum-rhodium wire 0.35mm for high temperature thermocouple sensor
Shanghai Tankii Alloy Material Co., Ltd.- Type：Bare
- Conductor Type：Solid
- Application：Heating
- Conductor Material：PT90Rh
- Sheath Material：Bare
- Insulation Material：Bare
Base Info
- Model NO.：S,R
- Material Shape：Round Wire
- Range of Application：Heating
- Certification：ISO9001, RoHS
- Brand：Tankii
- Dia：0.04-0.5mmm
- Surface：Bright, oxidized
- Positive：PT90
- Negtive：Rh10
- Transport Package：100m,Spool, 200m,Spool
- Specification：0.04mm, 0.5mm
- Trademark：TANKII
- Origin：Shanghai
- HS Code：95029000
- Production Capacity：1000tons,Year of Thermocouple Wire
Description
Chemical CompositionConductor Name Polarity Code Nominal Chemical Composition /% Pt Rh Pt90Rh Positive SP 90 10 Pt Negative SN,RN 100 -- Pt87Rh Positive RP 87 13 Pt70Rh Positive BP 70 30 Pt94Rh Negative BN 94 6 Dia. /mm Type Long time working temp./ ºC Short time working temp. / ºC 0.5 S 1300 1600 0.5 R 1300 1600 0.5 B 1600 1700
