• Model NO.：MV Power Cable
• Wire Core Material：Copper or Aluminum
• Certification：ISO, CCC, CE
• Model：Yjv Yjv22 Yjv32 Yjlv Yjlv22 Yjlv32
• Brand：Yifang
• Sheath Colour：Red , Black , Blue or as Per Requirement
• Oil Resistant：According to Requirements
• Anti-Termite：According to Requirements
• Standard：IEC 60502. BS
• Transport Package：Wooden Drum,Iron Wooden Drum,Steel Drum
• Specification：25-1000mm2
• Trademark：Yifang Cable
• Origin：China
• HS Code：8544601200
• Production Capacity：500km,Month

Basic Info.

Model NO. MV Power Cable Wire Core Material Copper or Aluminum Certification ISO, CCC, CE Model Yjv Yjv22 Yjv32 Yjlv Yjlv22 Yjlv32 Brand Yifang Sheath Colour Red , Black , Blue or as Per Requirement Oil Resistant According to Requirements Anti-Termite According to Requirements Standard IEC 60502. BS Transport Package Wooden Drum/Iron Wooden Drum/Steel Drum Specification 25-1000mm2 Trademark Yifang Cable Origin China HS Code 8544601200 Production Capacity 500km/Month

Product Description

11kV 15kV 12/20 (24) kV XLPE Insulated Copper Three Core Medium Voltage Power Cable

Manufacture according to IEC, ASTM, BS, DIN, NFC, AS/NZS, CSA, IS, etc.

1. This cable belongs to cables rated voltage up to 35KV.

2. Commonly the cables comply with IEC 60502 standard. We can also produce according to the standard required by our clients, such as ASTM, BS, DIN, NFC, AS/NZS, CSA, IS, etc.

3. Rated Voltage of the cable is from 1KV to 35KV, Cross-section area is up to 1000 SQMM.

4. The cable can be used for laying indoor, tunnel, underground, canal, water and seabed, etc. The cable can bear external mechanical pressure and moderate pulling force with different design, such as metallic armour, water proof material, corrugated alu sheath, lead sheath, etc.

5. Conductor long-time operating temperature is 90 degrees. In short circuit, conductor highest temperature is 250 degrees.

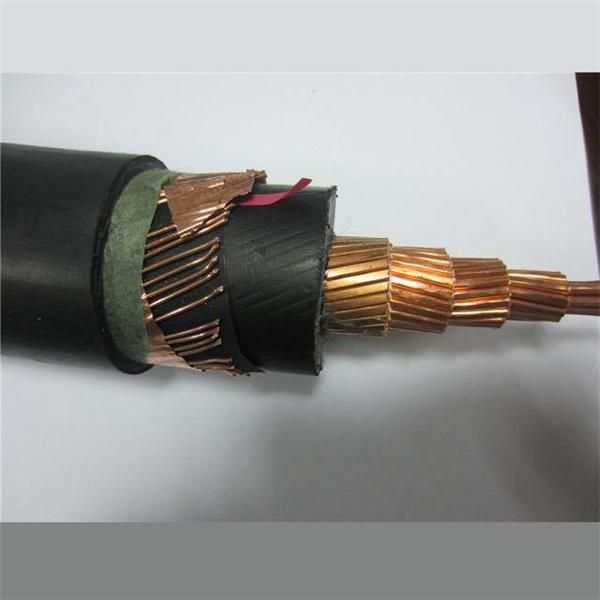

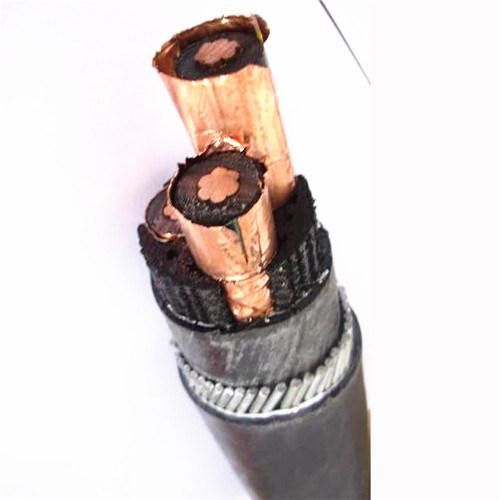

6. Cable Structure:
6.1 Single core or 3 Core
6.2 Copper or aluminium conductor
6.3 XLPE insulation
6.4 Copper tape or copper wire screen / Alu-Plastic Tape screen
6.5 Armoured with Galvanized steel wire / Steel tape / Aluminium Wire / Aluminium tape
6.6 Outer sheath with PVC / PE / LDPE / LLDPE

7. Export Areas: Philippines, Korea, Saudi Arab, Bangladesh, Singapore, Yemen, India, Iraq, Iran, UAE, Jordan, Qatar, Indonesia, Syria, UK, Italy, Germany, Romania, Belgium, Russia, South Africa, Zambia, Nigeria, Guinea, Gambia, Ghana, Kenya, Rwanda, Cô Te d'Ivoire, Eritrea, Zimbabwe, Mauritius, US, Peru, Canada, Mexico, Jamaica, Brazil, Chile, Bolivia, Ecutor, Dominican, etc.

8. Certificate: ISO, CE, SGS, SONCAP, BV, COC, ETC.

9. For other detailed information, pls contact us directly.
