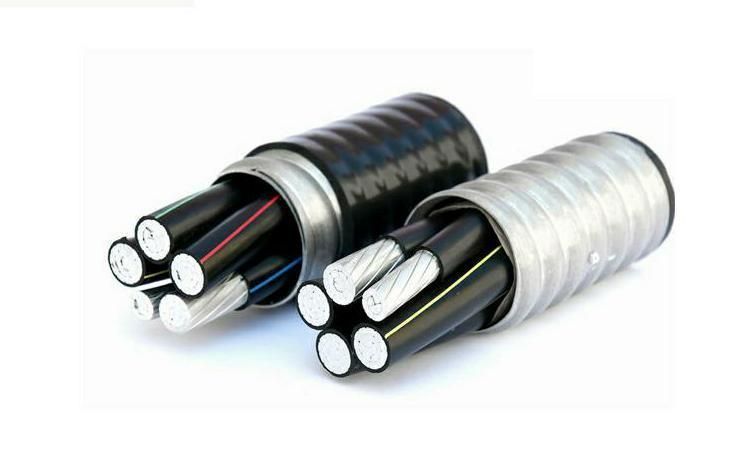

Acwu90 XLPE Insulated Aluminium Alloy Cable 600V Building Wire Electric Cable
Ningbo Junyi Zhonghao Import & Export Co., Ltd.- Type:Insulated
- Conductor Type:Stranded
- Application:Electrical Equipment and Lighting
- Conductor Material:Aluminium Alloy
- Sheath Material:No Sheath or PVC,Polyolefin
- Insulation Material:XLPE
Base Info
- Model NO.:Insulated
- Material Shape:Round Wire
- Range of Application:Flame Retardant
- Certification:ISO9001, CE, UL, CCC, RoHS, VDE
- Brand:Black Elephant
- Name:Aluminium Alloy Cable
- Rated Voltage:0.6,1kv
- Number of Cores:1, 2, 3, 4, 5, 3+1, 3+2 Core
- Sample:Free
- Transport Package:Wooden,Steel Drum or as Specified
- Specification:10-500mm²
- Trademark:Black Elephant , Customizable
- Origin:Sichuan, China
Description
Excellent
DC Resistence of The Conductor Meets The Following Regulations
Nominal Cross-Section(mm²) Max DC Resistance of Conductor at 20ºC(Ω/Km) Nominal Cross-Section(mm²) Max DC Resistance of Conductor at 20ºC(Ω/Km) 10 3.08 120 0.253 16 1.91 150 0.206 25 1.20 185 0.164 35 0.868 240 0.125 50 0.641 300 0.100 70 0.443 400 0.0778 95 0.320 500 0.0605
Information For Type Selection
A:Inherent Defects of common Aluminium Wire
1.Poor Creep Resistence
2.Low Mechanical Property,Poor Installation Performance
B:Comparison with Common Aluminium Wire
1.Creep Resistence
Creep resistence increases 300% by adding right amount of iron to avoid loose caused by cold folw or creep,and ensure the property to keep stable under long-term overloading and overheating.
2.Tensile Strength
Allowable resistence to traction forces of common aluminium wire is 40Mpa,and that of alloy is 53Mpa.
3.Bending
Pure aluminium is easy to crack or break after several times of bending,while aluminium alloy will not crack or break after dozens of bending,which can eliminate the security threat of common aluminium wire during installation,and omproving its safety performance.
4.Electrical Performance
Rare earth is added to aluminium alloy conductor,and the electric conductivity of aluminium alloy wire can reach up to 61.5% IACS after annealed,which exceeds 61% IACS of the common aluminium wire ;therefore,it has the electrical performance of more excellent.
5.Flexibility
Bending radius of common aluminium wire is normally 10 to 20 times of the outer diameter,while that of aluminium alloy wire can be 6 times of the outer diameter,which can reduce the layout sapce and cost when installation.
6.Armoured Material
The armoured by magnetic material,and cannot avoid collision sparks.Alloy cable is armoured by 5000 series alloy material with high mechanical strength and corrosion resistence;in addition,it's non-magnetic material,and can avoid collision sparks,and be safe and reliable when close to inflammables and explosives.
Comparison of PVC Insulated Copper Cable,Aluminium Cable and Aluminium Alloy Cable with Same Current Capacity
Type Copper Wire Aluminium Wire Aluminium Alloy Cable Material Cu Al Al,Fe,Mn,Cum,Cu,Mg,Zn,etc. Diameter Small Large Equivalent to copper aluminium cable Design Life 30 years 30 years 40 years Provided to Client Product(Wire) Product(Wire) Systematic installation solution Armouring Not self-locking Not self-locking Self-locking Bending Excellent Poor Excellent Flexibility Excellent Poor Optimal Total Weight Heavy Light Light Flame Retardant Grade Common Common LSOH,flame retardant class A Economic Efficiency High Price Low Price Price is a little bit higher than aluminium wire,and far lower than copper wire Voltage Drop The Same The Same The Same Tensile Strength Excellent Poor Excellent Corrosion Resistence Excellent Poor Excellent Rebound Performance High High 40% lower than copper wire
Superiority: Aluminium Alloy Cable is light ,and be efficient when installation, requires no outer armouring or cable tray.and saves installation time,labor and etc.
Additional Remarks
1.Fire resistant coating can be added to aluminium alloy wire,and its fire resistant capacity can be proved by burning test .While it is specified in code of building design that copper wire shall be adopted for fire resistant wire ;it does not mean the wire can be used in engineering even though it has passed fire resistant test.
2.Aluminium alloy wire may be used in large scale in buildings due to unique application requirements,and unique technical and economic superiority.But not all wires can be used aluminium alloy wires.
3.When laying aluminium alloy wire.the following measures shall be taken to ensure the security of connection:
1) copper terminal,copper or steel crew shall be tinned to deal with the transition between copper and aluminium;
2) special gasket shall be placed between aluminium wire and copper terminal to avoid electrolytic corrosion;
3) smear antioxidant on connection point when using terminal without tinning to prevent chemical corrosion;
4) special copper-aluminium transition terminal CO/ALR shall be used.
