• Model NO.：FTP Cat6
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, SGS,CPR,ETL,ISO9001
• Model：UTP CAT6
• Brand：Risun or OEM
• Insulation Material：HDPE
• Ripcord：500d
• Filler：Yes
• UV：Available
• Waterproof：Available
• Frame Returdant：Available
• No.of Conductor：8 Core, 4pairs
• Indoor/Outdoor：PVC,PE,PVC+PE,PVC+PVC
• N.W.：8.5kgs
• G.W.：10kgs
• Color：Grey, White or According Customer Requirement
• Drain Wire：26 AWG Tinner Copper
• Shield：Polyester Tape+Aluminum Foil
• Transport Package：305m,Pull Box, 2 Pull Box,CTN.
• Specification：ETL, CE, RoHS, SGS, ISO9001
• Trademark：Risun or OEM
• Origin：Hangzhou, Zhejiang, China(Mainland)
• HS Code：8544491100
• Production Capacity：20000 Boxes Per Month

FTP CAT6 solidConductor MetalSolid Bare CopperShieldAluminum Polyester FoilColor CodeGrayConductor Diameter0.560mm Nominal, 23 AWGInsulation Diameter1.14 Nominal, Insulation Material: HD-PEDrain Wire26 AWGJacket MaterialPVCCable Diameter7.00mm NominalCentral Cross separator materialPEDelivery timeNormally 25 days after received the deposit.ApplicationEthernet cables and telephone wires in the computer and telecommunications industry
technical details:Mutual Capacitance5.6nF/100m nominalCharacteristic Impedance100Ω±15%Nominal Velocity of Propagation69%Characteristic Impedance100+15ΩConductor Resistance< 9.38Ω/100mMutual Capacitance< 5.6nF/100mResistance Unbalance5% MaxCapacitance Unbalance330pF/100mDelay Skew< 45nSBending Radius< 4 X Cable Diameter at -20°C ± 1°CPulling Force11.5KgTemperature Range-20° to +70°C

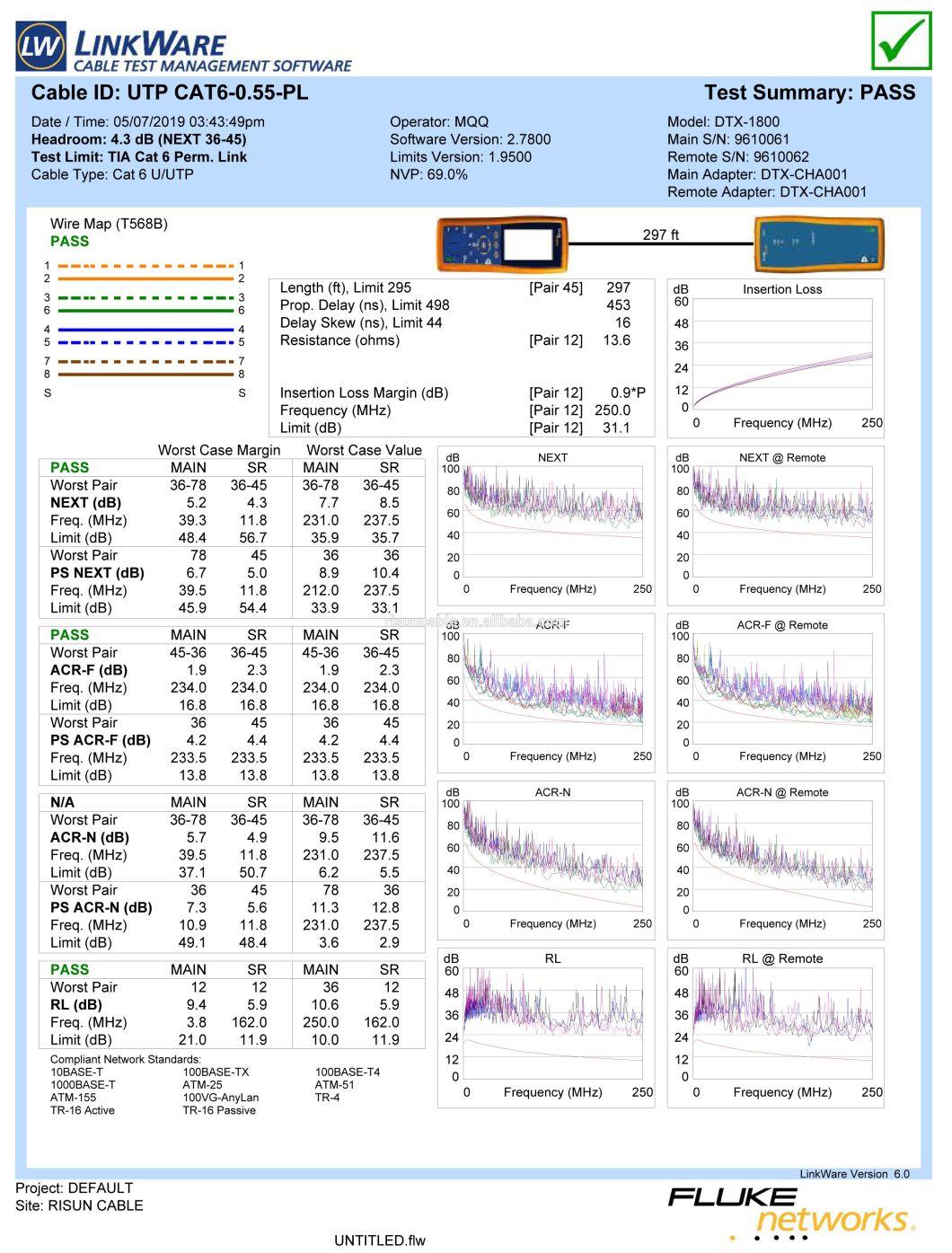

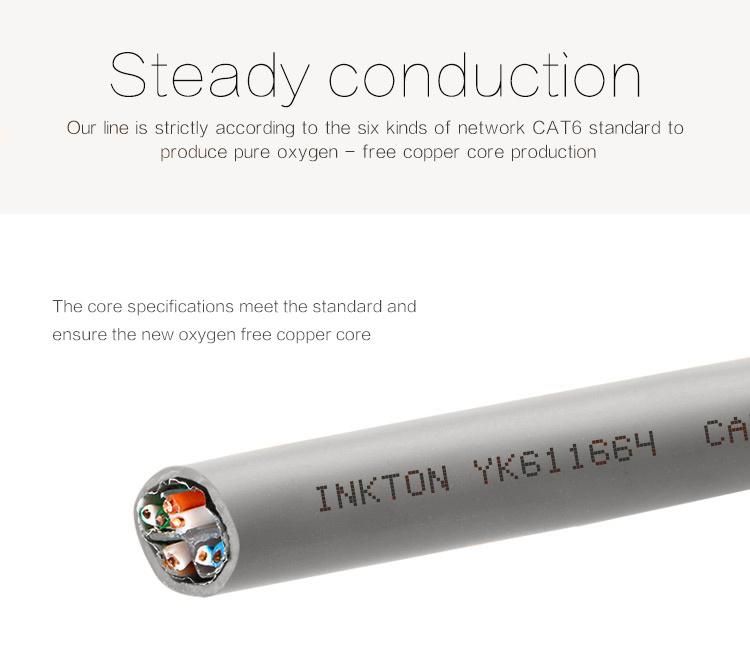

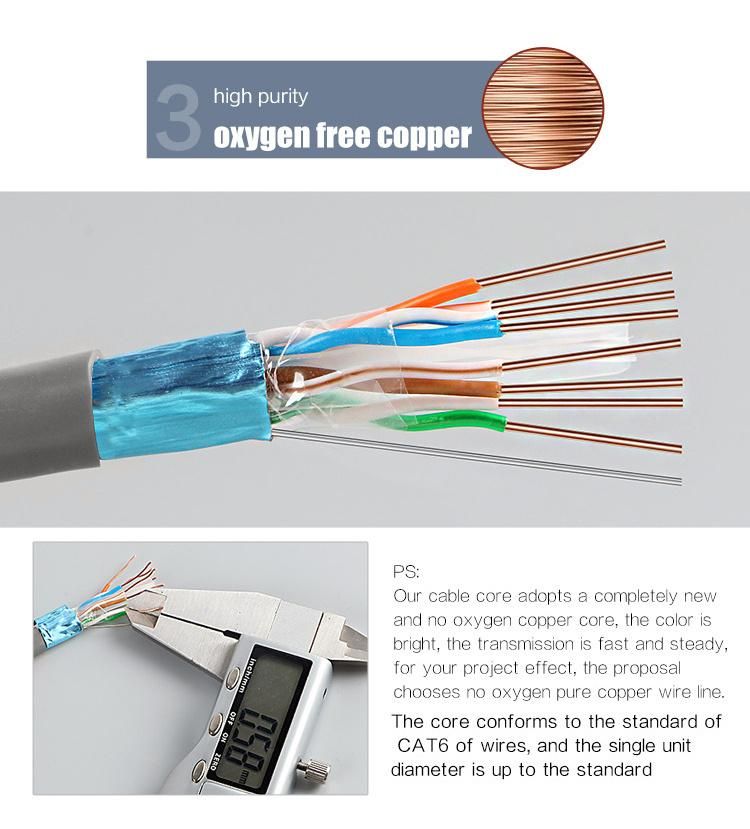

Details Images:













Company Introduction:
Since its creation in 2007, RISUN cable has beenspecialized in manufacturing of high quality network cable, coaxial cable, telephone wire and alarm cable. Our company maintains a quality assurance system to international standard ISO9001 to meet all clients expectation. OEM service is available for customer's special projects at affordable prices.

We have entered into the market of Europe, America, Southeast Asia and Middle East. Conducting business on the basis of equality, cordiality and mutual benefits,supported by our engineering design assistance and outstanding customer service. This has led to a tradition of growth and quality achievements for RISUN.



Packing&Shipping:













Why Choose Us:



FAQ:
Q1.ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.

Q2: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to
quantity.

Q3: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes,we welcome sample order to test and check quality. we could offer the sample for free charge but do not pay the cost of freight.
Q4. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one color.

Q5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A: Normally by sea shipping. (sample order also available by air or courier)

Q6.HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples or specification and places deposit for formal order.
Fourthly We arrange the production and shipping.

Q7.IS IT OK TO PRINT MY LOGO ON CABLES?
A: Yes. Please inform us formally before our production.

Q8: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment<=60km, 100% in advance. Payment>=60km, 30% T/T in advance ,balance before shippment.
 WELCOME TO RISUN!!!
