• Model NO.：YJLW02
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC
• Model：Yjlw02-Z Yjlw03-Z Yjq02-Z Ujq03-Z Hv Cable
• Produceing Experience：15 Years
• Size(mm2)：......95.120 185, 240,300,400, 500, 630,800,1000
• OEM：Yes
• Transport Package：Wooden Drum, Steel Wooden Drum, Steel Drum
• Specification：SGS CCC IEC
• Origin：Henan
• HS Code：8544601300
• Production Capacity：300km Per Month

Basic Info.

Model NO. YJLW02 Wire Core Material Bare Copper Wire Certification ISO, CCC Model Yjlw02-Z Yjlw03-Z Yjq02-Z Ujq03-Z Hv Cable Produceing Experience 15 Years Size(mm2) ......95.120 185, 240,300,400, 500, 630,800,1000 OEM Yes Transport Package Wooden Drum, Steel Wooden Drum, Steel Drum Specification SGS CCC IEC Origin Henan HS Code 8544601300 Production Capacity 300km Per Month

Product Description

66kV 110kV 220kV HV Cable

1.Cable Description:
Single core,Copper conductor, XLPE insulation,Corrugated Aluminum sheath, or lead alloy sheath, or Copper wire Screen,PVC or PE Outer sheath power cable

2.Cable property:
1)The maximum rated working temperature of conductor is 90°C, and the maximum temperature is less than 250°C when short circuit occurs(no more than 5 seconds
2)Allowable maximum lateral pressure is 5KN/m.
3)Allowable maximum traction strength of aluminum conductor is 40N/mm2.
4)Cable laying temperature is not less than 0°C.
5)The minimum bending radius is no less than 20D.

          (D---represents actual outer diameter of cable)

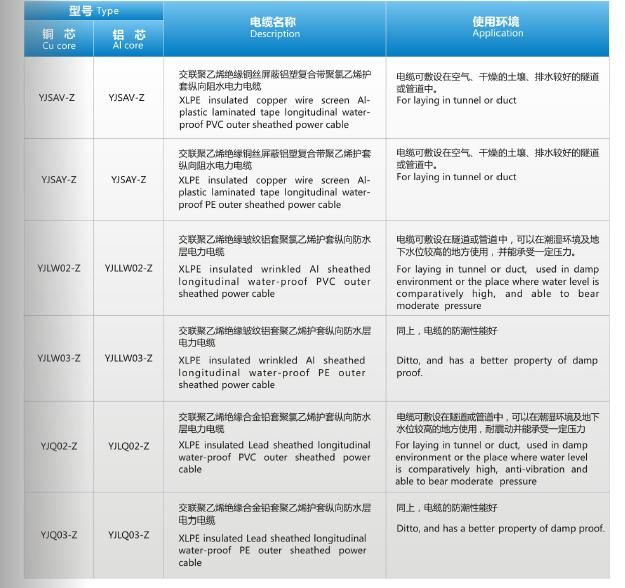

3.Type and Application:

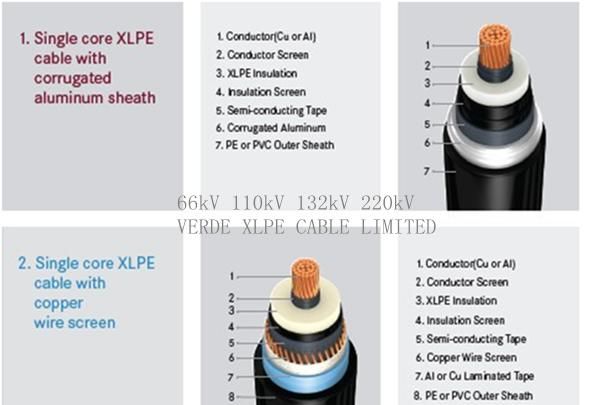

4.Structure Drawing

5.Size range we produce:

6.Packing:
   Wooden Drum, Steel Wooden Drum, All Steel Drum for very heavy cable
