Cable & Wire

N2xsy/A2xsy/Na2xsy 2xsy Cable Cu/Al XLPE Insulation Copper Wire Screen PVC Cable

Henan Hongda Cable Co., Ltd.
  • Type:Insulated
  • Conductor Type:Stranded
  • Application:Overhead, Underground
  • Conductor Material:Copper
  • Sheath Material:PVC
  • Insulation Material:XLPE

Base Info

  • Model NO.:N2XSY,A2XSY,NA2XSY 2XSY Cable
  • Material Shape:Round Wire
  • Range of Application:Flame Retardant
  • Certification:ISO9001, CCC
  • Brand:OEM
  • Transport Package:Wooden Drum
  • Specification:2.5~400sqmm
  • Trademark:OEM
  • Origin:China(Mainland)
  • HS Code:8544492100
  • Production Capacity:50 Kilometer,Month

Description

Basic Info.

Model NO. N2XSY/A2XSY/NA2XSY 2XSY Cable Material Shape Round Wire Range of Application Flame Retardant Certification ISO9001, CCC Brand OEM Transport Package Wooden Drum Specification 2.5~400sqmm Trademark OEM Origin China(Mainland) HS Code 8544492100 Production Capacity 50 Kilometer/Month

Product Description

International Designation :
 CU/XLPE/CWS/PVC Cu / Al conductors • XLPE insulation • Cu screen • PVC sheathChina MV cable XLPE insulated with PVC outer sheath. Rated voltage 12/20 KV

STANDARDS

International :  IEC 60332-1; IEC 60502-2

DESCRIPTION

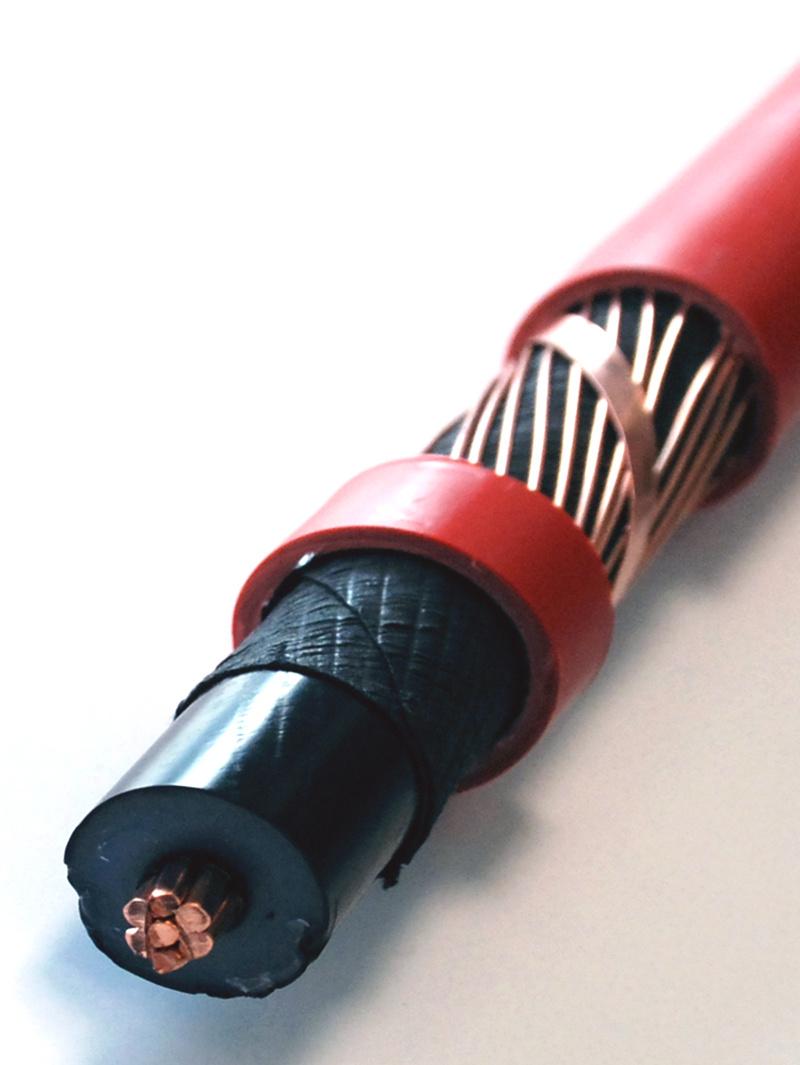

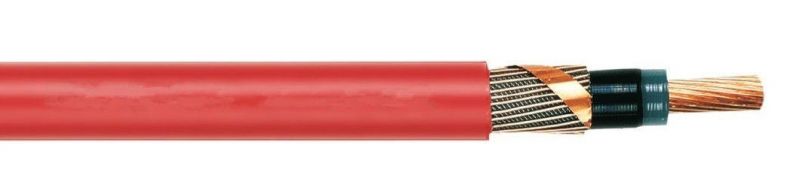

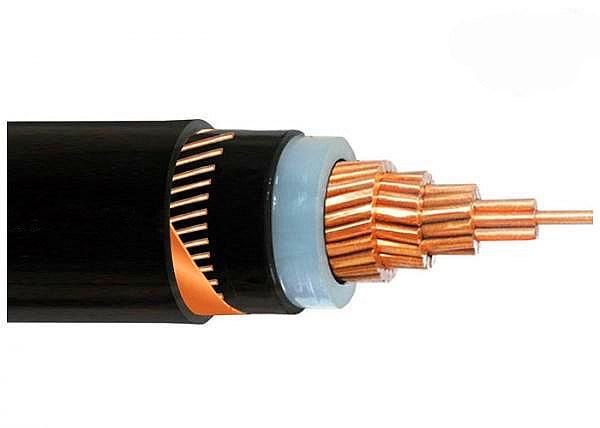

2XSY Electric power cable with stranded copper conductor, conductor screen of semiconducting compound, XLPE insulation, insulation screen of semiconducting compound, copper wires metallic screen, PVC outer sheath. Rated voltage 12/20 KV

Note: on request the cables are available with copper helix tape above the copper wires metallic screen or/and with plastic wrapping tape below the outer sheath

 Application

in grounds, outdoors, indoors and in cable ducts

Note: on request the cables are available with Polyethylene outer sheath (2XS2Y) or with Low Smoke Zero Halogen (LSZH) outer sheath (2XSH).

N2xsy/A2xsy/Na2xsy 2xsy Cable Cu/Al XLPE Insulation Copper Wire Screen PVC CableN2xsy/A2xsy/Na2xsy 2xsy Cable Cu/Al XLPE Insulation Copper Wire Screen PVC CableN2xsy/A2xsy/Na2xsy 2xsy Cable Cu/Al XLPE Insulation Copper Wire Screen PVC CablePacking shipping

N2xsy/A2xsy/Na2xsy 2xsy Cable Cu/Al XLPE Insulation Copper Wire Screen PVC Cable
 N2xsy/A2xsy/Na2xsy 2xsy Cable Cu/Al XLPE Insulation Copper Wire Screen PVC Cable
N2xsy/A2xsy/Na2xsy 2xsy Cable Cu/Al XLPE Insulation Copper Wire Screen PVC Cable
Why Choose Us ?

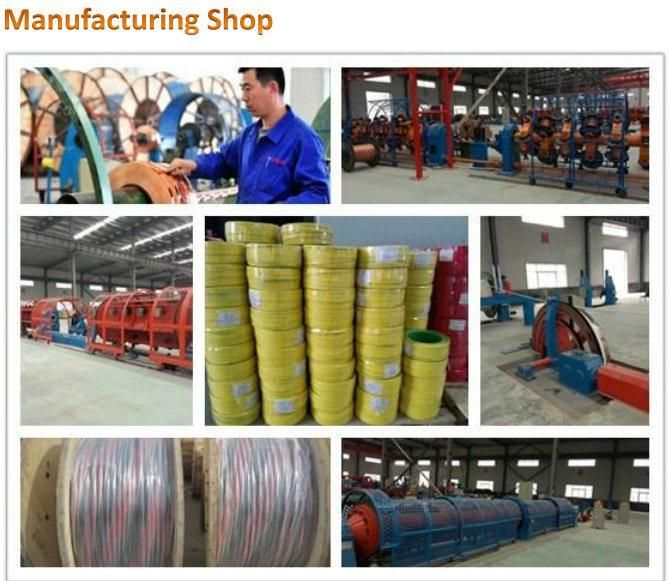

1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10.We have a good reputation in the overseas
N2xsy/A2xsy/Na2xsy 2xsy Cable Cu/Al XLPE Insulation Copper Wire Screen PVC Cable

If you have another question, pls feel free to contact us below
