Bare Conductor 100mm2 7/4.39 AAC Wasp Bare Cable
Luoyang Sanwu Cable Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminum
- Sheath Material：Non
- Insulation Material：Non
Base Info
- Model NO.：AAC-Dayuan-040
- Material Shape：Round Wire
- Range of Application：Power Distribution and Transmission
- Certification：ISO9001, CE, CCC
- Brand：Dayuan
- Quality Check：All Products Checked by Experienced QC
- Trail Order：Welcome
- OEM Service：Welcome
- Delivery Date：15days~35days After Order Confirmed
- Other：High Voltage
- Conductor Shape：Circular Core or Compact Core
- Cross Section Area：10-1500 mm2
- Standard：IEC502, BS7870-5, GB12527-91
- Key Word：AAC
- Transport Package：Use The Drum, We Can Make as Customer Requirement
- Specification：IEC, ASTM, ICEA, BS, DIN
- Trademark：Luoyang Dayuan
- Origin：Luoyang, China
- HS Code：761490000
- Production Capacity：100000m,Day
Description
CodeSize Section No. of Strands Diameter Strands Weight Rated Strength Maximunm Resistance @20°C AWG o MCM in² mm mm kg/km kg Ω/km Peachbell 6 13.3 7×1.56 4.66 36.6 254 2.170 Rose 4 21.15 7×1.96 5.88 58.3 399 1.364 Iris 2 33.62 7×2.47 7.42 92.7 611 0.857 Pansy 1 42.41 7×2.78 8.33 117 740 0.681 Poppy 1/0 53.51 7×3.12 9.36 147.5 897 0.539 Aster 2/0 67.44 7×3.50 10.51 186 1136 0.427 Phlox 3/0 85.02 7×3.93 11.8 235 1375 0.339 Oxlip 4/0 107 7×4.42 13.25 296 1738 0.268 Daisy 266.8 135 7×4.96 14.88 373 2191 0.213 Laurel 266.8 135 19×3.01 15.05 373 2254 0.213 Tulip 336.4 171 19×3.38 16.9 470 2786 0.169 Canna 397.5 201 19×3.68 18.38 555 3219 0.143 Cosmos 477 242 19×4.02 20.12 666 3803 0.119 Syringa 477 242 37×2.88 20.18 666 3932 0.119 Dahlia 556.5 282 19×4.35 21.73 777 4431 0.102 Mistletoe 556.5 282 37×3.11 21.8 777 4495 0.102 Orchid 636 322 37×3.33 23.31 888 5154 0.089 Violet 715.5 363 37×3.53 24.73 1000 5791 0.079 Nasturtium 715.5 363 61×2.75 24.76 1000 5960 0.079 Arbutus 795 403 37×3.72 26.07 1110 6303 0.071 Lilac 795 403 61×2.90 26.11 1110 6501 0.071 Anemone 874.5 443 37×3.91 27.37 1222 6821 0.065 Crocus 874.5 443 61×3.04 27.36 1222 7144 0.065 Magnolia 954 483 37×4.08 28.55 1333 7428 0.059
Company Information
Each time we receive an big order with different standards we will make a meeting about the production process in order to make sure the quality and delivery time.
We could produce most of the standards cables, such as ASTM, BS, CSA, DIN, GB and IEC Standards,etc.
Certifications
ISO9001:2008, OHSAS, CCC, TUV Certifications.
Package&Shipping:

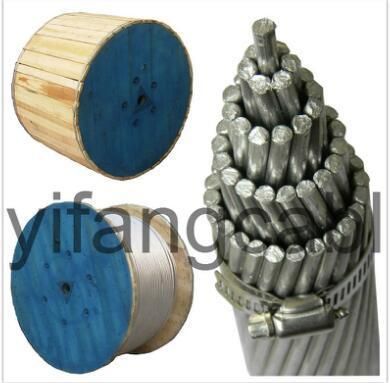

For Package: Support to pack as rolls, or with wooden drum or wooden steel drums.
Shipment terms:
By FOB, CFR or CIF by sea.
By DHL, UPS, Fedex express etc are also available.
Our Services
Luoyang Asian Sun Industrial Group Co., Ltd, a professional wires and cables manufacturer for 6 years in China. Asian Sun attends International Exhibitions every year, we mainly produce power cables, control cables, aerial overhead cables(ABC, AAC ACSR and AAAC cables) and solar pv cables etc. Standards Supported: ASTM, BS, CSA, IEC, DIN and GB etc.
1. Factory: 200,081 square meters, available for OEM;
2. Lead time: 5-7 working days after payment received;
3. Authentication: TUV, OHSAS, CCC, CQC, ISO9001:2008;
4. Payment terms: T/T, L/C, O/A;
5. Guarantee: 20 years;
6. QC inspection: Strict inspection before delivery;
After-sales Service:
1. All our cables will be tested well in production and before delivery.
2. Please contact us if any problem, we will respond within 24 hours.
Customers Visiting:
All aluminum conductor-AAC pls contact with us
