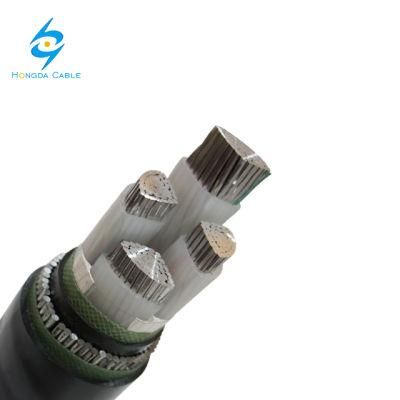

0.6/1kv 4*25mm2 Aluminum Conductor XLPE Insulated Electrical Cable
Henan Hongda Cable Co., Ltd.- Application：Underground
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Certification：ISO, CCC
- Model：YJV
- Brand：Hongda
- Color：as Customer Requirement
- Transport Package：Steel-Wooden Drum,Wooden Drum
- Specification：As customer requirement
- Trademark：HONGDA
- Origin：China
- Production Capacity：2000m,Week
Description
5 Construction
5.1 XLPE insulated Power Cables for rated voltages up to and including 0.6/1kV
Conductor shaped: RE=circular solid, CC=compacted circular stranded, SM=sector shaped stranded
Conductors: Plain circular, compacted or shaped stranded copper or aluminium conductor
Insulation: XLPE (cross-linked polyethylene) rated at 90°C

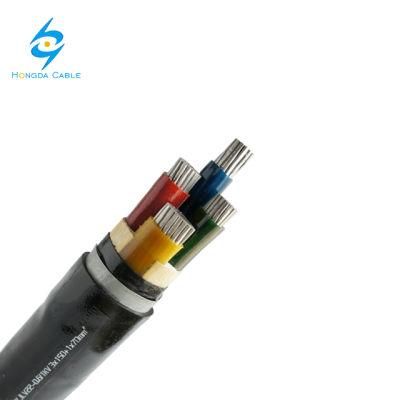

Color identification
1 Core : Red or Black, 2 Cores : Red, Black, 3 Cores: Red, Yellow, Blue
4 Cores: Red, Yellow, Blue, Black, 5 Cores: Red, Yellow, Blue, Black, Green
Above 5 Cores: Black Cores with White numerals
*The above identifying can be changed as user requirement
Assembly /Inner Sheath :Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers and the assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omitted
Armour: Aluminum/Galvanized Steel Wires, single core cables shall be Aluminium wire armour, Aluminum/Steel Tapes applied helically over the bedding of multi-core cables as per IEC 60502.
Outer Sheath:Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSZH, and CPE are available on request.
Fire Performance of Cable Sheaths
Cables can be supplied with special flame retardant PVC outer sheath to comply With the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, we can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.

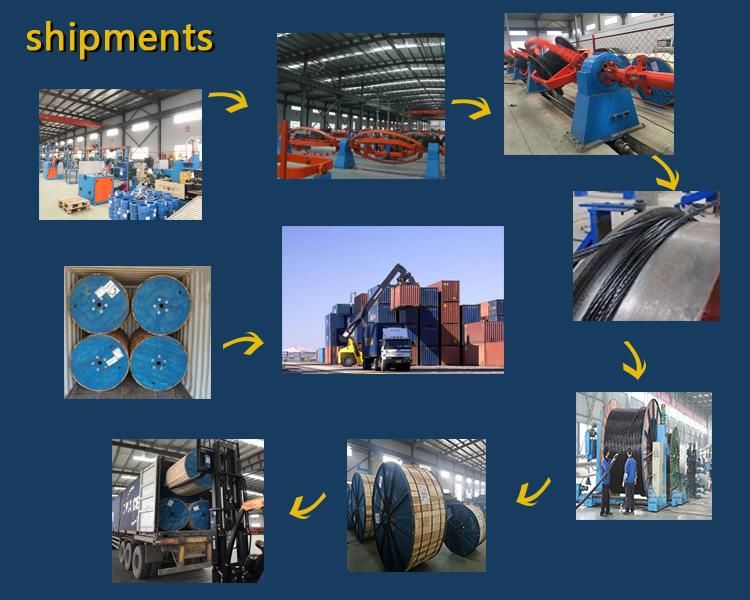

Paking & Shipping
Our service
If you come to visit the factory, you can take the train or plane to zhengzhou, we can go to zhengzhou airport or railway station to pick you up, hongda company will give you the most satisfactory service.
Inquiry Link
FAQ
1. Q: Are you the factory or the trading company?
A: We are the factory.
2. Q: How long is your guarantee Period?
A: We uaually offer 1 year guarantee for our general products.
3. Q: How can I get the samples?
A: We can make the sample order. And usually we will charge for it.
But the samples fee will be return to you when you make the bulk order.
4. Q: Where is your factory? How can we visit your factory?
A: Our factory located in Zhengzhou city, Henan Province. You could reach here by train and by air.
We can pick you up in the airport and the railway station.
5. Q; What is your MOQ?
A: It`s base on the cable type or wire type. Please contact Calder. He will let you know.
