• Model NO.：bfx series
• Material Shape：Round Wire
• Range of Application：Rubber Cables
• Certification：ISO9001, CE, CCC, SGS
• Brand：Hongda
• Colour Required：Black, Red, Blue, Yellow, Green,Yellow, White, etc
• Transport Package：100m Per Roll,Reel, or Customer Requirement
• Specification：1.5sqm to 120sqmm
• Trademark：Hongda, accept OEM
• Origin：China
• HS Code：8544492100
• Production Capacity：40km,Day

Basic Info.

Model NO. bfx series Material Shape Round Wire Range of Application Rubber Cables Certification ISO9001, CE, CCC, SGS Brand Hongda Colour Required Black, Red, Blue, Yellow, Green/Yellow, White, etc Transport Package 100m Per Roll/Reel, or Customer Requirement Specification 1.5sqm to 120sqmm Trademark Hongda, accept OEM Origin China HS Code 8544492100 Production Capacity 40km/Day

Product Description

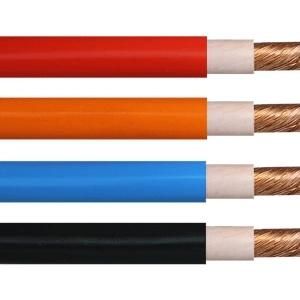

High Performance Flexible Rubber SDI Cable 0.6/1kV 110°C

APPLICATIONS:
Power Switchboards, flexible droppers from busbars, transformers, load banks or other equipment requiring fixed or flexible cable.
Pumping Suitable for permanent submersion to 500 metres.
Welding Suitable for welding and electrode leads.
Generator Sets As leads for temporary power supplies.
Automotive Battery leads or jumpers, battery chargers, electric forklifts.
Audio Amplifiers and audio equipment where oxygen free copper wire is required.
Telecommunications Where finely stranded large cross section cables are required for minimal volt drop.

PRODUCT FEATURES:
⊲ High current capacity
⊲ Flame retardant
⊲ Water and moisture resistant
⊲ Very good behaviour to variations of outdoor temperature
⊲ Suitable for permanent submersion to 500 metres
⊲ UV stabilised
⊲ Heat, oil and chemical resistant (See Technical Section)

Cable Construction

Conductor Annealed plain copper stranded extreme flexibility (Class 5 & 6).
Insulation X-HF-110.
Sheath SER105 V-90HT



Technical Characteristics

Operating Temperature Range Fixed -40°C to 110°C / Flexing -25°C to 90°C.
Maximum Conductor Temperature 110°C (Current ratings are based on 30°C air temp. See technical section for de-rating factors).
Rated Voltage Uo/U 0.6/1kV.
Max AC Operating Voltage Uo 0.7kV.
Minimum Bending Radius Fixed 4 x cable diameter / Flexing 6 x cable diameter.
Sheath Colour Orange, Black. (Red and Blue subject to availability).
Relevant Standards IEC 60332-1, AS/NZS 5000.1, AS/NZS 1125, AS/NZS 3808, AS/NZS 3008, Compliant.

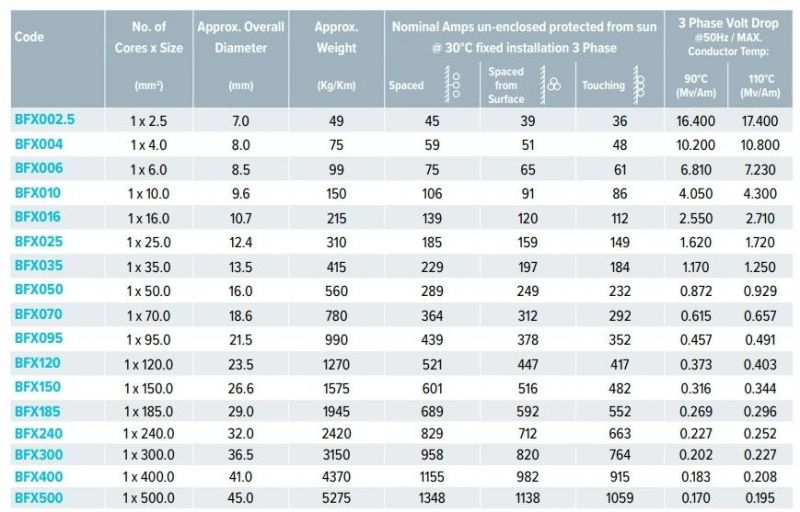

Cable Parameter
